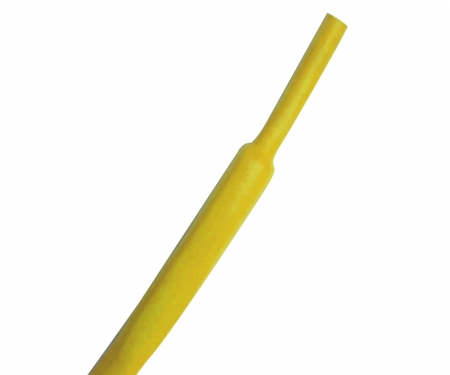

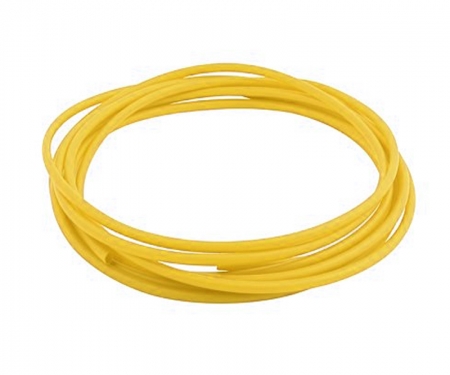

Yellow Heat Shrink Tubing - 2:1
Rated For 600V | 3/64" - 3" Diameters Available
0.0 / 5
Yellow Heat Shrink Tubing - 2:1 Features
- UL Listed, File E536025
- RoHS Compliant
- Color: Yellow
- 2:1 Shrink Ratio (shrinks to ½ of its original Diameter)
- Lengthwise Shrinkage Approximately 5-7% During Shrink Process
- 194℉ (90℃) Shrink Temperature
- -67℉ to 275℉ (-55℃ to 135℃) Operating Temperature Range
- Flame Retardant (Except Clear Color)
- High resistance To Chemicals & Oils
- Rated for 600v
Please Note: Our Diameters for Heat Shrink Tubing Are Measured As ROUND TUBE, NOT FLAT.
Durable, flexible, and flame retardant Kable Kontrol polyolefin 2:1 heat shrink tubing can be used for electrical insulation, wire bundling, color coding, lightweight harnessing, wire strain relief, and wire identification purposes in a variety of home, commercial, industrial and military applications. Kable Kontrol 2:1 heat shrink tubing slides easily over small inline splices and connectors, and shrink down to 50% of its original diameter to fit snugly over any wire, hose or cable management project. Also, polyolefin heat shrink tubing is the ideal way to terminate the ends of your Braided Sleeving, creating a tight, professional finish. Self-extinguishing heat shrink tubing is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances. This thin wall, 2:1 heat shrink tubing is made from a specially formulated, cross-linked polyolefin. Order heat shrink tubing rolls in your choice of length diameter and color.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Expanded | Recovered | |||||||
| SKU # | Mil Spec # | Nominal | Inside Diameter | Inside Diameter | Minimum Wall Thickness | |||
| AMS-DTL- 23053/5- | Size | in | mm | in | mm | in | mm | |
| HS351-S100 | 101 and 301 | 3/64" | 0.046 | 1.2 | 0.023 | 0.58 | 0.018 | 0.45 |
| HS352, HS352-S100, HS352-S500 | 102 and 302 | 1/16" | 0.063 | 1.6 | 0.031 | 0.79 | 0.018 | 0.45 |
| HS354, HS354-S100, HS354-S500 | 103 and 303 | 3/32" | 0.093 | 2.4 | 0.046 | 1.17 | 0.019 | 0.50 |
| HS355, HS355-S100, HS355-S500 | 104 and 304 | 1/8" | 0.125 | 3.2 | 0.062 | 1.57 | 0.019 | 0.50 |
| HS357, HS357-S100, HS357-S250 | 105 and 305 | 3/16" | 0.187 | 4.8 | 0.093 | 2.36 | 0.019 | 0.50 |
| HS359, HS359-S100, HS359-S250 | 106 and 306 | 1/4" | 0.250 | 6.4 | 0.125 | 3.18 | 0.026 | 0.65 |
| HS363, HS363-S100, HS363-S200 | 107 and 307 | 3/8" | 0.375 | 9.5 | 0.187 | 4.75 | 0.026 | 0.65 |
| HS364, HS364-S100, HS364-S200 | 108 and 308 | 1/2" | 0.5 | 12.7 | 0.25 | 6.35 | 0.029 | 0.75 |
| HS365, HS365-S100 | 109 and 309 | 3/4" | 0.75 | 19.1 | 0.37 | 9.35 | 0.035 | 0.90 |
| HS367, HS367-S100 | 110 and 310 | 1" | 1.00 | 25.4 | 0.5 | 12.7 | 0.039 | 1.00 |
| HS368-S100 | N/A | 1-1/4" | 1.26 | 32.2 | 0.63 | 16 | 0.039 | 1.00 |
| HS369, HS369-S100 | 111 and 311 | 1-1/2" | 1.50 | 38.1 | 0.75 | 19 | 0.039 | 1.00 |
| HS397-S100 | 112 and 312 | 2" | 2 | 50.8 | 1 | 25.4 | 0.045 | 1.15 |
| HS398, HS398-S100 | 113 and 313 | 3" | 3 | 76.2 | 1.5 | 38.1 | 0.049 | 1.25 |
10 Foot and 25 Foot Custom Cut Lengths Are (FINAL SALE) Non-Returnable & Non-Cancellable Once Your Order Has Been Picked.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Please Note: Our Diameters for Heat Shrink Tubing Are Measured As ROUND TUBE, NOT FLAT.
Durable, flexible, and flame retardant Kable Kontrol polyolefin 2:1 heat shrink tubing can be used for electrical insulation, wire bundling, color coding, lightweight harnessing, wire strain relief, and wire identification purposes in a variety of home, commercial, industrial and military applications. Kable Kontrol 2:1 heat shrink tubing slides easily over small inline splices and connectors, and shrink down to 50% of its original diameter to fit snugly over any wire, hose or cable management project. Also, polyolefin heat shrink tubing is the ideal way to terminate the ends of your Braided Sleeving, creating a tight, professional finish. Self-extinguishing heat shrink tubing is in compliance with RoHS, the European directive on the Restriction of Hazardous Substances. This thin wall, 2:1 heat shrink tubing is made from a specially formulated, cross-linked polyolefin. Order heat shrink tubing rolls in your choice of length diameter and color.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Expanded | Recovered | |||||||
| SKU # | Mil Spec # | Nominal | Inside Diameter | Inside Diameter | Minimum Wall Thickness | |||
| AMS-DTL- 23053/5- | Size | in | mm | in | mm | in | mm | |
| HS351-S100 | 101 and 301 | 3/64" | 0.046 | 1.2 | 0.023 | 0.58 | 0.018 | 0.45 |
| HS352, HS352-S100, HS352-S500 | 102 and 302 | 1/16" | 0.063 | 1.6 | 0.031 | 0.79 | 0.018 | 0.45 |
| HS354, HS354-S100, HS354-S500 | 103 and 303 | 3/32" | 0.093 | 2.4 | 0.046 | 1.17 | 0.019 | 0.50 |
| HS355, HS355-S100, HS355-S500 | 104 and 304 | 1/8" | 0.125 | 3.2 | 0.062 | 1.57 | 0.019 | 0.50 |
| HS357, HS357-S100, HS357-S250 | 105 and 305 | 3/16" | 0.187 | 4.8 | 0.093 | 2.36 | 0.019 | 0.50 |
| HS359, HS359-S100, HS359-S250 | 106 and 306 | 1/4" | 0.250 | 6.4 | 0.125 | 3.18 | 0.026 | 0.65 |
| HS363, HS363-S100, HS363-S200 | 107 and 307 | 3/8" | 0.375 | 9.5 | 0.187 | 4.75 | 0.026 | 0.65 |
| HS364, HS364-S100, HS364-S200 | 108 and 308 | 1/2" | 0.5 | 12.7 | 0.25 | 6.35 | 0.029 | 0.75 |
| HS365, HS365-S100 | 109 and 309 | 3/4" | 0.75 | 19.1 | 0.37 | 9.35 | 0.035 | 0.90 |
| HS367, HS367-S100 | 110 and 310 | 1" | 1.00 | 25.4 | 0.5 | 12.7 | 0.039 | 1.00 |
| HS368-S100 | N/A | 1-1/4" | 1.26 | 32.2 | 0.63 | 16 | 0.039 | 1.00 |
| HS369, HS369-S100 | 111 and 311 | 1-1/2" | 1.50 | 38.1 | 0.75 | 19 | 0.039 | 1.00 |
| HS397-S100 | 112 and 312 | 2" | 2 | 50.8 | 1 | 25.4 | 0.045 | 1.15 |
| HS398, HS398-S100 | 113 and 313 | 3" | 3 | 76.2 | 1.5 | 38.1 | 0.049 | 1.25 |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Videos
10 Foot and 25 Foot Custom Cut Lengths Are (FINAL SALE) Non-Returnable & Non-Cancellable Once Your Order Has Been Picked.
