Ultratech® Curb Guard Inserts
Keep oil, sediment, & debris out of curb inlets & stormwater systems
0.0 / 5
Ultratech® Curb Guard Inserts Features
- For use in drains with curb inlets only.
- Two heavy-duty tension rods keep unit secured inside inlet for a clean, flush-mounted installation.
- X-Tex filtering material is quickly and easily replaced.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Keep sediment, oil, silt, and debris out of curb inlets and stormwater systems
Because of the heavy-duty tension rods used with the Ultra-Curb Guard, Insert Style, the unit has the lowest / least obtrusive profile of any of UltraTech curb inlet protection products. The rods allow the unit to be flush mounted eliminating any tripping hazards or components that could possibly interfere with street sweepers or other maintenance.
X-Tex material is used to quickly and efficiently remove pollutants from passing stormwater.
Ultratech® Curb Guard Inserts keep sediment, oil, silt, and debris out of curb inlets and stormwater systems.
The heavy-duty tension rods used with the Ultra-Curb Guard Inserts allow for the least obtrusive profile of any UltraTech curb inlet protection products. The rods allow the unit to be flush mounted eliminating any tripping hazards or components that could possibly interfere with street sweepers or other maintenance.
X-Tex material is used to quickly and efficiently remove pollutants from passing stormwater.
Product Highlights
- For use in drains with curb inlets only.
- Two heavy-duty tension rods keep unit secured inside inlet for a clean, flush-mounted installation.
- X-Tex filtering material is quickly and easily replaced.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Model | Dimensions in. (mm) | Absorption Capacity gal. (L) |
|---|---|---|---|
| UT-9760 | Insert-Style | For Curb Inlets 22-35 (559 x 889) | 1 (3.785) |
| UT-9761 | Insert-Style | For Curb Inlets 36-60 (915 x 1524) | 1.6 (6.056) |

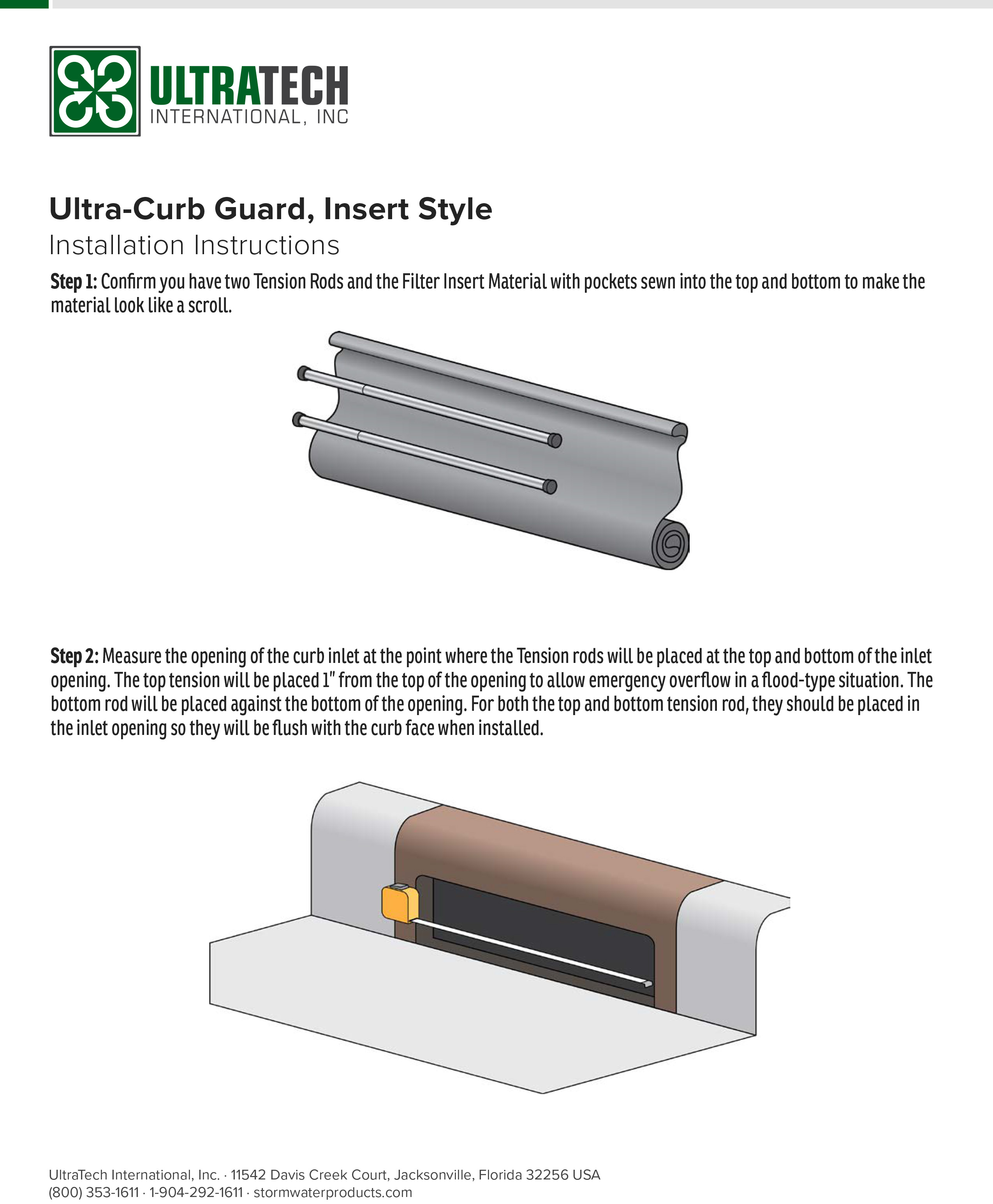

Click the image below to view the full instructions document.
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I choose the Ultra-Curb Guard Insert Style instead of another product?
One advantage is that the Curb Guard, Insert Style is it has the lowest profile of any of the stormwater products designed for a curb inlet. In other words, it extends out into the street less than any other product. This is beneficial for pedestrian safety as well and will prevent the unit from being damaged by street sweepers.
Another advantage is the Curb Guard's ability to remove hydrocarbons (oil, grease, fuel, etc) from the stormwater flow. It is the ONLY curb inlet product that has that ability (an argument could be made for the Ultra-Filter Socks but that's a different type of product).
Why do you use X-Tex for this product?
X-Tex removes oil and other hydrocarbons much faster than traditional absorbents. A polypropylene sorbent material will not allow water to freely pass through it. Oil will absorb at the surface of a polypropylene absorbent, and the polypropylene will eventually blind over and the center will not absorb any oil.
How much oil can the Ultra-Curb Guard, Insert Style absorb?
Part# 9760 can absorb up to 1.0 gallon of hydrocarbons (oil, grease, fuel, etc) and Part# 9761 can absorb up to 1.6 gallons.
How do I know if the Ultra-Curb Guard, Insert Style is saturated and needs to be replaced?
You can tell if the Curb Guard is saturated by simply pinching it in a few locations and noting if any oil or oily water is produced.
Do I have to replace the entire unit or can I just replace the X-Tex filtering material?
The entire unit does not need to be replaced. Replacement filter material is available in 4-packs.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Ultratech® Curb Guard Inserts keep sediment, oil, silt, and debris out of curb inlets and stormwater systems.
The heavy-duty tension rods used with the Ultra-Curb Guard Inserts allow for the least obtrusive profile of any UltraTech curb inlet protection products. The rods allow the unit to be flush mounted eliminating any tripping hazards or components that could possibly interfere with street sweepers or other maintenance.
X-Tex material is used to quickly and efficiently remove pollutants from passing stormwater.
Product Highlights
- For use in drains with curb inlets only.
- Two heavy-duty tension rods keep unit secured inside inlet for a clean, flush-mounted installation.
- X-Tex filtering material is quickly and easily replaced.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Model | Dimensions in. (mm) | Absorption Capacity gal. (L) |
|---|---|---|---|
| UT-9760 | Insert-Style | For Curb Inlets 22-35 (559 x 889) | 1 (3.785) |
| UT-9761 | Insert-Style | For Curb Inlets 36-60 (915 x 1524) | 1.6 (6.056) |
Click the image below to view the full instructions document.
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I choose the Ultra-Curb Guard Insert Style instead of another product?
One advantage is that the Curb Guard, Insert Style is it has the lowest profile of any of the stormwater products designed for a curb inlet. In other words, it extends out into the street less than any other product. This is beneficial for pedestrian safety as well and will prevent the unit from being damaged by street sweepers.
Another advantage is the Curb Guard's ability to remove hydrocarbons (oil, grease, fuel, etc) from the stormwater flow. It is the ONLY curb inlet product that has that ability (an argument could be made for the Ultra-Filter Socks but that's a different type of product).
Why do you use X-Tex for this product?
X-Tex removes oil and other hydrocarbons much faster than traditional absorbents. A polypropylene sorbent material will not allow water to freely pass through it. Oil will absorb at the surface of a polypropylene absorbent, and the polypropylene will eventually blind over and the center will not absorb any oil.
How much oil can the Ultra-Curb Guard, Insert Style absorb?
Part# 9760 can absorb up to 1.0 gallon of hydrocarbons (oil, grease, fuel, etc) and Part# 9761 can absorb up to 1.6 gallons.
How do I know if the Ultra-Curb Guard, Insert Style is saturated and needs to be replaced?
You can tell if the Curb Guard is saturated by simply pinching it in a few locations and noting if any oil or oily water is produced.
Do I have to replace the entire unit or can I just replace the X-Tex filtering material?
The entire unit does not need to be replaced. Replacement filter material is available in 4-packs.
