Ultratech® Curb Guard Plus Inserts
Protect curb inlets from sediment-laden stormwater runoff
0.0 / 5
Ultratech® Curb Guard Plus Inserts Features
-
Quick and easy installation.
-
Modular design-build to any length.
-
Units can be quickly and easily connected to form longer lengths.
-
Wedge-shaped, heavy-duty foam secures unit in curb inlet.
-
Woven, polypropylene material provides a high flow rate — will not cause ponding or flooding.
-
Compliance: Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.
Protect curb inlets from sediment-laden stormwater runoff
Streetside curb inlets can see a lot of stormwater. So any product designed to filter the water coming into one needs two important features: (1) the ability to handle large volumes of water and (2) the ability to stay in place when #1 happens. We designed the Ultra-Curb Guard Plus to withstand the substantial amount of rainwater that curb inlets often receive. The heavy-duty foam inserts wedge securely into the inlet ensuring the unit stays in place. The polypropylene material and engineered design of the product allow it to filter large amounts of water without ponding or flooding.

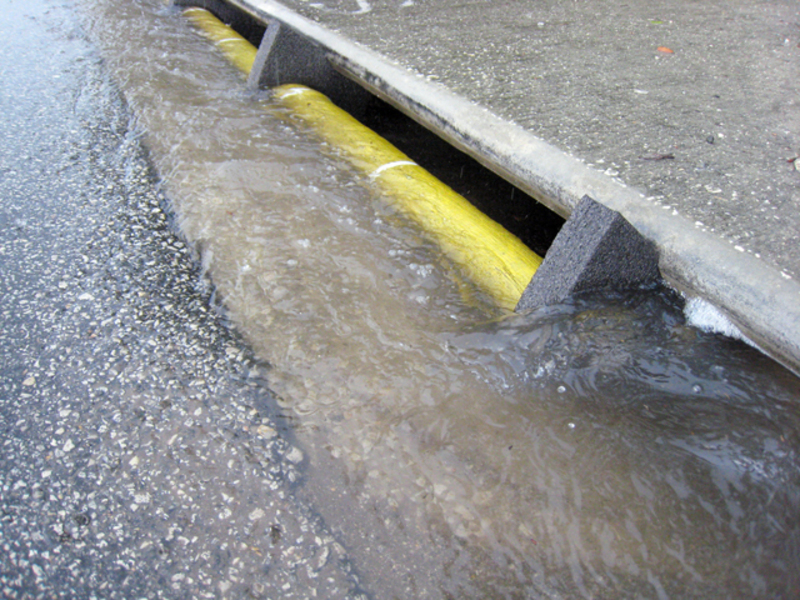

Ultratech® Curb Guard Plus Inserts protect curb inlets from sediment-laden stormwater runoff.
Streetside curb inlets can see a lot of stormwater. So any product designed to filter the water coming into one needs two important features: (1) the ability to handle large volumes of water and (2) the ability to stay in place when #1 happens. The Ultra-Curb Guard Plus is designed to withstand the substantial amount of rainwater that curb inlets often receive. The heavy-duty foam inserts wedge securely into the inlet ensuring the unit stays in place. The polypropylene material and engineered design of the product allow it to filter large amounts of water without ponding or flooding. Check the video tab for a video explanation of the Curb Guard Plus Insert.
Features
-
Quick and easy installation.
-
Modular design-build to any length.
-
Units can be quickly and easily connected to form longer lengths.
-
Wedge-shaped, heavy-duty foam secures unit in curb inlet.
-
Woven, polypropylene material provides a high flow rate — will not cause ponding or flooding.
-
Compliance: Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|
| 9248 | 36 x 4 x 4 (914.4 x 101.6 x 101.6) | 6 (2.7) |
| 9251 | 48 x 10 x 10 (1219.2 x 254 x 254) | 8 (3.6) |

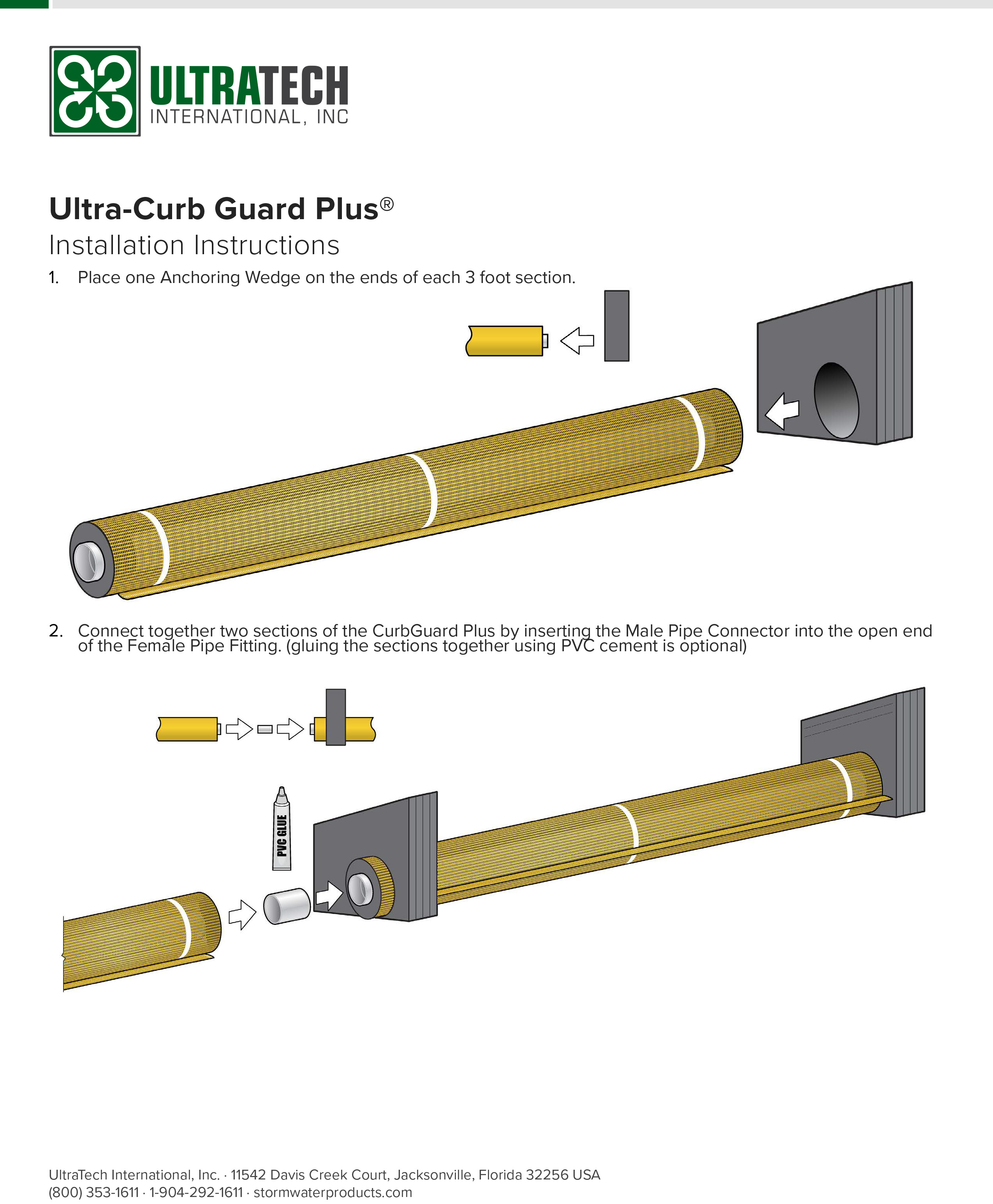

Click the image below to view the full set of instructions.
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
What is the flow rate of the Ultra-Curb Guard Plus?
The flow rate, when new is 456 GPM.
There's a lot of different sized curb inlets. How do I know that the Curb Guard Plus will fit mine?
We offer two lengths for that reason. Part# 9248 is 36" long and part# 9251 is 48" long. In addition to the two lengths, the units can also be cut so that you can have a "custom fit". The foam wedges that are used to keep the unit secured have some give so that they'll fit a range of heights. If necessary, they are also perforated so that small sections can be cleanly torn off to allow a good fit in smaller inlets.
Does the Ultra-Curb Guard Plus have oil/gas removal capabilities like some of your other stormwater management products?
Our current offering is for removal of sediment, trash, and debris only and does not have a filtering mechanism for oil or other hydrocarbons.
What are the advantages of the Ultra-Curb Guard Plus over similar products?
In order for a product like this to work effectively, it needs to stay in place. You don't have to look very far to see other filtering products that have been washed away or pushed aside by the rainwater it is supposed to be filtering. The Curb Guard's foam inserts do an outstanding job of keeping it in place, even in the heaviest storms.
Compared to other solutions (gravel bags, rolls of material, perforated PVC piping, etc.) the Ultra-Curb Guard Plus has a fairly low profile and is less likely to be damaged by street sweepers, traffic, etc. It's also a much cleaner looking install.
How many can I get on a pallet? What's the other shipping information I should know?
We can ship up to (30) of the 36" (p/n 9248) or 48" (p/n 9251) units on a single, standard pallet. The shipping weight per unit for the 36" unit is 6 lbs. (2.72 kg). The 48" unit is 8 lbs. (3.6 kg). Freight class is 77.5.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Ultratech® Curb Guard Plus Inserts protect curb inlets from sediment-laden stormwater runoff.
Streetside curb inlets can see a lot of stormwater. So any product designed to filter the water coming into one needs two important features: (1) the ability to handle large volumes of water and (2) the ability to stay in place when #1 happens. The Ultra-Curb Guard Plus is designed to withstand the substantial amount of rainwater that curb inlets often receive. The heavy-duty foam inserts wedge securely into the inlet ensuring the unit stays in place. The polypropylene material and engineered design of the product allow it to filter large amounts of water without ponding or flooding. Check the video tab for a video explanation of the Curb Guard Plus Insert.
Features
-
Quick and easy installation.
-
Modular design-build to any length.
-
Units can be quickly and easily connected to form longer lengths.
-
Wedge-shaped, heavy-duty foam secures unit in curb inlet.
-
Woven, polypropylene material provides a high flow rate — will not cause ponding or flooding.
-
Compliance: Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|
| 9248 | 36 x 4 x 4 (914.4 x 101.6 x 101.6) | 6 (2.7) |
| 9251 | 48 x 10 x 10 (1219.2 x 254 x 254) | 8 (3.6) |
Click the image below to view the full set of instructions.
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
What is the flow rate of the Ultra-Curb Guard Plus?
The flow rate, when new is 456 GPM.
There's a lot of different sized curb inlets. How do I know that the Curb Guard Plus will fit mine?
We offer two lengths for that reason. Part# 9248 is 36" long and part# 9251 is 48" long. In addition to the two lengths, the units can also be cut so that you can have a "custom fit". The foam wedges that are used to keep the unit secured have some give so that they'll fit a range of heights. If necessary, they are also perforated so that small sections can be cleanly torn off to allow a good fit in smaller inlets.
Does the Ultra-Curb Guard Plus have oil/gas removal capabilities like some of your other stormwater management products?
Our current offering is for removal of sediment, trash, and debris only and does not have a filtering mechanism for oil or other hydrocarbons.
What are the advantages of the Ultra-Curb Guard Plus over similar products?
In order for a product like this to work effectively, it needs to stay in place. You don't have to look very far to see other filtering products that have been washed away or pushed aside by the rainwater it is supposed to be filtering. The Curb Guard's foam inserts do an outstanding job of keeping it in place, even in the heaviest storms.
Compared to other solutions (gravel bags, rolls of material, perforated PVC piping, etc.) the Ultra-Curb Guard Plus has a fairly low profile and is less likely to be damaged by street sweepers, traffic, etc. It's also a much cleaner looking install.
How many can I get on a pallet? What's the other shipping information I should know?
We can ship up to (30) of the 36" (p/n 9248) or 48" (p/n 9251) units on a single, standard pallet. The shipping weight per unit for the 36" unit is 6 lbs. (2.72 kg). The 48" unit is 8 lbs. (3.6 kg). Freight class is 77.5.
