Ultratech® Gutter Guards Plus
Guard high flow curb inlets from silt, sediment, & other contaminants
0.0 / 5
Ultratech® Gutter Guards Plus Features
- Modular, 3-foot, inner frames allow for compact transport and storage.
- Counterweight inserts into the inlet to keep unit upright and secure. An optional 7 lb. weight available is available - rebar, gravel or other material can also be used.
- Tie-back straps on either end of the unit can be used with sod pin or stake for additional anchoring.
- Can be easily cleaned and reused.
- Sizing note: When ordering allow 12" overlap on each side of curb inlet.
- Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.
Guard high and protect flow curb inlets from silt, sediment, and other contaminants. The Ultra-Gutter Guard Plus is designed for curb inlets with high-flow volumes. Its unique, multi-dimensional outer filter combined with a rigid inner frame and support counterweight prevents debris and silt from clogging inlets while keeping the unit upright and secure.
Guard high and protect gutter curb inlets from flowing silt, sediment, and other contaminants. The Ultra-Gutter Guard Plus is designed for curb inlets with high-flow volumes. Its unique, multi-dimensional outer filter combined with a rigid inner frame and support counterweight prevents debris and silt from clogging inlets while keeping the unit upright and secure.
- Modular, 3-foot, inner frames allow for compact transport and storage.
- Counterweight inserts into the inlet to keep unit upright and secure. An optional 7 lb. weight available is available - rebar, gravel or other material can also be used.
- Tie-back straps on either end of the unit can be used with sod pin or stake for additional anchoring.
- Can be easily cleaned and reused.
- Sizing note: When ordering allow 12" overlap on each side of curb inlet.
- Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) | Notes |
|---|---|---|---|---|
| 9151 | Ultra-Gutter Guard Plus | 72 x 2 x 0 (1828.8 x 50.8 x 0) | 10 (4.5) | Counterweight not included |
| 9158 | Ultra-Gutter Guard Plus | 108 x 2 x 0 (2743.2 x 50.8 x 0) | 13 (5.9) | Counterweight not included |
| 9154 | Ultra-Gutter Guard Plus | 144 x 2 x 0 (3657.6 x 50.8 x 0) | 16 (7.3) | Counterweight not included |
| 9159 | Ultra-Gutter Guard Plus | 180 x 2 x 0 (4572 x 50.8 x 0) | 20 (9.1) | Counterweight not included |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I use the Ultra-Gutter Guard Plus instead of one of your other stormwater management products?
The Gutter Guard Plus has a low-profile so it can protect curb inlets without being too obtrusive. This is beneficial where pedestrian traffic is frequent to reduce tripping hazards. The lower profile is also less likely to be damaged by street sweepers or other machinery.
Why WOULDN'T I use the Ultra- Gutter Guard Plus instead of one of your other stormwater management products?
Compared to some of UltraTech's other curb inlet products, the Gutter Guard Plus will take more time and effort to install. If there are many inlets in your project, this additional time could become significant. Additionally, the Gutter Guard Plus is designed to remove only sediment, dirt, silt and debris. It is not designed to remove other pollutants like hydrocarbons or heavy metals.

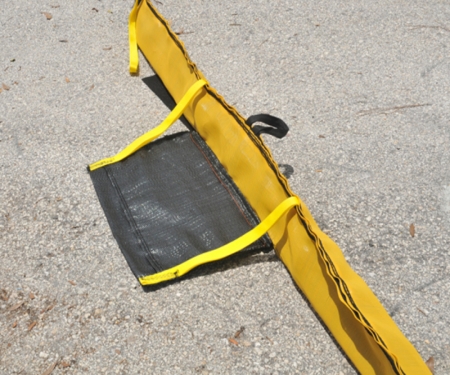

What's the deal with the pouch in the back of the Gutter Guard Plus?
That pouch is designed to provide a counterweight to the unit and will help to keep the Gutter Guard Plus upright/vertical. By using the optional seven pound counterweight (Part# 9148) or filling the pouch with rocks, gravel or other aggregate, the weight of the pouch will help pull the entire unit back toward the opening of the inlet.

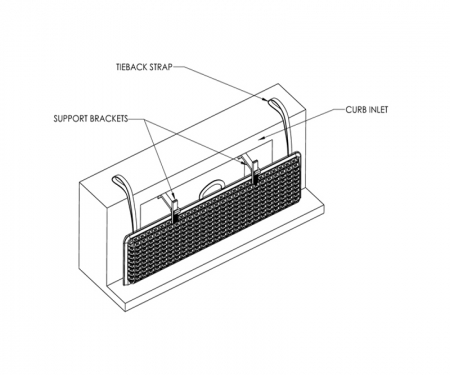

What are the straps on either side of the Gutter Guard Plus used for?
Those straps can be used to stake the unit down. Similar to the counterweight pouch (see above), the straps are used to help keep the unit upright/vertical.
How do I install and Ultra-Gutter Guard Plus?
The installation instructions will help explain the process. But basically, you assemble the frames that provide the internal support/structure and then place the frame inside of the polypropylene sleeve. Secure it using the counterweight pouch and/or the tie-down straps and you're good to go.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Guard high and protect gutter curb inlets from flowing silt, sediment, and other contaminants. The Ultra-Gutter Guard Plus is designed for curb inlets with high-flow volumes. Its unique, multi-dimensional outer filter combined with a rigid inner frame and support counterweight prevents debris and silt from clogging inlets while keeping the unit upright and secure.
- Modular, 3-foot, inner frames allow for compact transport and storage.
- Counterweight inserts into the inlet to keep unit upright and secure. An optional 7 lb. weight available is available - rebar, gravel or other material can also be used.
- Tie-back straps on either end of the unit can be used with sod pin or stake for additional anchoring.
- Can be easily cleaned and reused.
- Sizing note: When ordering allow 12" overlap on each side of curb inlet.
- Helps comply with NPDES, 40 CFR 122.26 (1999), and TMDL requirements.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) | Notes |
|---|---|---|---|---|
| 9151 | Ultra-Gutter Guard Plus | 72 x 2 x 0 (1828.8 x 50.8 x 0) | 10 (4.5) | Counterweight not included |
| 9158 | Ultra-Gutter Guard Plus | 108 x 2 x 0 (2743.2 x 50.8 x 0) | 13 (5.9) | Counterweight not included |
| 9154 | Ultra-Gutter Guard Plus | 144 x 2 x 0 (3657.6 x 50.8 x 0) | 16 (7.3) | Counterweight not included |
| 9159 | Ultra-Gutter Guard Plus | 180 x 2 x 0 (4572 x 50.8 x 0) | 20 (9.1) | Counterweight not included |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I use the Ultra-Gutter Guard Plus instead of one of your other stormwater management products?
The Gutter Guard Plus has a low-profile so it can protect curb inlets without being too obtrusive. This is beneficial where pedestrian traffic is frequent to reduce tripping hazards. The lower profile is also less likely to be damaged by street sweepers or other machinery.
Why WOULDN'T I use the Ultra- Gutter Guard Plus instead of one of your other stormwater management products?
Compared to some of UltraTech's other curb inlet products, the Gutter Guard Plus will take more time and effort to install. If there are many inlets in your project, this additional time could become significant. Additionally, the Gutter Guard Plus is designed to remove only sediment, dirt, silt and debris. It is not designed to remove other pollutants like hydrocarbons or heavy metals.
What's the deal with the pouch in the back of the Gutter Guard Plus?
That pouch is designed to provide a counterweight to the unit and will help to keep the Gutter Guard Plus upright/vertical. By using the optional seven pound counterweight (Part# 9148) or filling the pouch with rocks, gravel or other aggregate, the weight of the pouch will help pull the entire unit back toward the opening of the inlet.
What are the straps on either side of the Gutter Guard Plus used for?
Those straps can be used to stake the unit down. Similar to the counterweight pouch (see above), the straps are used to help keep the unit upright/vertical.
How do I install and Ultra-Gutter Guard Plus?
The installation instructions will help explain the process. But basically, you assemble the frames that provide the internal support/structure and then place the frame inside of the polypropylene sleeve. Secure it using the counterweight pouch and/or the tie-down straps and you're good to go.
