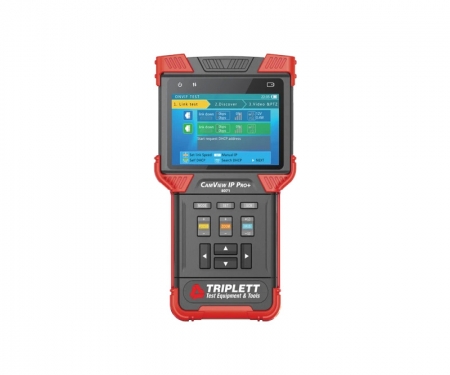

Triplett® 8071 - Camview Pro Plus IP Security Camera Tester
SD Analog NTSC/PAL, AHD, HD-TVI 2.0, IP, H.264
0.0 / 5
Triplett® 8071 - Camview Pro Plus IP Security Camera Tester Features
- IP (H.265) and Analog (AHD 2.0, HD-TVI 3.0, HD-CVI 3.0, and NTSC/PAL) security camera tester
- Provides an RS485 port for PTZ control of analog PTZ cameras
- POE for IP cameras or 12VDC to analog cameras
- Ethernet and network tests; Capture snapshots and video recordings; Generate video test patterns for monitor checking
Allows you to test, verify, and troubleshoot IP, SD and HD cameras, cables, and networks before the network or power are set up with this tester. The built-in DHCP server allows you to set and assign IP addresses to cameras and auto-detect IP settings on networks.
The IP Pro+ (8071) supports H.264 IP cameras, as well as NTSC/PAL and AHD 1.0 and HD-TVI 2.0 analog video cameras.
The IP Camera Tester allows you to perform Ethernet and network tests, capture video (snapshots and video recording), playback video, generate video test patterns for monitor checking and perform analog camera testing. They also allow you to check microphone/audio sources and even provide a bright flashlight function. Both recorded images and videos can be transferred to PCs or other devices via the USB port connection.
Product Details
| Part Number | 8070 | 8071 | 8072 | 8073 |
| ENCODING | ||||
| SD Analog | x | x | x | x |
| AHD 2.0 | x | x | x | |
| AHD 3.0 | x | |||
| HD-CVI 2.0 | x | x | ||
| HD-CVI 3.0 | x | |||
| HD-TVI 2.0 | x | x | ||
| HD-TVI 3.0 | x | |||
| IP (ONVIF only) | x | x | x | x |
| H.264 | x | x | x | x |
| H.265 | x | |||
| FEATURES | ||||
| DHCP Server | x | x | x | x |
| MJPEG | x | x | x | x |
| 12VDC Output | x | x | x | x |
| POE Output | 15W | 15W | 15W | 15W |
| TDR Testing | Ethernet only | Ethernet only | Ethernet only | Ethernet only |
| Digital Multimeter | x | |||
| RS485 PTZ | x | x | x | x |
| Digital Zoom | x | x | x | x |
| Data Monitor | x | x | x | x |
| Analog Video Generator | x | x | x | x |
| HD Video Generator | up to 1080P 30fps | |||
| Record Snapshot | x | x | x | x |
| Record Video | x | x | x | x |
| Camera Report | IP only | IP only | IP only | IP only |
| File Export | x | x | x | x |
| Keyboard | Full QWERTY | Full QWERTY | Full QWERTY | Full QWERTY |
| Flashlight | x | x | x | x |
| PHYSICAL FEATURES | ||||
| Screen | Backlit 4" 16.7M color TFT | Backlit 4" 16.7M color TFT | Backlit 4" 16.7M color TFT | Backlit 4" 16.7M color TFT |
| Resolution | 800 x 480 | 800 x 480 | 800 x 480 | 800 x 480 |
| Inputs | ||||
| BNC | x | x | x | x |
| RJ45 | x | x | x | x |
| Outputs | ||||
| BNC | x | x | x | x |
| RJ45 | x | x | x | x |
| USB | Mini | Mini | Mini | Mini |
| Dimensions | 7.5 x 4.4 x 1.5" (190 x 113 37mm) | 7.5 x 4.4 x 1.5" (190 x 113 37mm) | 7.5 x 4.4 x 1.5" (190 x 113 37mm) | 7.5 x 4.4 x 1.5" (190 x 113 37mm) |
| Weight | 3.5lbs (1.6kg) | 3.5lbs (1.6kg) | 3.5lbs (1.6kg) | 3.5lbs (1.6kg) |
