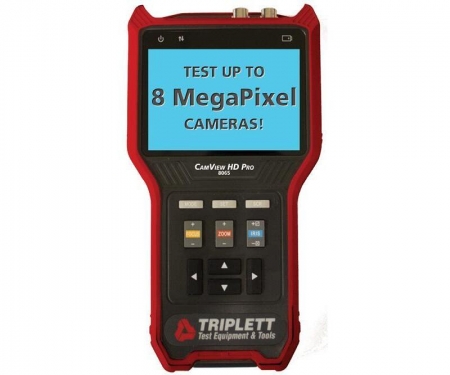

Triplett® 8065 - Camview HD Pro Ruggedized Security Camera Tester
Test SD & HD video signals | Analog/AHD 2.0/HD-TVI 3.0/HD-CVI 3.0
0.0 / 5
Triplett® 8065 - Camview HD Pro Ruggedized Camera Tester Features
-
Aids in the installation and maintenance of surveillance video equipment
- Designed for use with standard-definition analog NTSC and PAL signals, as well as HD-TVI 3.0, HD-CVI 3.0 and AHD 2.0 cameras
- RS485 port allows you to test the Pan-Tilt-Zoom (PTZ) functions of the camera and is equipped with more than 30 PTZ protocols
- Generate an SD or HD video test pattern to test cabling, video recorders, and monitors
- Provides 12 VDC of power to the analog camera
- Audio-in jack can be used to test the audio signal
- Additional functions include video capture, playback and data flow monitoring between the analog camera and the DVR system
- Built-in flashlight
- Check results and other functions on the tester's 4" screen, which offers 800 x 480 resolution
The CamView HD Pro is designed to facilitate the installation and maintenance of surveillance video equipment using Standard Definition analog NTSC/PAL, HD-TVI, HD-CVI, and AHD camera systems. The Tester has an RS485 port for testing the Pan-Tilt-Zoom (PTZ), and supports more than 30 PTZ protocols.
This tester is great for checking the functionality of security cameras and systems. The unit is capable of testing SD and HD video signals.
Product Details
With this TRIPLETT CamView HD Pro High-Definition Analog Security Camera Tester in your toolkit, you'll be able to safely and efficiently test the SD or HD signal of surveillance equipment. An RS485 port allows you to test the pan-tilt-zoom functions of the camera, and you can even generate a video test pattern to check cables, video recorders and monitors.
| Analog and HD Video Testing | |
| Video Format | Auto recognizes NTSC/PAL, HD-CVI 3.0, HD-TVI 3.0, AHD 2.0 |
| Test Pattern | Generates NTSC/PAL, HD-CVI, HD-TVI, or AHD test patterns (720P/1080P) |
| Signal Level | 1vpp |

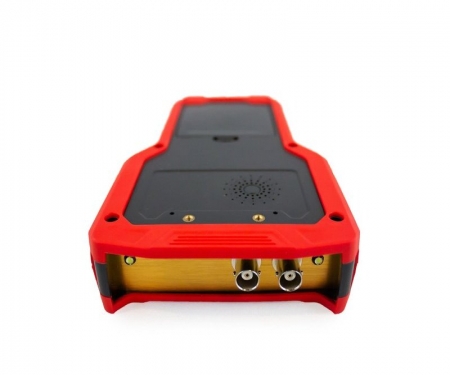

| Input/Output | Video IN BNC, Video OUT BNC |
| Digital Zoom | Supports 8-level portion view |
| Capture | Take snap shot or record video |
| POWER OUTPUT | |
| Output | 12V/1A power output to camera. Connector is 4mm diameter; pin is 1.6mm diameter |
| SYSTEM | |
| Screen | 4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight with adjustable brightness |
| Operation | Power key, 13 control keys |
| Language | User selectable -- English, French, Spanish, Russian, Chinese |
| Auto Shut-off | Disable / 5~60 minutes |
| Software | Supports online upgrade through USB using a Windows computer |
| POWER | |
| Charger | 12V/1A (5.5mm) power supply |
| Battery | Dedicated battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 10.4Wh |
| Battery runtime | Approximately 5 hours |
| Power Saving | Auto power off; Real-time battery level indicator |
| OTHER | |
| Storage | 8GB flash built in; use micro USB port to connect external device |
| LED Light | (2) 35lm LED lights |
| Dimensions | 6.9 x 4.4 x 1.5" (175 x 113 x 37mm) |
| Weight | 3.5lbs (1.6kg) |
