Techflex® ThermaShield® Heat Shielding Tape
EMI / RD Shielding & High Temp Tape
0.0 / 5
Techflex® Thermashield Tape Features
- Max Continuous Operating Temp of 392°F
- Easy to Install
- 1 mil Thick Aluminum Foil Radiant Heat Shield Protection

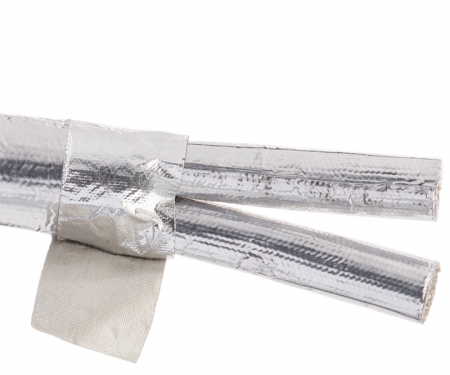

Techflex Thermashield Tape is a high temperature and EMI/RD shielding tape that exhibits outstanding heat reflectivity and thermal stability at extremely high temperatures for short periods of time. This high temperature shielding tape is constructed of 1 mil aluminum foil, laminated on 2 mil glass cloth with silicone adhesive. Backing retains physical properties even after thermal degradation of the silicone adhesive into an insulating layer of silica. It can be used as a radiant heat shield for the protection of electrical control wiring, power cables, and other heat-sensitive devices.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Product Sizes
| Size | Part Number | Wall Thickness Max | Bulk Spool | Lbs / Roll |
|---|---|---|---|---|
| 1" | TST1.00SV | .068" | 108' | 0.500 |
| 1 1/2" | TST1.50SV | .068" | 108' | 0.750 |
| 2" | TST2.00SV | .068" | 108' | 1.060 |
| 3" | TST3.00SV | .068" | 108' | 1.590 |
| 4" | TST4.00SV | .068" | 108' | 2.120 |
| 6" | TST6.00SV | .068" | 108' | 3.180 |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Techflex Thermashield Tape is a high temperature and EMI/RD shielding tape that exhibits outstanding heat reflectivity and thermal stability at extremely high temperatures for short periods of time. This high temperature shielding tape is constructed of 1 mil aluminum foil, laminated on 2 mil glass cloth with silicone adhesive. Backing retains physical properties even after thermal degradation of the silicone adhesive into an insulating layer of silica. It can be used as a radiant heat shield for the protection of electrical control wiring, power cables, and other heat-sensitive devices.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Product Sizes
| Size | Part Number | Wall Thickness Max | Bulk Spool | Lbs / Roll |
|---|---|---|---|---|
| 1" | TST1.00SV | .068" | 108' | 0.500 |
| 1 1/2" | TST1.50SV | .068" | 108' | 0.750 |
| 2" | TST2.00SV | .068" | 108' | 1.060 |
| 3" | TST3.00SV | .068" | 108' | 1.590 |
| 4" | TST4.00SV | .068" | 108' | 2.120 |
| 6" | TST6.00SV | .068" | 108' | 3.180 |
