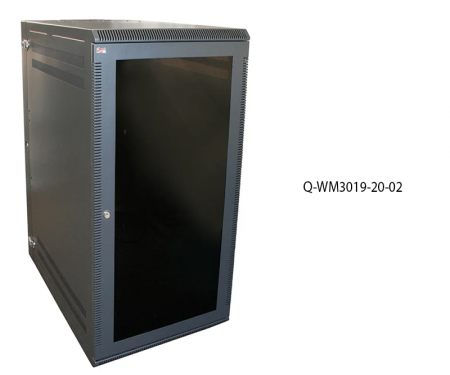

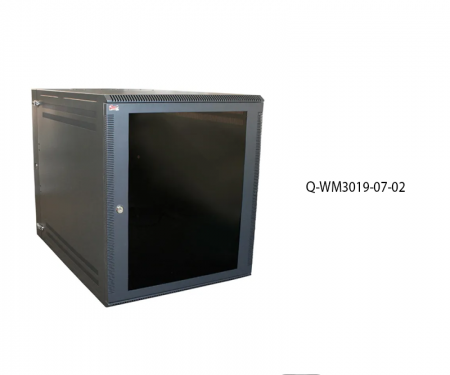

Quest® Wall Mount Swing Out Cabinets
Seven Sizes From 7U To 28U - Front & Rear Door
0.0 / 5
Quest® Wall Mount Swing Out Cabinets Features
- Vented Side Panels For Fast Access

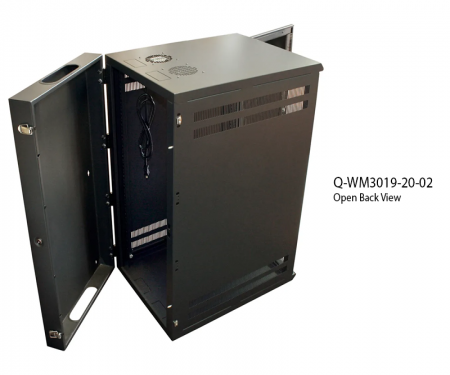

- Hinged Swing Out Design With Easy Wire Access Through Top & Bottom Cutouts
- Includes 1 Pre-Installed 80CFM 110V Fan for Ventilation Plus a Set of Cage Nut Rails
- 1 Set of Pre-mounted Key Lock (2 Keys per Set)

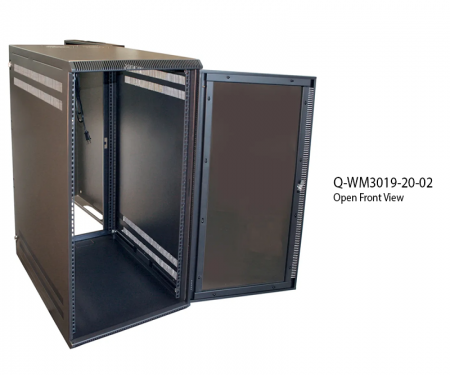

- With Reversible Smoked Acrylic Front Door That Can be Opened Left or Right
- Comes With Equipped Front Mount Rails
- Made With Cold Rolled 18AWG Steel
- Compliance With EIA-310D Standards
- Available Now in 7 Different Sizes
Quest 300 Series Wall Mount Enclosures are our best-selling wall mount enclosures. They provide equipment access through the smoked acrylic reversible front door, as well as through a locking swing-out rear access. They come with front cage nut rails, are available in seven sizes, and come in a black powder coat microfinish.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Rack Units | Rack Internal Dimensions | Rack External Dimensions | Overall Weight |
| 7U | 12.5″H x 19″W x 17″D | 15″H x 20.5″W x 23.5″D | 46.7 lbs |
| 9U | 16″H x 19″W x 17″D | 18.5″H x 20.5″W x 23.5″D | 49.3 lbs |
| 11U | 19.5″H x 19″W x 17″D | 22″H x 20.5″W x 23.5″D | 53 lbs |
| 14U | 24.5″H x 19″W x 17″D | 27″H x 20.5″W x 23.5″D | 64 lbs |
| 16U | 28″H x 19″W x 17″D | 30.5″H x 20.5″W x 23.5″D | 70 lbs |
| 20U | 37.5″H x 20.5″W x 30.5″D | 37.5″H x 20.5″W x 30.5″D | 94.2 lbs |
| 28U | 49″H x 19″W x 24″D | 51.5″H x 20.5″W x 30.5″D | 126.2 lbs |
| Rack Size Width External (Internal) | 20.5" (19") |
| Rack Size Depth External (Internal) | 5U-16U: 23.5" (17") 20U-28U: 30.5" (24") |
| Mounting Format (Internal) | 19" |
| Weight (Lbs.) | 130 |
| Reversible Front Locking Door | Smoked Acrylic |
| Vented Side Panels | Fixed |
| Hinged Swing Out Design | Yes |
| Reinforced Door Frame | Yes |
| Cage Nut Rails | Front |
| Cage Nuts, Screws & Washers | 12 |
| Key Lock Set (2 Keys per Set) | 1 Set |
| Cable Access | Top:Cutouts Bottom:Cutouts |
| Structure & Fabrication | 18AWG Steel |
| Electrostatic Powdercoat MicroFinish | Black (-02) Ivory (-01) |
| Preinstalled 80CFM 110V Fans | 1 |
| Compliance | EIA-310D |
| Delivery Style | Assembled |
