Ultratech® Stormwater Grate Guard
Stop sediment, oil, silt, debris from enter our waterways
0.0 / 5
Ultratech® Stormwater Grate Guard Features
- For use with flat grate catch basins.
- Allows run-off to flow through while blocking sediment and/or capturing oil.
- Standard and custom sizes available.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Catch sediment, oil, silt, debris, and other runoff before they enter our waterways! Stormwater products that install under the catch basin's grating are nice from an aesthetic standpoint. But in some applications, the function is more important than form. In other words, looks aren't the primary concern, it just needs to work well. The Ultra-Grate Guard slides on to the storm drain's grate and uses heavy-duty hook and loop fasteners to keep it closed. Once installed, sediment, dirt, silt, and other pollutants are easily removed with a broom, flat shovel, or similar tool. No need to remove the grating. Everything has been kept at the street level. This can be especially valuable on construction sites and other areas with large amounts of pollutants.
Ultratech® Stormwater Grate Guards can catch sediment, oil, silt, debris, and other runoff before they enter waterways! Stormwater products that install under the catch basin's grating are nice from an aesthetic standpoint. But in some applications, the function is more important than form. In other words, looks aren't the primary concern, it just needs to work well. The Ultra-Grate Guard slides on to the storm drain's grate and uses heavy-duty hook and loop fasteners to keep it closed. Once installed, sediment, dirt, silt, and other pollutants are easily removed with a broom, flat shovel, or similar tool. No need to remove the grating. Everything has been kept at the street level. This can be especially valuable on construction sites and other areas with large amounts of pollutants.
- For use with flat grate catch basins.
- Allows run-off to flow through while blocking sediment and/or capturing oil.
- Standard and custom sizes available.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) | Absorption Capacity gal. (L) |
|---|---|---|---|---|
| 9272-SED | Sediment Only Model | 24 x 18 x 4 (609.6 x 457.2 x 101.6) | 2.5 (1.1) | N/A |
| 9276-SED | Sediment Only Model | 36 x 24 x 4 (914.4 x 609.6 x 101.6) | 2 (.9) | N/A |
| 9278-SED | Sediment Only Model | 48 x 24 x 4 (1219.2 x 609.6 x 101.6) | 3 (1.4) | N/A |
| 9856 | Sediment Only Model | 24 x 48 x 4 (609.6 x 1219.2 x 101.6) | 3 (1.4) | N/A |
| 9272-O/S | Oil & Sediment Model | 15 x 10 x 7 (381 x 254 x 177.8) | 3 (1.4) | Up to 0.5 gallon (1.9 L) of oil per unit |
| 9276-OS | Oil & Sediment Model | 36 x 24 x 4 (914.4 x 609.6 x 101.6) | 3 (1.4) | Up to 1.0 gallon (3.8 L) of oil per unit |
| 9278-OS | Oil & Sediment Model | 48 x 24 x 4 (1219.2 x 609.6 x 101.6) | 3.5 (1.6) | Up to 1.33 gallon (5.0 L) of oil per unit |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I use the Ultra-Grate Guard instead of one of your other stormwater management products?

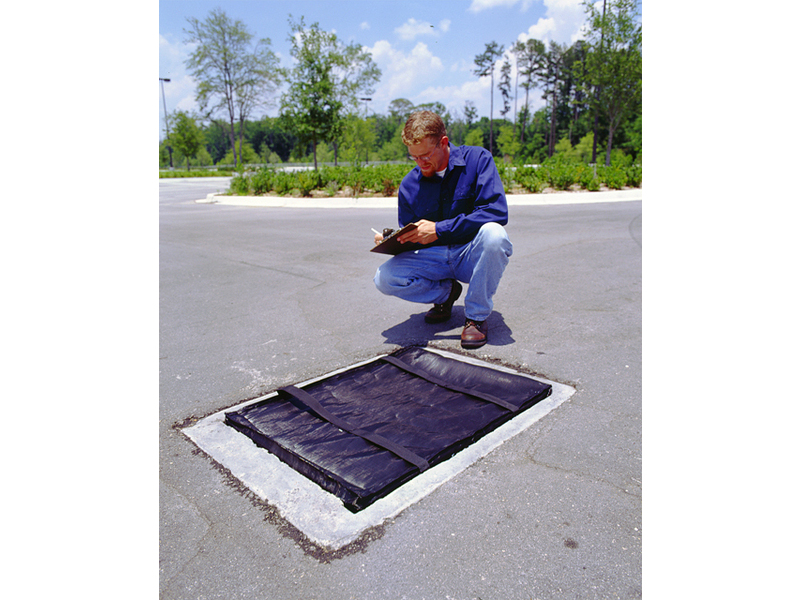

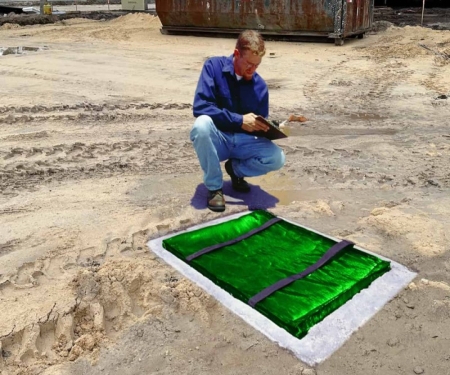

One advantage that the Grate Guard has over some of the other product is that once it is installed, there really is no need to lift the grate again (unless the unit needs to be completely removed for some reason). Any sediment, dirt, sand, trash or debris will remain at street level and is easily cleaned up / removed.
Why WOULDN'T I use the Ultra- Grate Guard instead of one of your other stormwater management products?
If aesthetics is a significant requirement for your catch basin area (ex: shopping centers, commercial districts, entertainment areas), the Ultra-Grate Guard may not be the best solution. Since the black fabric is very clearly visible when the unit is installed, an "under the grate" product may be a better choice.
What is the installation like for the Ultra-Grate Guard?

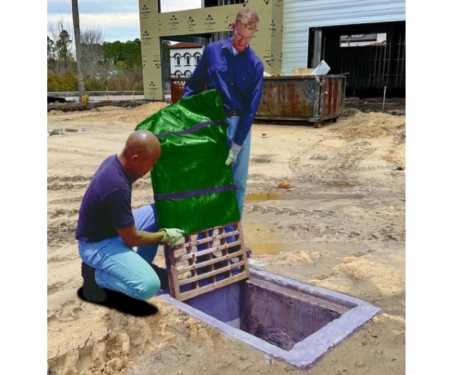

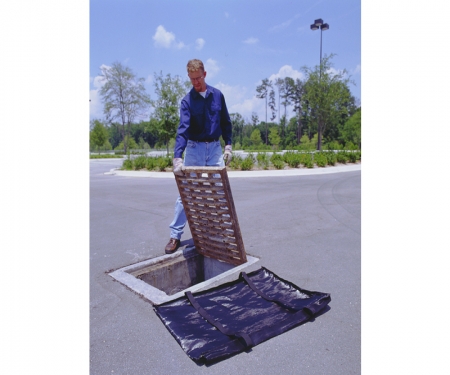

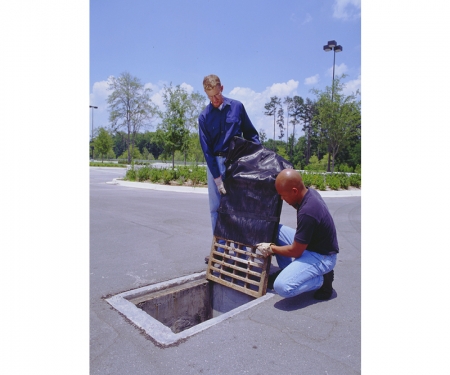

Usually, the most challenging part of installing a Grate Guard is handling the grate. Depending on the region and the application for that particular drain, the grate can be quite heavy. Please be sure to use proper handling and safety equipment. The actual installation of the Grate Guard is quite simple. One end of the unit has a flap that is secured shut with hook and loop fasteners. Pull that flap open, stand the grate on its edge and slide the Grate Guard over it. Close the flap, then carefully lower the Ultra-Grate Guard (with the grating inside) back down onto the catch basin. Built-in lifting straps will help with this step.
What's the difference between the Sediment Only Model and the Oil & Sediment Model?
The two models of Grate Guard are essentially the same. The only difference is that the Oil & Sediment Model has a built-in pouch that is used to house a piece of X-Tex oil-absorbing material. The piece of X-Tex is roughly the same dimensions (length and width) as the Grate Guard.
Why do you use X-Tex for this product?
X-Tex removes oil and other hydrocarbons much faster than traditional absorbents. A polypropylene sorbent material will not allow water to freely pass through it. Oil will absorb at the surface of a polypropylene absorbent, and the polypropylene will eventually blind over and the center will not absorb any oil
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Ultratech® Stormwater Grate Guards can catch sediment, oil, silt, debris, and other runoff before they enter waterways! Stormwater products that install under the catch basin's grating are nice from an aesthetic standpoint. But in some applications, the function is more important than form. In other words, looks aren't the primary concern, it just needs to work well. The Ultra-Grate Guard slides on to the storm drain's grate and uses heavy-duty hook and loop fasteners to keep it closed. Once installed, sediment, dirt, silt, and other pollutants are easily removed with a broom, flat shovel, or similar tool. No need to remove the grating. Everything has been kept at the street level. This can be especially valuable on construction sites and other areas with large amounts of pollutants.
- For use with flat grate catch basins.
- Allows run-off to flow through while blocking sediment and/or capturing oil.
- Standard and custom sizes available.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) | Absorption Capacity gal. (L) |
|---|---|---|---|---|
| 9272-SED | Sediment Only Model | 24 x 18 x 4 (609.6 x 457.2 x 101.6) | 2.5 (1.1) | N/A |
| 9276-SED | Sediment Only Model | 36 x 24 x 4 (914.4 x 609.6 x 101.6) | 2 (.9) | N/A |
| 9278-SED | Sediment Only Model | 48 x 24 x 4 (1219.2 x 609.6 x 101.6) | 3 (1.4) | N/A |
| 9856 | Sediment Only Model | 24 x 48 x 4 (609.6 x 1219.2 x 101.6) | 3 (1.4) | N/A |
| 9272-O/S | Oil & Sediment Model | 15 x 10 x 7 (381 x 254 x 177.8) | 3 (1.4) | Up to 0.5 gallon (1.9 L) of oil per unit |
| 9276-OS | Oil & Sediment Model | 36 x 24 x 4 (914.4 x 609.6 x 101.6) | 3 (1.4) | Up to 1.0 gallon (3.8 L) of oil per unit |
| 9278-OS | Oil & Sediment Model | 48 x 24 x 4 (1219.2 x 609.6 x 101.6) | 3.5 (1.6) | Up to 1.33 gallon (5.0 L) of oil per unit |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I use the Ultra-Grate Guard instead of one of your other stormwater management products?
One advantage that the Grate Guard has over some of the other product is that once it is installed, there really is no need to lift the grate again (unless the unit needs to be completely removed for some reason). Any sediment, dirt, sand, trash or debris will remain at street level and is easily cleaned up / removed.
Why WOULDN'T I use the Ultra- Grate Guard instead of one of your other stormwater management products?
If aesthetics is a significant requirement for your catch basin area (ex: shopping centers, commercial districts, entertainment areas), the Ultra-Grate Guard may not be the best solution. Since the black fabric is very clearly visible when the unit is installed, an "under the grate" product may be a better choice.
What is the installation like for the Ultra-Grate Guard?
Usually, the most challenging part of installing a Grate Guard is handling the grate. Depending on the region and the application for that particular drain, the grate can be quite heavy. Please be sure to use proper handling and safety equipment. The actual installation of the Grate Guard is quite simple. One end of the unit has a flap that is secured shut with hook and loop fasteners. Pull that flap open, stand the grate on its edge and slide the Grate Guard over it. Close the flap, then carefully lower the Ultra-Grate Guard (with the grating inside) back down onto the catch basin. Built-in lifting straps will help with this step.
What's the difference between the Sediment Only Model and the Oil & Sediment Model?
The two models of Grate Guard are essentially the same. The only difference is that the Oil & Sediment Model has a built-in pouch that is used to house a piece of X-Tex oil-absorbing material. The piece of X-Tex is roughly the same dimensions (length and width) as the Grate Guard.
Why do you use X-Tex for this product?
X-Tex removes oil and other hydrocarbons much faster than traditional absorbents. A polypropylene sorbent material will not allow water to freely pass through it. Oil will absorb at the surface of a polypropylene absorbent, and the polypropylene will eventually blind over and the center will not absorb any oil
