Product Details

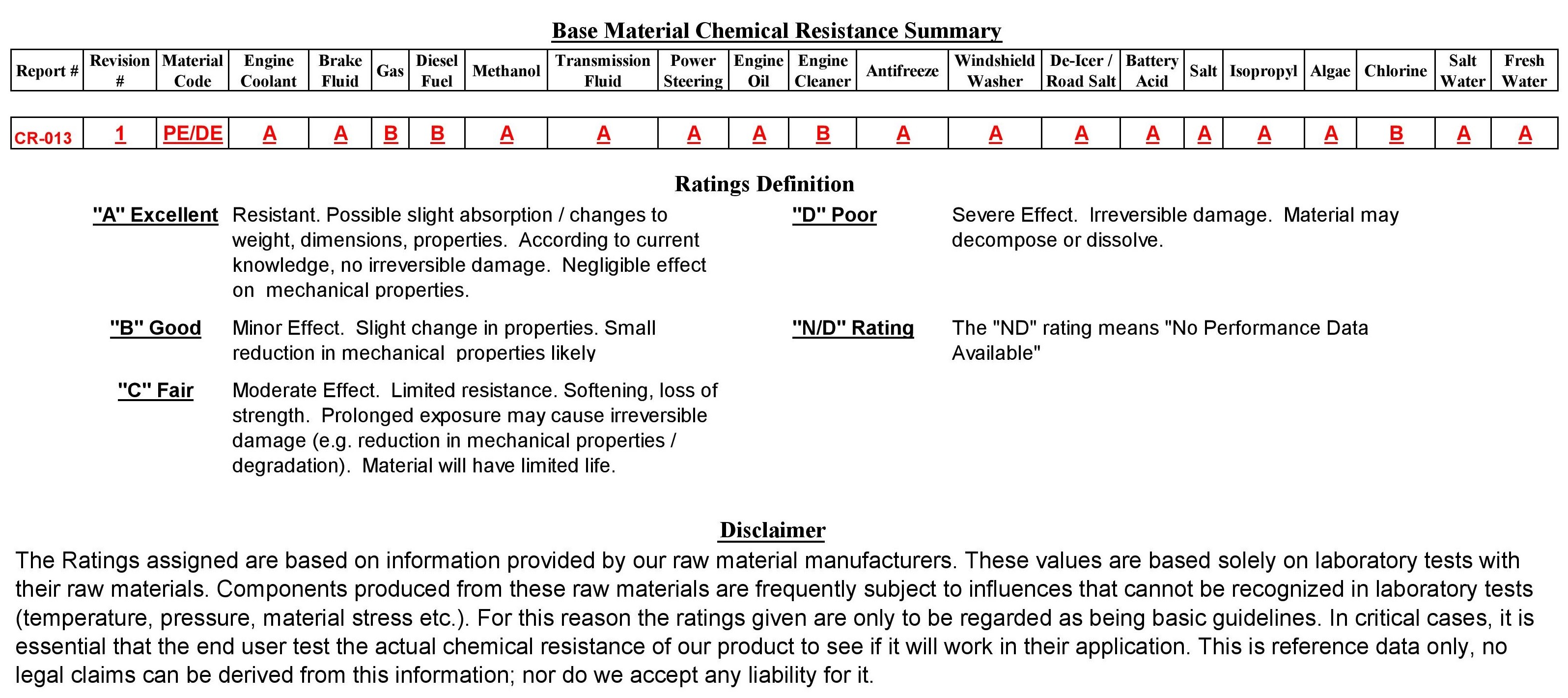

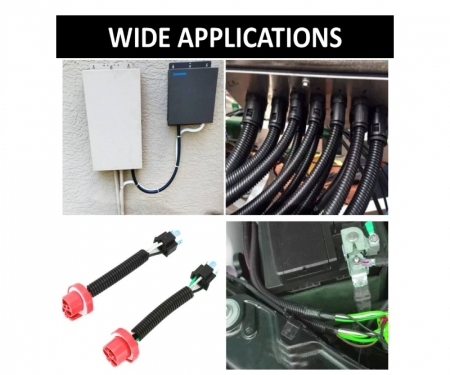

Split Wire Loom Tubing is an affordable cable organizer and cable protector that is made of durable polyethylene corrugated material. The Split Wire Loom Tubing is perfect for organizing cables and hoses by identifying specific runs into color-coded bundles that will help keep your electronic equipment in order and will prevent equipment failure or fire hazards. Colored wire loom comes with slit down the middle which offers easy installation; just open the tubing along the slit and insert the wires. It is also highly flexible, resistant to gas and chemicals, and secures your wires, cables or even small hoses. Split wire loom tubing is resistant to auto fluids and chemicals and has an operating temperature range of -40℉ to +200℉ (-40℃ to +93℃). Color wire loom is suitable for use in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction, and specialty markets.

Product Specifications

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal Internal Diameter	Dimension "A" Inside Diameter		Dimension "B" Outside Diameter		Dimension "C" Wall Thickness
	Min	Max	Min	Max
1/4" (6 mm)	0.237” (6.02 mm)	0.266” (6.76 mm)	0.372” (9.45 mm)	0.400” (10.16 mm)	0.005” (0.12 mm)
3/8" (9 mm)	0.341” (8.66 mm)	0.380” (9.65 mm)	0.496” (12.59 mm)	0.526” (13.36 mm)	0.005” (0.12 mm)
1/2" (13 mm)	0.471” (11.97 mm)	0.515” (13.07 mm)	0.645” (16.39 mm)	0.681” (17.31 mm)	0.005” (0.12 mm)
5/8" (16 mm)	0.603” (15.32 mm)	0.639” (16.23 mm)	0.802” (20.36 nmm)	0.837” (21.26 mm)	0.005” (0.12 mm)
3/4” (19 mm)	0.707” (17.96 mm)	0.759” (19.28 mm)	0.950” (24.13 mm)	.989” (25.12 mm)	0.005” (0.12 mm)
1" (23 mm)	0.897” (22.78 mm)	0.949” (24.10 mm)	1.077 (27.36 mm)	1.109 (28.17 mm)	0.006” (0.15 mm)
1-1/4" (30 mm)	1.199” (30.45 mm)	1.257” (31.93 mm)	1.446” (36.73 mm)	1.500” (38.10 mm)	0.006” (0.15 mm)
1-1/2" (40 mm)	1.566” (39.78 mm)	1.647” (41.83 mm)	1.867” (47.42 mm)	1.947” (49.45 mm)	0.006” (0.15 mm)
2" (51 mm)	1.969” (50.01 mm)	2.038” (51.77 mm)	2.285” (58.04 mm)	2.388” (60.66 mm)	0.011” (0.028 mm)

Product Manuals

Frequently Asked Questions

Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.

Videos

Return Policy – ( WIRE LOOM TUBING)

30-DAY RETURN POLICY

• You may return your purchase within 30 days after delivery for a full refund less shipping charges.

• Items must be in their original condition, not visibly used damaged, or cut.

• 10 foot Cut length wire loom orders are NON-CANCELLABLE & NON-RETURNABLE

• GAYLORD bulk box orders NON-CANCELLABLE & NON-RETURNABLE

RETURN INSTRUCTIONS

Please Fill out our Linked RMA FORM to obtain a Return Authorization (RMA#) & Shipping instructions.

Let us know your Order ID, Name & which items you want to return.

Once we get your request we'll email you a Return Authorization and Shipping Instructions.

After we receive the return, it takes 3-5 business days for us to verify the items & process a refund. We'll refund back to your method of payment.

RETURN SHIPPING

• Shipping charges are not refundable & customer is responsible for cost of return shipping.

• We recommend you return via UPS, FedEx, or insured US Mail with a tracking number. Items not received by us will not receive a credit.

• Shipping charges will apply on any exchanges.

SHORTAGE OR INCORRECT ORDERS

All claims for shortage or incorrect orders must be reported to us by phone or email within 5 business days from receipt of the order. Please mention your Purchase Order ID, Items, and your name.

DEFECTIVE PRODUCTS

Defective products must be reported to us within 30 days of delivery via phone or email.

Gaylords Ship By Pallet LTL Freight Only

CUSTOM-CUT 10’ LENGTHS ARE NON-CANCELLABLE NON-RE-FUNDABLE
