Ultratech® Recycled Drain Guards
Keep oil & sediment from catch basins with Recycled Inserts
0.0 / 5
Ultratech® Recycled Drain Guards Features
- Made completely out of Ultra-X-Tex material — 100% recycled content.
- Superior water flow rate (151 gal/ft.2), together with built-in overflow ports prevents ponding and flooding.
- Ultra-X-Tex material captures silt and sediment from runoff in addition to absorbing hydrocarbons.

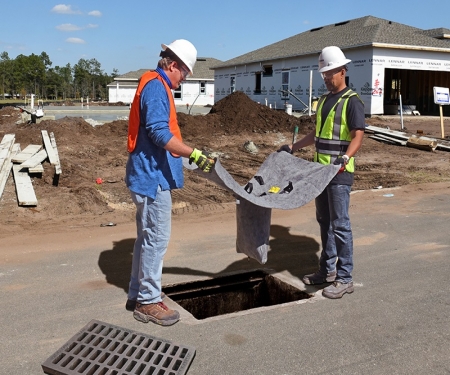

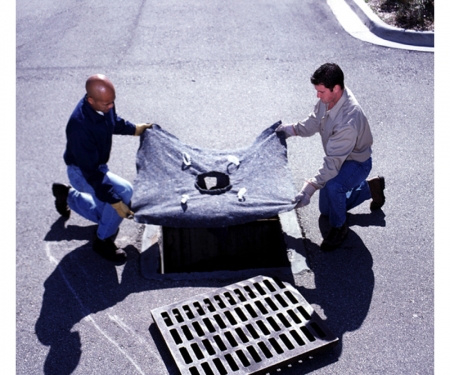

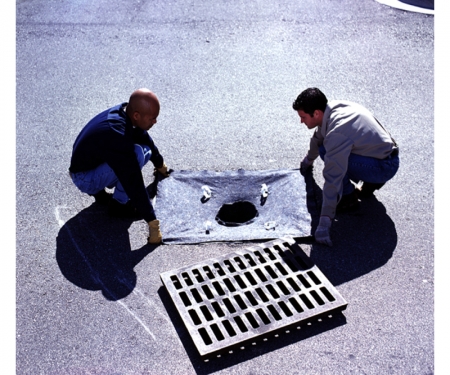

- Quick and easy installation — simply lift catch basin grate, lower Drain Guard in place, and replace the grate.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Keep oil and sediment from entering catch basins with environmentally-friendly inserts! Recycled is the new black. Okay, maybe not. But it is certainly a buzzword in stormwater and other environmental circles. The great thing about this recycled product is that it's also extremely effective. The X-Tex material that the Recycled Model is made from is excellent at removing oil, gas, and other hydrocarbons from the water flow. It's also hydrophilic (attracted to water), so it allows water to pass through very quickly. An important characteristic in a catch basin insert. The Recycled Model is made with X-Tex material. This 100% recycled material is excellent at removing oil, gas, and other hydrocarbons from the water flow.
Ultratech® Recycled Drain Guards keep oil and sediment from entering catch basins with environmentally-friendly inserts.
Recycled is the new black. Okay, maybe not. But it is certainly important in stormwater and other environmental circles. The great thing about this recycled product is that it's also extremely effective. The X-Tex material that the Recycled Model is made from is excellent at removing oil, gas, and other hydrocarbons from the water flow. It's also hydrophilic (attracted to water), so it allows water to pass through very quickly. An important characteristic in a catch basin insert. The Recycled Model is made with X-Tex material. This 100% recycled material is excellent at removing oil, gas, and other hydrocarbons from the water flow.
- Made completely out of Ultra-X-Tex material — 100% recycled content.
- Superior water flow rate (151 gal/ft.2), together with built-in overflow ports prevents ponding and flooding.
- Ultra-X-Tex material captures silt and sediment from runoff in addition to absorbing hydrocarbons.
- Quick and easy installation — simply lift catch basin grate, lower Drain Guard in place, and replace the grate.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Quantity | Dimensions in. (mm) | Weight lbs. (kg) | Containment Capacity gal. (L) | Weight Capacity UDL (lbs) |
|---|---|---|---|---|---|
| 9378 | 1 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
| 9379 | 10 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
What's different about this Drain Guard model compared to the others?
From a dimensional standpoint, the Recycled Model Drain Guard is the same as the Oil & Sediment Model Drain Guard, but instead of the geotextile material used for other models, we make the Recycled Model completely from Ultra-X-Tex.
Why do you use X-Tex for this product?
X-Tex removes oil and other hydrocarbons much faster than traditional absorbents. A polypropylene sorbent material will not allow water to freely pass through it. Oil will absorb at the surface of a polypropylene absorbent, and the polypropylene will eventually blind over and the center will not absorb any oil.
Do I have to take the grate out of the storm drain to install this Ultra-Drain Guard?
Yes. While we do have some stormwater products that do not require the grate to be lifted, the Ultra-Drain Guard, Recycled Model does require that you first lift the grate.
What do I do with the Drain Guard when I'm done with it?
If the unit has only been used to remove dirt, sand and sediment from incoming stormwater flow, it can be disposed of like any other trash/waste. If oil/grease or any other hydrocarbons have been absorbed by the X-Tex material, it must be disposed of in accordance with local regulations and requirements.
What size drains will this Drain Guard fit?
The Ultra-Drain Guard, Recycled Model is designed to be installed in drains up to 30" x 40".
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Ultratech® Recycled Drain Guards keep oil and sediment from entering catch basins with environmentally-friendly inserts.
Recycled is the new black. Okay, maybe not. But it is certainly important in stormwater and other environmental circles. The great thing about this recycled product is that it's also extremely effective. The X-Tex material that the Recycled Model is made from is excellent at removing oil, gas, and other hydrocarbons from the water flow. It's also hydrophilic (attracted to water), so it allows water to pass through very quickly. An important characteristic in a catch basin insert. The Recycled Model is made with X-Tex material. This 100% recycled material is excellent at removing oil, gas, and other hydrocarbons from the water flow.
- Made completely out of Ultra-X-Tex material — 100% recycled content.
- Superior water flow rate (151 gal/ft.2), together with built-in overflow ports prevents ponding and flooding.
- Ultra-X-Tex material captures silt and sediment from runoff in addition to absorbing hydrocarbons.
- Quick and easy installation — simply lift catch basin grate, lower Drain Guard in place, and replace the grate.
- Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Part # | Quantity | Dimensions in. (mm) | Weight lbs. (kg) | Containment Capacity gal. (L) | Weight Capacity UDL (lbs) |
|---|---|---|---|---|---|
| 9378 | 1 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
| 9379 | 10 | 48 x 36 x 18 (1219.2 x 914.4 x 457.2) | 1 (.5) | Up to 1.26 gal (5 L) of Oil | Up to 40 lbs. (18 kg) of Sediment |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
What's different about this Drain Guard model compared to the others?
From a dimensional standpoint, the Recycled Model Drain Guard is the same as the Oil & Sediment Model Drain Guard, but instead of the geotextile material used for other models, we make the Recycled Model completely from Ultra-X-Tex.
Why do you use X-Tex for this product?
X-Tex removes oil and other hydrocarbons much faster than traditional absorbents. A polypropylene sorbent material will not allow water to freely pass through it. Oil will absorb at the surface of a polypropylene absorbent, and the polypropylene will eventually blind over and the center will not absorb any oil.
Do I have to take the grate out of the storm drain to install this Ultra-Drain Guard?
Yes. While we do have some stormwater products that do not require the grate to be lifted, the Ultra-Drain Guard, Recycled Model does require that you first lift the grate.
What do I do with the Drain Guard when I'm done with it?
If the unit has only been used to remove dirt, sand and sediment from incoming stormwater flow, it can be disposed of like any other trash/waste. If oil/grease or any other hydrocarbons have been absorbed by the X-Tex material, it must be disposed of in accordance with local regulations and requirements.
What size drains will this Drain Guard fit?
The Ultra-Drain Guard, Recycled Model is designed to be installed in drains up to 30" x 40".
