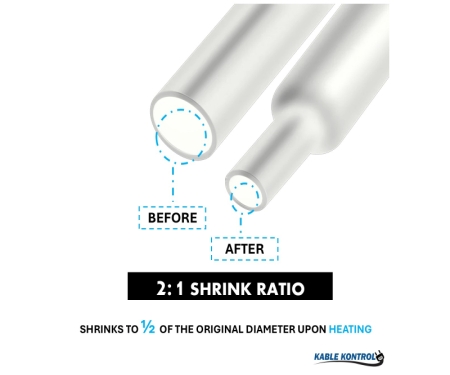

PTFE Teflon Heat Shrink Tubing 2:1
Applications Exposed to Extreme Temperatures and Aggressive Chemicals
0.0 / 5
PTFE Teflon Heat Shrink Tubing 2:1 Features
- Sold as 4’ Feet Stick

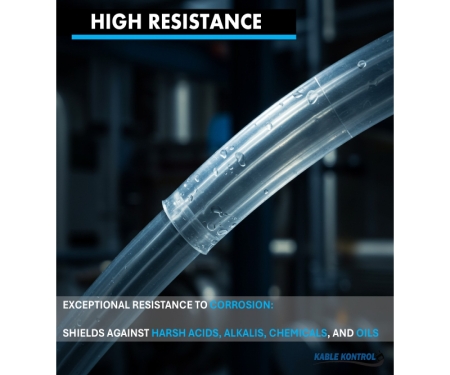

- Exceptional corrosion resistance: protects against acids, alkalis, chemicals, and oils
- High dielectric strength for superior voltage insulation
- Wide operating temperature range: -65°C to +200°C
- Standard transparent (clear) color
- Shrink activation temperature: >350°C
Kable Kontrol® PTFE Heat Shrinkable Tubing offers premium insulation and protection for applications exposed to extreme temperatures and aggressive chemicals. Known for its excellent resistance to corrosion and high voltage insulation, this tubing is ideal for demanding environments in chemical processing, aerospace, automotive, mechanical, transformer, and communication systems. Engineered from Teflon™ PTFE, it ensures long-term reliability, even in the most challenging conditions.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Property | Test Method | Standard |
| Tensile Strength(MPa) | ASTM D2671 | 19 |
| Elongation(%) | ASTM D2671 | 200 |
| Cold impact (-65°C) | ASTMD 2671 Method C | No cracking |
| Flammablity | ASTM D2671 | VW-1 |
| Dieletric strength(kV/mm) | VDE 0303 Part2 | 26 |
| Volume resistivity(Ω.cm) | VDE 0303 Part2 | 1.0X1014 |

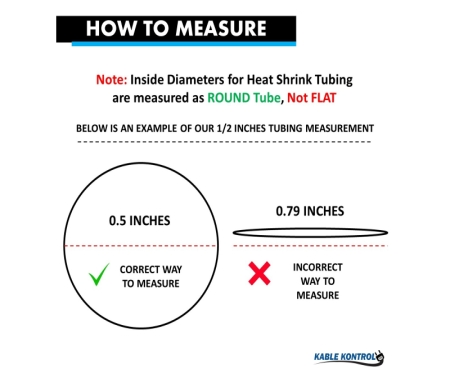

| Inside Diameter | As Supplied (mm) | Recovered (mm) | |
| Inner Diameter | Inner Diameter | Wall Thickness | |
| 3mm (1/8”) | 3.0±0.3 | ≤1.65 | 0.20±0.05 |
| 4.5mm (3/16”) | 4.5±0.3 | ≤2.35 | 0.20±0.05 |
| 6mm (1/4”) | 6.0＋0.5/-0.3 | ≤3.10 | 0.25±0.05 |
| 8mm (5/16”) | 8.0＋0.5/-0.3 | ≤4.10 | 0.25±0.05 |
