Notrax Skymaster® HD ESD Interlocking Anti Static Floor Mats 463 Series
Static Dissipative Natural Rubber | Easy To Install On Site
0.0 / 5
Skymaster® HD ESD Interlocking Anti Static Floor Mats Features
- Available Colors – Black
- Available Size – 3’ x 3’ Feet
- Dissipative resilient natural rubber compound and unique support design offers exceptional fatigue relief

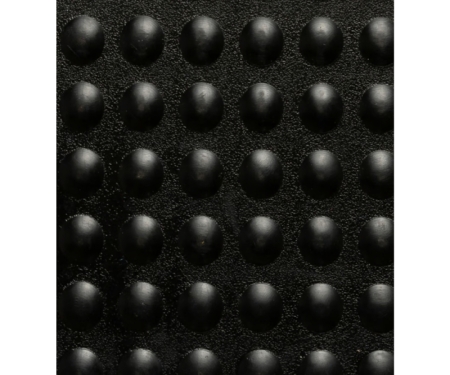

- Bubble top surface for added comfort that is easy to clean
- Easy to snap together mats on-site for custom work station platforms
- Meets or exceeds requirements of ANSI/ESD S20.20 and per ANSI/ESD STM7.1
- Resistance Point to Ground (Rtg): 1x 10⁶ to 1x 10⁹ ohms
- Resistance Point to Point (Rtt): 1x 10⁶ to 1x10⁹ ohms
- Compatible with any of the Skymaster® HD family of mats
- #461 Skymaster® HD Ramps and #469 Safety line available
- Optional 051 grounding cord available, not required

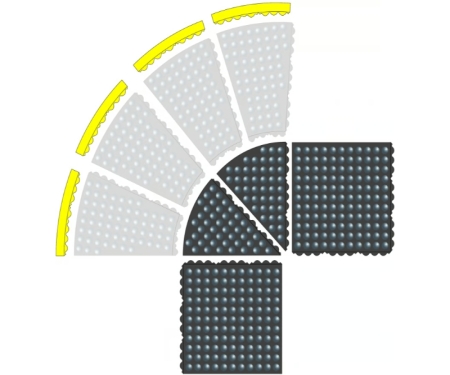

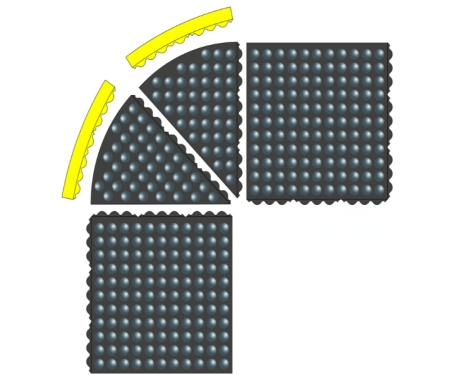

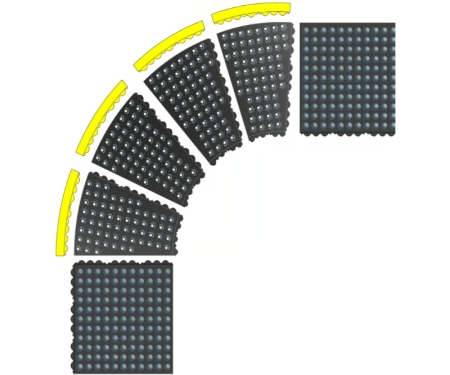

Notrax Skymaster® HD ESD is an Electro Static Discharge (ESD) protective mat that is formulated to drain static electricity from workers to safeguard against static shocks and protect equipment. Skymaster® HD ESD is heavy duty natural rubber compound mat for industrial strength applications. Snap together tiles of 3'x3’ can be easily assembled for coverage of large areas or individual workstations. Ergonomic benefit derived from a 5/8” thick worker platform with a bubble pattern for maximum fatigue relief in dry industrial environments. The unique design and craftsmanship make the mat easy to handle and easy to install on site. A tooled grid of 12"x12" sections on the underside of the mat makes further customization quick and easy. Available beveled edges prevent tripping and allow inside and outside corners. Range of accessories including Skymaster® HD Yellow Safety line™ and Skymaster® HD i-Curve™ and Skymaster® HD o-Curve™ series.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Model No | 463S0033BL |
|---|---|
| Color | Black |
| Dimensions | 3' x 3' Feet |
| UPC | 662641848092 |
| Available Colors | Black |
| Overall Thickness | 5/8 |
| Standard sizes | 3'x3' |
| Group | Ergonomic, Anti-fatigue & Safety Matting |
| Environment | Dry Areas |
| Special Characteristics | Free of DOP, free of DMF, free of ozone depleting substances, free of silicone and free of heavy metals|Static dissipative natural rubber compound |
| Recommended Use | For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations. |
| Special Remarks | Heavy duty ESD rubber compound that can be used with all Skymaster® HD series of products. Use Skymaster® HD i-Curve™ and Skymaster® HD o-Curve™ to continue around curved workstations |
| Surface | Industrial Bubble Pattern |
| Edges | Attachable beveled edges are available |
| Usage Intensity | Heavy duty |
| Material Specifications | Static dissipative natural rubber |
| Process | Compression Molding |
| Pallet Quantity | 36 |
| Weight Lbs/sqft | 2.6 |
| Fire Rating US | Pass |
| REACH Compliant | Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals). |
| Anti-Fatigue Rating | Best |
| Slip Resistance Rating | Best |
| Wear Resistance Rating | Best |
