Notrax Diamond Stat™ Grande™ Anti Static Floor Mats 927 Series
Beveled Edges On All 4 Sides | Superior Comfort & Eliminates Slipping
0.0 / 5
Notrax Diamond Stat™ Grande™ Anti Static Floor Mat Features
- Electrically conductive heavy duty PVC diamond plate top surface provides superior durability and traction
- Meets or exceeds requirements of ANSI/ESD S20.20 and per ANSI/ESD STM7.1
- Resistance Point to Ground (Rtg): 1x 10⁴ to 1x 10⁶ ohms
Resistance Point to Point (Rtt): 1x 10⁴ to 1x10⁶ ohms - Redstop™ non-slip backing to reduce mat slippage
UniFusion™ bond guaranteed for the life of the mat - Beveled edges on all 4 sides
- Certified by the NFSI (National Floor Safety Institute)

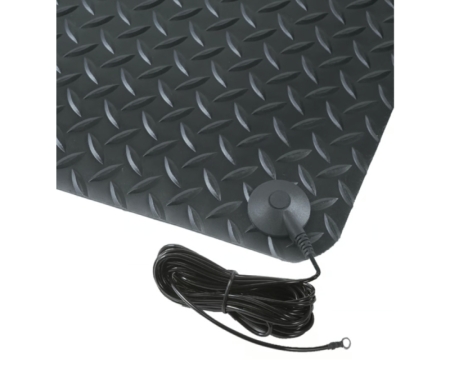

- Grounding cord included, required
Notrax Diamond Stat™ Grande™ is a full ONE-INCH is a conductive/anti-static mat designed to absorb static electricity. The mat drains static electricity from the worker keeping sensitive circuitry from being damaged. The durable vinyl diamond-plate design provides non-directional traction and is easy to clean. Diamond Stat™ Grande™ top surface is combined with a rubber foam base utilizing Notrax® exclusive UniFusion™ technology. This virtually eliminates the possibility of de-lamination. Ergonomic fatigue-reducing rubber foam base that provides superior comfort and support eliminates the slipping and sliding of floor mats on smooth surface flooring such as vinyl composite tile, painted or epoxy coated concrete, vinyl sheet flooring, carpet, and ceramic tile.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Model No | 927 | |
| Available Colors | Black | |
| 1 | |
| Roll Sizes | 2'x 75'; 3'x 75'; 4'x 75' | |
| Standard sizes | 2'x 3'; 3'x 5'; 3'x 12' | |
|---|---|---|
| Group | Ergonomic, Anti-fatigue & Safety Matting | |
| Environment | Dry Areas | |

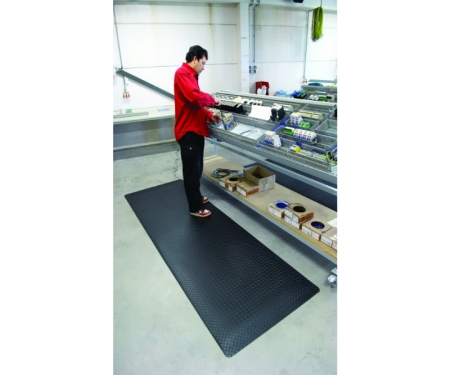

| Recommended Use | For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations. | |
| Special Remarks | For maximum effectiveness, we highly recommend that the end-user properly attaches the grounding cord which is included at no charge. It easily snaps into a grommet which is installed in the mat at our factory. | |
| Surface | Industrial Diamond Plate | |
| Edges | Beveled edges on all sides | |
| Usage Intensity | Heavy duty | |
| Custom Description | Available in stock and rolls sizes and in custom lengths. | |
| Installation | No installation required | |
| Material Specifications | Static dissipative PVC | |
| Backing | Closed Cell Rubber | |
| Process | Lamination | |
| Weight Lbs/sqft | 1.7 | |
| Fire Rating US | Pass | |
| REACH Compliant | Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals). | |
| Anti-Fatigue Rating | Superior | |
| Slip Resistance Rating | Superior | |
| Wear Resistance Rating | Superior |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Notrax Diamond Stat™ Grande™ is a full ONE-INCH is a conductive/anti-static mat designed to absorb static electricity. The mat drains static electricity from the worker keeping sensitive circuitry from being damaged. The durable vinyl diamond-plate design provides non-directional traction and is easy to clean. Diamond Stat™ Grande™ top surface is combined with a rubber foam base utilizing Notrax® exclusive UniFusion™ technology. This virtually eliminates the possibility of de-lamination. Ergonomic fatigue-reducing rubber foam base that provides superior comfort and support eliminates the slipping and sliding of floor mats on smooth surface flooring such as vinyl composite tile, painted or epoxy coated concrete, vinyl sheet flooring, carpet, and ceramic tile.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Model No | 927 | |
| Available Colors | Black | |
| 1 | |
| Roll Sizes | 2'x 75'; 3'x 75'; 4'x 75' | |
| Standard sizes | 2'x 3'; 3'x 5'; 3'x 12' | |
|---|---|---|
| Group | Ergonomic, Anti-fatigue & Safety Matting | |
| Environment | Dry Areas | |
| Recommended Use | For placement in ESD assembly lines, picking, packing and logistics warehouses, individual work stations. | |
| Special Remarks | For maximum effectiveness, we highly recommend that the end-user properly attaches the grounding cord which is included at no charge. It easily snaps into a grommet which is installed in the mat at our factory. | |
| Surface | Industrial Diamond Plate | |
| Edges | Beveled edges on all sides | |
| Usage Intensity | Heavy duty | |
| Custom Description | Available in stock and rolls sizes and in custom lengths. | |
| Installation | No installation required | |
| Material Specifications | Static dissipative PVC | |
| Backing | Closed Cell Rubber | |
| Process | Lamination | |
| Weight Lbs/sqft | 1.7 | |
| Fire Rating US | Pass | |
| REACH Compliant | Reach compliant (Registration, Evaluation, Authorization and Restriction of Chemicals). | |
| Anti-Fatigue Rating | Superior | |
| Slip Resistance Rating | Superior | |
| Wear Resistance Rating | Superior |
