Techflex® Flexo® Noise Reduction Braided Cable Sleeving
Full Coverage Expandable Sleeve That Minimizes Noise On Wire Harnesses
0.0 / 5
Flexo Noise Reduction Sleeving
- Special Construction Minimizes Noise in Enclosed Applications
- Provides Full Coverage, Professional Look
- Resists common chemicals & solvents
- Cuts Easily With Hot Knife
- Cut & Abrasion Resistant
- Expands up to 150% for easy Installation
- Halogen free - RoHS compliant
- Resists UV damage
- Operating Temperature Range: -94° to 257 °F (-70° to 125°C.)
- FAR 25, FMVSS 302 Approved
- 446°F / 230°C. Melt Temp.
Inside Diameters Are Measured as Round Not Flat

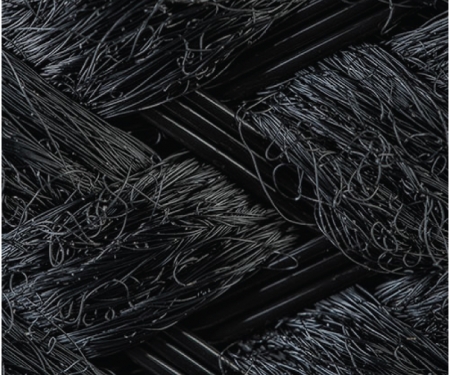

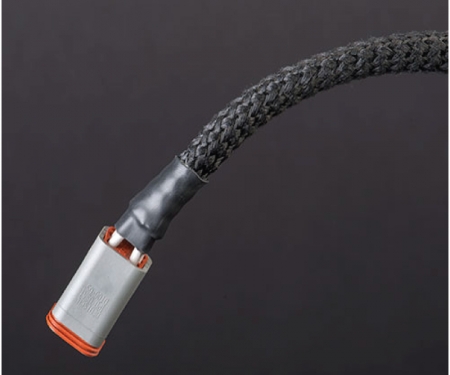

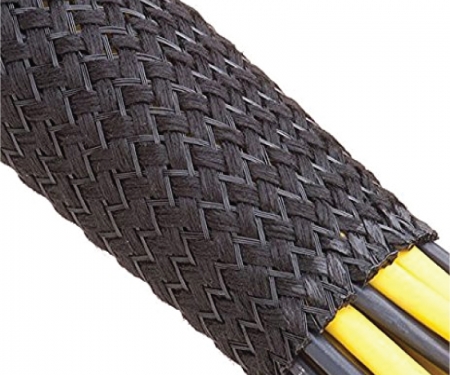

Flexo Noise Reduction is a biaxially braided hybrid sleeving combining monofilament and multifilament PET yarns to create a full coverage expandable sleeve that substantially reduces noise on wires, tubes and hoses. The lightweight, rugged construction also provides protection from abrasion and vibration that is far superior to foam harness sleeves. Noise Reduction sleeving expands for easy installation over splices and connectors and is flexible enough for tight radius applications.
The braided construction will not hold moisture and drains quickly when immersed. NR is used in body wiring harnesses, instrument panel and lighting wiring, cable & hose assemblies, and other limited access applications where noise reduction is desirable. In retrofit applications or when component or harness disassembly is impractical, our unique f6 quiet hybrid wraparound sleeving provides identical noise reduction and protection characteristics.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 3/8" 1/2" 5/8" 3/4" 1" | NRN0.13BK NRN0.25BK NRN0.38BK NRN0.50BK NRN0.63BK NRN0.75BK NRN1.00BK | 1/8" 1/4" 3/8" 1/2" 5/8" 3/4" 1" | 3/16" 3/8" 1/2" 3/4" 1" 1 1/4" 1 5/8" | 500' 500' 250' 250' 250' 250' 250' | 100' 100' 100' 100' 100' 75' 50' | 1 1 1 1 1 1 1 | 0.3 0.5 0.9 1.1 1.5 2.0 2.4 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL94 |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | .21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 446°F/230°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
| SVHC | None |
