Techflex® Flexo® Mylar Braided Cable Sleeving

Lightweight Economical Metallic Alternative

0.0 / 5

(0)

Mylar Braided Sleeving Features

  • Economical & Easy To Install
  • Expands Up To 150%
  • Cuts Easily With Hot Knife
  • Temperature Range -103° to 257°F (-75° to 125°C.)
  • RoHS Compliant
  • Melt: 446°F / 230°C
See More Technical Specifications

Require Splice Free? Please Call 1877-284-7760

Inside Diameters Are Measured as Round Not Flat

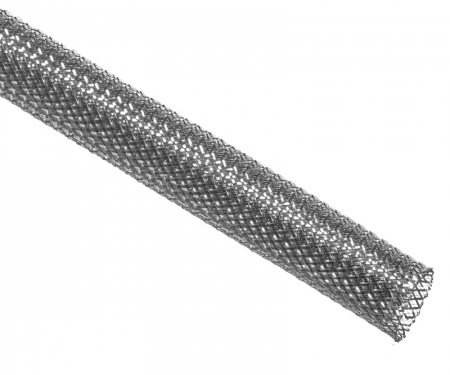

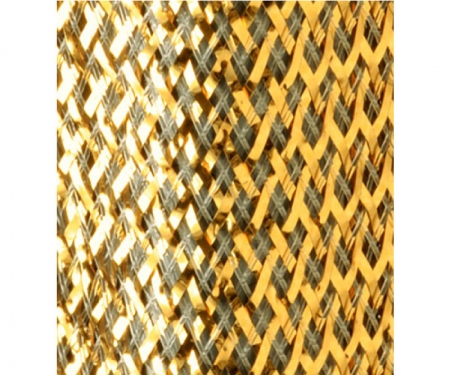

When your needs don’t call for the durability or toughness of our chrome or chrome xc sleeving, Mylar sleeving is an ideal, economical alternative. Mylar sleeving is perfect for cosmetic applications and a wide variety of installation methods create dramatic results. Audiophile cable builders often use Mylar sleeving under other sleeving types to create a unique, custom visual effect. Applications that combine Mylar sleeving with a more robust sleeving will withstand abrasion and general use and still have the custom, “Wow!” effect cable fabricators are looking for. Braided from thin metallic Mylar strips along with transparent PET monofilament. Mylar sleeving creates a sparkling, highly reflective effect. Mylar sleeving can be used instead of Mylar sheets to wrap and bundle cables.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Gold, Silver

Nominal
Size
Product
Part #
Expansion Range Standard Spool Put-Ups Colors Lbs/
100'
Min. Max. Bulk Spool Shop Spool
1/4"
1/2"
3/4"
MYN0.25
MYN0.50
MYN0.75
1/8"
1/4"
5/8"
7/16"
1"
1 3/4"
1,000'
500'
250'
200'
100'
75'
2
2
2
0.17
0.35
0.52



Pearlescent Clear

Nominal
Size
Product
Part #
Expansion Range Standard Spool Put-Ups Colors Lbs/
100'
Min. Max. Bulk Spool Shop Spool
1/8"
1/4"
3/8"
1/2"
MYE0.13PC
MYE0.25PC
MYE0.38PC
MYE0.50PC
1/16"
5/32"
5/16"
1/4"
5/32"
5/16"
15/32"
3/4"
1,000'
1,000'
500'
500'
225'
200'
125'
100'
PC
PC
PC
PC
0.08
0.10
0.11
0.42



Physical Properties
Monofilament Thickness (ASTM D-204) .010
Flammability Rating
Recommended Cutting Hot Knife
Colors 3
Wall Thickness .025
Tensile Strength - Yarn (ASTM D-2265) lbs.
Abrasion Resistance Very Low
Specific Gravity 1.3
Moisture Absorption % (ASTM D-570) .1 - .2



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 1
Chlorinated Solvents 3
Weak Bases 1
Strong Bases 3
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 1
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .00
WVR .16
Smoke D-Max (ASTM E-662) NA
Outgassing Medium
Oxygen Index (ASTM D-2863) 21



Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C



Other Information
Halogen Free Yes
RoHS Yes
UL/CSA No
SVHC None
