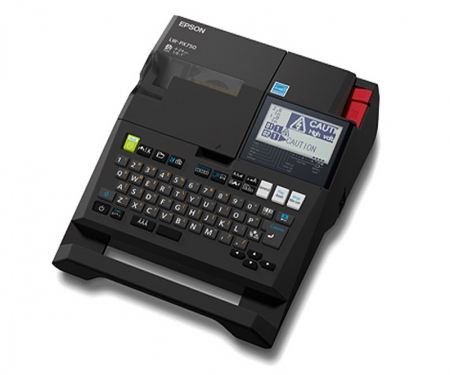

Epson® LABELWORKS PX LW-PX750
Prints Industrial Labels & Magnetic Tape From 1/8″to 1″ Wide
0.0 / 5
Epson® LABELWORKS PX LW-PX750 Features
- The professional choice — LW-PX750 prints industrial labels and magnetic tape from 1/8″ (4 mm) to 1″ (24 mm) wide.
- Less waste and cost — Innovative rollback technology reduces lead margins to 4 mm*, which translates to less cost and waste per print.
- Lifetime warranty — No questions asked.
- Auto full/half-cut — Create strips of uniform or mixed-length labels for ease of printing and application in the field.
- Amazing power — Import and print large batch files from Excel® with easy-to-use Label Editor Professional software.
- Large built-in memory — Create or import up to 100 label designs and custom images.
- Specialty print modes — Application-specific hot keys simplify bar code printing, asset management and industrial labeling applications.
- Built-in handle — Makes it easy to carry in the field or around the workplace.
- Specialty labels — Heat shrink tube, magnetic tape, self-laminated, glow-in-the-dark, strong adhesive and reflective tapes simplify and diversify supply selection for industrial applications in the facility or field (specialty labels sold separately).
- PeelGuard® — An automatic cutter that rounds corners to extend life and durability of your labels.
On all standard PX industrial tapes and some heat shrink tube widths; lead margin may vary with specialty materials.
Professionals prefer LABELWORKS PX and the LW-PX750 — a portable label and barcode printer with exclusive time- and cost-saving features for creating custom and compliant labels up to 1″ (24 mm) wide. Organize tool cribs, identify storage bins, make safety labels, tag assets and more. With application-specific hotkeys, this easy-to-use label maker offers extraordinary flexibility. Import images and print on the go — the LW-PX750 features Mixed-Length printing for variable-length labels on a single, half-cut strip and Pick-and-Print for faster print-and-apply in the field. With LABELWORKS PX innovative rollback technology, there’s less lead margin waste as compared to other brands.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| PRINTER SPECS | |
| Machine Dimensions | Approx. 193 (W) x 238 (D) x 66 (H) (mm) |
| Machine Weight | 2.24 lbs. |
| Print Resolution | 180 dpi thermal transfer |
| Max Print Speed | 30mm/sec with adapter |
| Tape Cutter | Automatic with half-cut function |
| Display | Back-lit monochrome LCD, 130 x 64 dot,
Shows: Print preview, tape-type, label length, label width, battery life, text size, auto-cut (on/off), and label format. |
| Keyboard | QWERTY |
| Exterior | High Impact Plastic Housing |
| Auto Tape Detect | Confirms tape type and size. |
| Auto Power-off | After 5 minutes (stand-alone mode), 1 hour (PC connected) |
| Power Supply | AC Adapter (100-240V/ 50-60 Hz/ 900mA)
6 AA Alkaline batteries |
| Power Output | 15+- 5% [V] |
| Software | Label Editor Professional for Windows® 10*, 8.1, 8, 7 (*upgrade will be available) |
| Interface | USB 2.0 |
| Ratings/Markings | Energy Star, BC, FCC |
| Operating Temperature | 5° – 35° C, (41° – 95° F) |
| Storage Temperature | -10° – 55° C, (14° – 131° F) |
| Warranty | Lifetime |
| PRINTER FEATURES | |
| Tape Saving Tools | Character space adjustment, Double figures, Margin settings (see below), Text Alignment (left, center, right, justify) |
| Margins | Auto tape-rewind reduces lead margin to 4mm on standard industrial labels (specialty label materials have 10mm lead). Batch printing settings from .04 – 19.68″ (1-500mm) |
| Hot-Keys | Wire Flag, Wire Wrap, Mixed Length, Serialized Numbers, Advanced Serialized Numbers, Symbols, Print Orientation, Margin length, Font, Text Size, Euro-Latin Characters, and Column |
| Drop-Stop & Pick-and-Print | Prints, cuts, and holds the label until pulled from the printer. Next label in the batch will print automatically afterwards |
| Mixed-Length (Mix-Len) Label – Cut on Demand | Half cuts multiple, variable-length labels to size in a half-cut strip or full-cut individual labels |
| Bar Code Formats | EAN 8, EAN 13, Code 39, Code 128, UPC-A, UPC-E, ITF, CodaBar, QR Code |
| Symbols | 898 industrial and professional symbols for safety, organizing, health, or industry specific labeling |
| Multi Line Print | Up to 8 lines (with 24mm supplies) in stand-alone mode. More lines are possible when connected to PC. |
| Number Serialization | Up to 4 digits (0 to 9), Alphabet (A to Z), (a to z) |
| Assign Sequence Number | For Block labels |
| Import Data and Images | Yes. |
| Print Rotation | Horizontal, vertical, and mirror (backwards printing) |
| Foreign Languages | Menu prompts for users in German, Portuguese-EU, Portuguese-Brazil, Dutch, Norwegian, Finnish, Swedish, Italian, Danish, Turkish |
| Foreign Language Characters | 179 Accent Letters such as À,Á,Â,Ã,Ä,Å,Æ in upper and lower case with recall positioning for ease of data entry |
| User-Friendly | Built-in handle, balanced QWERTY Keyboard, and front-load cartridge design |
| Memory | Internal flash memory can store up to 100 files |
| Auto-Tape Detection | Detects end of tape cartridge. Will continue to print from most recent label printed once new supply has been loaded |
| MEDIA and SUPPLIES | |
| Supply Widths | Standard Industrial Tape Sizes: 1/6″, 1/4″, 3/8″, 1/2″, 3/4″, 1″ (4mm,6mm,9mm,12mm,18mm,24mm) Shrink Tube Sizes: 1/8″ [16-22 AWG], 3/16″ [8-12 AWG], 1/4″ [10-20 AWG], 3/8″ [6-18 AWG], 1/2″ [AWG 2-8], 9/16″ [AWG 0-5] |
| Supply Lengths | 30′ (standard media); 96″ (heat shrink tube); Various lengths for specialized materials (check brochure for details) |
| Supply Types | Adhesive, Magnetic, Polyolefin (heat shrink tube), Reflective, Glow-in-the-dark, Fluorescent, Self-laminating over wrap, iron-on fabric |
| ACCESSORIES | |
| AC Adapter | US certified (AST1116Z2-1) |
| Semi-Rigid Case | Nylon and molded plastic, zipper enclosed case. Mesh pockets allow for ample storage of accessories and additional supply cartridges. |
