Kendall Howard® Linier® Server Cabinets
Floor Cabinets Available From 22U to 42U - 8 Door Configurations
0.0 / 5
Kendall Howard Linier® Server Enclosure Features
- 11 stylish Door Options, Solid, Glass, Convex, Vented Front & Rear options.
- Available in 22U, 27U, 37U, and 42U sizes
- Top Panel Provides Room For Installation of up to four 4” fans.
- Removable Locking Side Panels for easy access
- Top and bottom removable cable slots

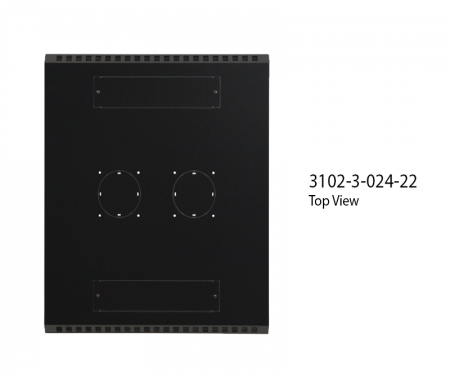

- Top Includes Removable Laser Knockouts
- Includes Preinstalled Casters & Levelers
- Cage Nut bolting for secure mounting of delicate network components
- 1300 lb. Weight Capacity (Holds 800 lbs. On Casters)
- Rail width is 19" EIA Compliant
- 5 year limited warranty
Kendall Howard's LINIER® Server cabinet enclosures are the most popular choice for data floor storage cabinets. The design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 24” or 36" depth, LINIER® floor Server Cabinets are suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low-cost solution loaded with features, the LINIER® server cabinet brand delivers big!
Benefits
- Easy Installation
- Casters and levelers are preinstalled to allow you to easily move and load your system.
- Removable Cable Access Panels
- The top of the server cabinet has removable laser knockouts for cable access and versatility.
- Locking, Removable Side Panels
- The side panels are removable and lockable to enable customization.
- Adjustable Rails
- Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36″ for versatile mounting options.
- Secured System
- Both doors are equipped with locks to help protect and secure your valuable equipment.
- Locking Tempered Glass Door
- The locking tempered glass door allows installers to easily access and view their network equipment.
- Locking Vented Door
- The locking perforated door promotes better air circulation within the cabinet. This vented design is especially helpful for equipment that generates a lot of heat, such as servers, UPS’s, and more.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| 22U Rack | ||
| 24” Depth | 36” Depth | |
| Width | 24" | 24” |
| Depth | 27.00" (Useable 24.00") | 37.72" (Useable 36.00") |
| Height | 45.50" | 45.50" |
| Weight | 137.00 lbs. | 151.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 53" H | 32" L x 45" W x 53" H |
| Material(s) | CRS (Cold Rolled Steel) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black | Medium Texture Black |
| 27U Rack | ||
| 24” Depth | 36” Depth | |
| Width | 24" | 24" |
| Depth | 27.00" (Useable 24.00") | 37.72" (Useable 36.00") |
| Height | 54.25" | 54.25" |
| Weight | 146.00 lbs. | 167.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 61" H | 32" L x 45" W x 61" H |
| Material(s) | CRS (Cold Rolled Steel) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black | Medium Texture Black |
| 37U Rack | ||
| 24” Depth | 36” Depth | |
| Width | 24" | 24" |
| Depth | 27.00" (Useable 24.00") | 37.72" (Useable 36.00") |
| Height | 71.75" | 71.75" |
| Weight | 176.00 lbs. | 203.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 79" H | 32" L x 45" W x 79" H |
| Material(s) | CRS (Cold Rolled Steel) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black | Medium Texture Black |
| 42U Rack | ||
| 24” Depth | 36” Depth | |
| Width | 24" | 24" |
| Depth | 27.00" (Useable 24.00") | 37.72" (Useable 36.00") |
| Height | 80.50" | 80.50" |
| Weight | 192.00 lbs. | 236.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 87" H | 32" L x 45" W x 87" H |
| Material(s) | CRS (Cold Rolled Steel) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black | Medium Texture Black |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Kendall Howard's LINIER® Server cabinet enclosures are the most popular choice for data floor storage cabinets. The design is packed with some of the most popular rack features for a price virtually anyone can afford. Built with a 24” or 36" depth, LINIER® floor Server Cabinets are suitable for network servers, battery backups, switching banks, and other larger network equipment. The cabinet features laser knockouts allowing you to install fans, while removable slots provide numerous cable routing options. When you need a low-cost solution loaded with features, the LINIER® server cabinet brand delivers big!
Benefits
- Easy Installation
- Casters and levelers are preinstalled to allow you to easily move and load your system.
- Removable Cable Access Panels
- The top of the server cabinet has removable laser knockouts for cable access and versatility.
- Locking, Removable Side Panels
- The side panels are removable and lockable to enable customization.
- Adjustable Rails
- Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36″ for versatile mounting options.
- Secured System
- Both doors are equipped with locks to help protect and secure your valuable equipment.
- Locking Tempered Glass Door
- The locking tempered glass door allows installers to easily access and view their network equipment.
- Locking Vented Door
- The locking perforated door promotes better air circulation within the cabinet. This vented design is especially helpful for equipment that generates a lot of heat, such as servers, UPS’s, and more.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| 22U Rack | ||
| 24” Depth | 36” Depth | |
| Width | 24" | 24” |
| Depth | 27.00" (Useable 24.00") | 37.72" (Useable 36.00") |
| Height | 45.50" | 45.50" |
| Weight | 137.00 lbs. | 151.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 53" H | 32" L x 45" W x 53" H |
| Material(s) | CRS (Cold Rolled Steel) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black | Medium Texture Black |
| 27U Rack | ||
| 24” Depth | 36” Depth | |
| Width | 24" | 24" |
| Depth | 27.00" (Useable 24.00") | 37.72" (Useable 36.00") |
| Height | 54.25" | 54.25" |
| Weight | 146.00 lbs. | 167.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 61" H | 32" L x 45" W x 61" H |
| Material(s) | CRS (Cold Rolled Steel) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black | Medium Texture Black |
| 37U Rack | ||
| 24” Depth | 36” Depth | |
| Width | 24" | 24" |
| Depth | 27.00" (Useable 24.00") | 37.72" (Useable 36.00") |
| Height | 71.75" | 71.75" |
| Weight | 176.00 lbs. | 203.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 79" H | 32" L x 45" W x 79" H |
| Material(s) | CRS (Cold Rolled Steel) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black | Medium Texture Black |
| 42U Rack | ||
| 24” Depth | 36” Depth | |
| Width | 24" | 24" |
| Depth | 27.00" (Useable 24.00") | 37.72" (Useable 36.00") |
| Height | 80.50" | 80.50" |
| Weight | 192.00 lbs. | 236.00 lbs. |
| Shipping Dimensions | 32" L x 45" W x 87" H | 32" L x 45" W x 87" H |
| Material(s) | CRS (Cold Rolled Steel) | CRS (Cold Rolled Steel) |
| Color/Finish | Medium Texture Black | Medium Texture Black |
