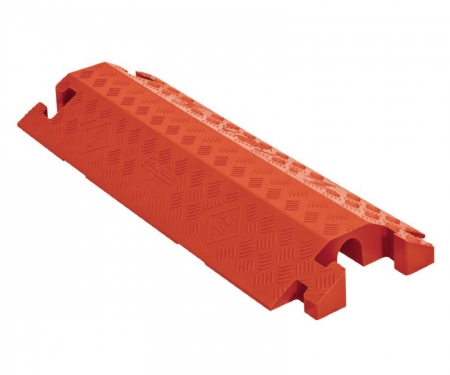

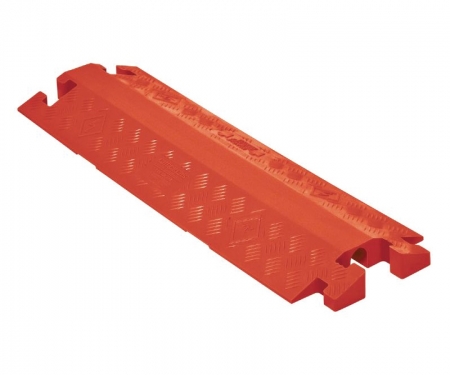

Linebacker® Heavy Duty Drop Over Cable Covers
1 Channel - 1.25" & 2.25" - Rated For Vehicles or Pedestrians
0.0 / 5
Linebacker®Drop Over Cable Cover Features
- Protects Cables Up To 2.25” Outside Diameter
- Patented T Connectors To Extend To Any Length
- Made From All Weather Polyurethane
- Light Weight & Easy To Transport

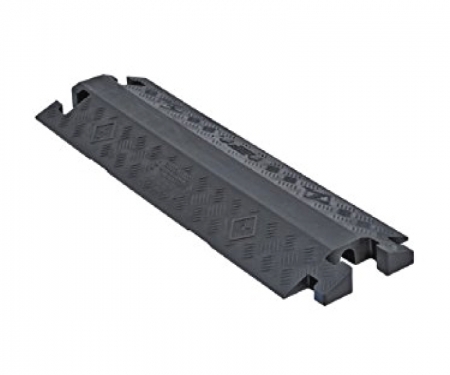

- Three Color Options Available
Linebacker Drop-Over & Open Top Protectors
Linebacker® Drop Over Cable Protector offers a quick solution to protect minimal runs of cable and hose lines. These 1 channel models provide solutions for heavy-duty, high load-bearing operations as well as lighter duty, general-purpose needs. Protect valuable electrical cables, cords and hose lines from damage and abuse while ensuring a method of safe passage for vehicles and pedestrian traffic. Ideal for heavy trucks and forklifts in industrial environments, such as construction sites, where extra heavy duty cable protection is required due to constant heavy truck and vehicle traffic.
A case study published by the Transportation Department in 2013 revealed the need to place barriers and cable covers for reducing the number of collisions on 4-lane and 6-feet wide highways. Median crash patterns, including T-type intersections, can be secured with the use of linebacker drop over cable cover. This is essential for mitigating the risk of crashes especially on highways and in high pedestrian traffic areas.
Cable-related incidents are common in areas where hazardous cables are left exposed. This can be resolved by covering the cables with linebacker cable protectors. Our linebacker drop over cord cover is a heavy duty product which is temperature and UV treated to maximize functionality and life of the equipment.
Features of Linebacker Drop Over Cord Covers
UV-Stabilized Construction–Weather-resistant polyurethane construction is further strengthened with UV-stabilizing technology that decreases the chances of damage or fires due to extreme temperatures. It is also resistant to corrosion or rusting.
Modular Interlocking Design – Setting up, disassembling, storing and transporting linebacker drop over cable cover has been made easy with its unique modular interlocking design, which also makes it light-weight and more durable.
MUTCD Safe Colors – MUTCD has designated all cable covers to be yellow and black to ensure better visibility at night or in low light areas. The linebacker drop over cable cover is easily visible even in areas with dim light. In bright lights, the linebacker drop over cord cover is easily visible from a distance of almost 250-feet. This is essential for the safety of pedestrian and vehicle traffic. If linebacker drop over cable protector is placed right after a road curve, a stop / slow paddle sign should be placed at least 50 feet before the curve.
Increased Working Temperature –The linebacker drop over cable covers can withstand extreme temperatures from -40° F to 120° F.
T-Connectors–Each linebacker drop over cable protector is provided with T-connectors which can be used to connect the protectors with similar products for extended cover.
Increased Load Capacity – The number of channels, installation technique and manufacturing determine the load capacity of these cord covers. The load bearing capacity increases with the number of channels in a linebacker drop over cable protector. The load bearing capacity of 2-channel linebacker cord cover is 10,880 lbs per tire and 21,760 lbs per axle. It is 20,150 lbs per tire and 40,300 lbs per axle for 3-channel linebacker drop over cord cover and 14,210 lbs per tire, and 28,420 lbs per axle.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Areas of Application and Use
Linebacker drop over cable protector can be used for a wide variety of commercial, business and industrial applications; a few of the areas have been mentioned below:
- Convention centers
- Music studios, dance halls and performance centers
- Construction sites
- Arenas
- Amphitheaters
- Indoor and outdoor industrial areas
- Race tracks
- Festivals
- Roads and highways
- Outdoor sports events
- Exhibition halls
- Fairs and amusement parks
Safety Standards
Linebacker drop over cord cover has been designed and manufactured in compliance with safety standards of MUTCD, OSHA, RoHS, REACH and NEC. The linebacker drop over cable cover is manufactured, treated and finished in the US to ensure that each product is of the highest quality.
DISCLAIMER: PRODUCTS ARE MADE TO ORDER. MANUFACTURING LEAD TIME MAY APPLY. PLEASE CALL TO CONFIRM STOCK OR DELIVERY TIME WINDOW.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Installation Guide
The linebacker drop over cord cover is easy to transport and install. Make sure to prepare the surface of placement before installation. The surface area should be smooth and free from holes or bumps. Install two linebacker covers at least 3 feet apart from each other.
Other installation tips include:
- Cable protectors should not be overloaded with cables/wires etc.
- Sensitive cables should be placed closer to the hinge side.
Product Details
Linebacker Drop-Over & Open Top Protectors
Linebacker® Drop Over Cable Protector offers a quick solution to protect minimal runs of cable and hose lines. These 1 channel models provide solutions for heavy-duty, high load-bearing operations as well as lighter duty, general-purpose needs. Protect valuable electrical cables, cords and hose lines from damage and abuse while ensuring a method of safe passage for vehicles and pedestrian traffic. Ideal for heavy trucks and forklifts in industrial environments, such as construction sites, where extra heavy duty cable protection is required due to constant heavy truck and vehicle traffic.
A case study published by the Transportation Department in 2013 revealed the need to place barriers and cable covers for reducing the number of collisions on 4-lane and 6-feet wide highways. Median crash patterns, including T-type intersections, can be secured with the use of linebacker drop over cable cover. This is essential for mitigating the risk of crashes especially on highways and in high pedestrian traffic areas.
Cable-related incidents are common in areas where hazardous cables are left exposed. This can be resolved by covering the cables with linebacker cable protectors. Our linebacker drop over cord cover is a heavy duty product which is temperature and UV treated to maximize functionality and life of the equipment.
Features of Linebacker Drop Over Cord Covers
UV-Stabilized Construction–Weather-resistant polyurethane construction is further strengthened with UV-stabilizing technology that decreases the chances of damage or fires due to extreme temperatures. It is also resistant to corrosion or rusting.
Modular Interlocking Design – Setting up, disassembling, storing and transporting linebacker drop over cable cover has been made easy with its unique modular interlocking design, which also makes it light-weight and more durable.
MUTCD Safe Colors – MUTCD has designated all cable covers to be yellow and black to ensure better visibility at night or in low light areas. The linebacker drop over cable cover is easily visible even in areas with dim light. In bright lights, the linebacker drop over cord cover is easily visible from a distance of almost 250-feet. This is essential for the safety of pedestrian and vehicle traffic. If linebacker drop over cable protector is placed right after a road curve, a stop / slow paddle sign should be placed at least 50 feet before the curve.
Increased Working Temperature –The linebacker drop over cable covers can withstand extreme temperatures from -40° F to 120° F.
T-Connectors–Each linebacker drop over cable protector is provided with T-connectors which can be used to connect the protectors with similar products for extended cover.
Increased Load Capacity – The number of channels, installation technique and manufacturing determine the load capacity of these cord covers. The load bearing capacity increases with the number of channels in a linebacker drop over cable protector. The load bearing capacity of 2-channel linebacker cord cover is 10,880 lbs per tire and 21,760 lbs per axle. It is 20,150 lbs per tire and 40,300 lbs per axle for 3-channel linebacker drop over cord cover and 14,210 lbs per tire, and 28,420 lbs per axle.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Areas of Application and Use
Linebacker drop over cable protector can be used for a wide variety of commercial, business and industrial applications; a few of the areas have been mentioned below:
- Convention centers
- Music studios, dance halls and performance centers
- Construction sites
- Arenas
- Amphitheaters
- Indoor and outdoor industrial areas
- Race tracks
- Festivals
- Roads and highways
- Outdoor sports events
- Exhibition halls
- Fairs and amusement parks
Safety Standards
Linebacker drop over cord cover has been designed and manufactured in compliance with safety standards of MUTCD, OSHA, RoHS, REACH and NEC. The linebacker drop over cable cover is manufactured, treated and finished in the US to ensure that each product is of the highest quality.
Product Manuals
Installation Guide
The linebacker drop over cord cover is easy to transport and install. Make sure to prepare the surface of placement before installation. The surface area should be smooth and free from holes or bumps. Install two linebacker covers at least 3 feet apart from each other.
Other installation tips include:
- Cable protectors should not be overloaded with cables/wires etc.
- Sensitive cables should be placed closer to the hinge side.
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Videos
DISCLAIMER: PRODUCTS ARE MADE TO ORDER. MANUFACTURING LEAD TIME MAY APPLY. PLEASE CALL TO CONFIRM STOCK OR DELIVERY TIME WINDOW.
