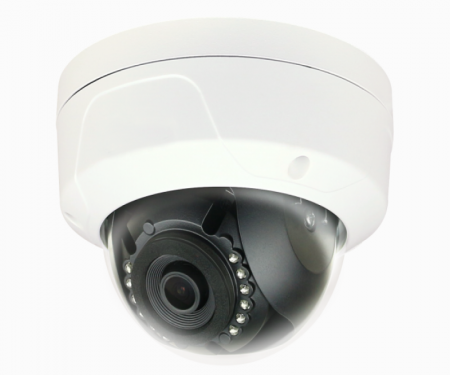

Platinum Network Mini WiFi Dome Camera 2.1MP

2.1 MP High Definition w/ Full HD Display from a 2.8mm Fixed Lens

0.0 / 5

(0)

Platinum Network Mini WiFi Dome Camera 2.1MP

  • 2.1 MP High Definition
  • 12 IR LED up to 70ft
  • 3D Digital Noise Reduction(DNR), Back Light Compensation (BLC), and Digital Wide Dynamic Range (DWDR)
  • IP67, Vandal Proof
  • 3-Axis adjustment
  • Wide FoV
  • DC 12V/ PoE
See More Technical Specifications


Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Camera Series Platinum Series
Camera Resolution 2.1MP / 1080P
Camera Technology IP / Network
Camera Housing Dome
Featured Product No
Specifications



Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2,AGC ON),0 Lux withIR
Shutter Speed 1/3 s to 1/10,000 s
Lens 2.8mm,Angle of view:106 °
Lens Mount M12
Day & Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range Digital WDR
Angle Adjustment Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355°
Compression Standard
Video Compression H.264 / MJ PEG
H.264 Type Main Profile
Video Bit Rate 32 Kbps ~ 8 Mbps
Dual Streams Support
Max. Resolution 1920 × 1080
Frame Rate 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
Image Setting Rotate Mode, Saturation, Brightnes s , Contras t, Sharpnes s adjus table by client software or web brows er
BLC Support, zone configurable
ROI Codec Support
Network
Network Storage NAS (Support NFS,SMB/CIFS),
Alarm Trigger Motion detection, Tampering alarm, Network dis connect, IP addres s conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General One- key res et, Flash- prevention, dual s tream, mirror, pas sword protection, privacy mas k, watermark, IP addres s fitering, Anonymous acces s
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication Interface 1 RJ 45 10M/100M Ethernet port
On-Board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128GB
Reset Yes
Wi-Fi
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters *The performance varies based on actual environment
General
Working Temperature /Humidity "- 22 °F ~ 140 °F (- 30 °C ~ 60 °C) Humidity 95% or les s (non- condens ing)"
Power Supply DC12V ±10%, PoE (802.3af)
Power Consumption Max. 5.3W
IR Range 12 IR LED up to 70ft
Weather Proof Ratings IP67
Impact Protection IEC60068-2-75Eh, 20J; EN50102, up to IK10
Dimensions Φ4.4"×3.2"(Φ111×82.0mm)
Weight 1.1 lbs (500g)
