Ultratech® Inlet Guards
Protect drains & inlets Without lifting any grates
0.0 / 5
Ultratech® Inlet Guards Features
- Keeps dirt, sand, sediment, trash, and debris out of drains.
- Quick and easy installation using built-in magnets — no more lifting of heavy catch basin grates.
- Available in several sizes for street drains, combination drains and trench drains. Custom sizes also available.
- Heavy-duty, reinforced material (non-woven, polyester spun) allows up to 92 gal/ft2/min. through drains.
- Low profile design can be driven over and is unobtrusive to traffic and personnel.
- Ultra-Inlet Guard Plus also available. Includes built-in overflow port to help prevent flooding and/or ponding during heavy rainfall.
- Geotextile material helps remove oil and other hydrocarbons from the stormwater flow.
Protect drains and inlets WITHOUT lifting any grates! If the speed of installation and convenience top the list of features you are looking for in a stormwater product, then the Ultra-Inlet Guard should be a serious consideration. Heavy-duty geotextile material effectively removes oil and sediment from rainfall. And strong, rare earth magnets sewn into each corner make installation quick and easy.
Protect drains and inlets WITHOUT lifting any grates!
If the speed of installation and convenience top the list of features you are looking for in a stormwater product, then the Ultra-Inlet Guard should be a serious consideration. Heavy-duty geotextile material effectively removes oil and sediment from rainfall. And strong, rare earth magnets sewn into each corner make installation quick and easy.
- Keeps dirt, sand, sediment, trash, and debris out of drains.
- Quick and easy installation using built-in magnets — no more lifting of heavy catch basin grates.
- Available in several sizes for street drains, combination drains and trench drains. Custom sizes also available.
- Heavy-duty, reinforced material (non-woven, polyester spun) allows up to 92 gal/ft2/min. through drains.
- Low profile design can be driven over and is unobtrusive to traffic and personnel.
- Ultra-Inlet Guard Plus also available. Includes built-in overflow port to help prevent flooding and/or ponding during heavy rainfall.
- Geotextile material helps remove oil and other hydrocarbons from the stormwater flow.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Ultra-Inlet Guard & Inlet Guard Plus
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 9170 | Oil & Sediment Model | 24 x 24 x 0 (609.6 x 609.6 x 0) | 3 (1.4) |
| 9160 | Oil & Sediment Plus Model | 24 x 24 x 0 (609.6 x 609.6 x 0) | 5 (2.3) |
| 9171 | Oil & Sediment Model | 36 x 24 x 0 (914.4 x 609.6 x 0) | 3 (1.4) |
| 9161 | Oil & Sediment Plus Model | 36 x 24 x 0 (914.4 x 609.6 x 0) | 5 (2.3) |
| 9172 | Oil & Sediment Model | 48 x 24 x 0 (1219.2 x 609.6 x 0) | 3 (1.4) |
| 9162 | Oil & Sediment Plus Model | 48 x 24 x 0 (1219.2 x 609.6 x 0) | 5 (2.3) |

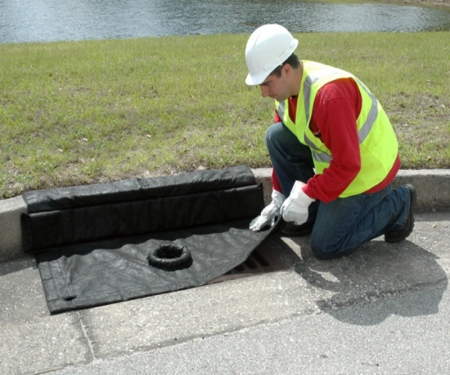

Ultra-Inlet Guard & Inlet Guard Plus - Curb-Style
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 9173 | Oil & Sediment Model, Curb Style | 24 x 24 x 0 (609.6 x 609.6 x 0) | 3 (1.4) |
| 9163 | Oil & Sediment Model, Curb Style | 24 x 24 x 0 (609.6 x 609.6 x 0) | 5 (2.3) |
| 9174 | Oil & Sediment Model, Curb Style | 36 x 24 x 0 (914.4 x 609.6 x 0) | 4 (1.8) |
| 9164 | Oil & Sediment Model, Curb Style | 36 x 24 x 0 (914.4 x 609.6 x 0) | 5 (2.3) |
| 9175 | Oil & Sediment Model, Curb Style | 48 x 24 x 0 (1219.2 x 609.6 x 0) | 4 (1.8) |
| 9165 | Oil & Sediment Model, Curb Style | 48 x 24 x 0 (1219.2 x 609.6 x 0) | 6 (2.7) |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I use the Ultra-Inlet Guard instead of one of your other stormwater management products?
The Ultra-Inlet Guard is one of, if not, the easiest stormwater management products to install. No grates to lift, no fabric to pinch, no cutting necessary. Simply line it up with the grating and lay it on top. The magnets do all the work.
In addition to the ease of installation, the fact that the unit lays on top of the drain means that clean up (dirt/sediment/trash/debris removal) is as simple as sweeping off the surface. The grate doesn't have to be lifted or removed because everything is kept at street level.
Why WOULDN'T I use the Ultra-Inlet Guard instead of one of your other stormwater management products?
The Ultra-Inlet Guard and Inlet Guard Plus are held in place by magnets. These are exceptionally strong magnets and more than enough to keep the unit in place under normal circumstances. However, unlike products that are installed under the grating, the Inlet Guard is more susceptible to damage from street sweepers and to theft/vandalism.
Also, because the units are held in place by magnets at each corner, the Ultra-Inlet Guard and Inlet Guard Plus are not a "one size fits all" type of product. Some of UltraTech's stormwater management products can be trimmed/cut to fit the drain but the Inlet Guard must match the drain dimensions very closely in order for it to be effective.
What's the difference between the Ultra-Inlet Guard and the Ultra-Inlet Guard Plus?
The only difference in the two models is that the Plus Models have an overflow port that will allow untreated water to pass through in the case of excessive rainfall in order to prevent flooding/ponding.

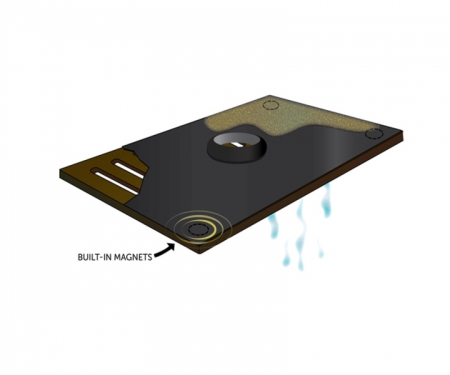

How many magnets are used in each Ultra-Inlet Guard?
The 24" x 24" and 24" x 36" size have four magnets each, one in each corner. The 24" x 48" size has six magnets, four in each corner and one centered on both of the 48" sides.
Are the magnets removable/replaceable?
No, the magnets are sewn into the material and cannot be removed without damaging the Inlet Guard.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Protect drains and inlets WITHOUT lifting any grates!
If the speed of installation and convenience top the list of features you are looking for in a stormwater product, then the Ultra-Inlet Guard should be a serious consideration. Heavy-duty geotextile material effectively removes oil and sediment from rainfall. And strong, rare earth magnets sewn into each corner make installation quick and easy.
- Keeps dirt, sand, sediment, trash, and debris out of drains.
- Quick and easy installation using built-in magnets — no more lifting of heavy catch basin grates.
- Available in several sizes for street drains, combination drains and trench drains. Custom sizes also available.
- Heavy-duty, reinforced material (non-woven, polyester spun) allows up to 92 gal/ft2/min. through drains.
- Low profile design can be driven over and is unobtrusive to traffic and personnel.
- Ultra-Inlet Guard Plus also available. Includes built-in overflow port to help prevent flooding and/or ponding during heavy rainfall.
- Geotextile material helps remove oil and other hydrocarbons from the stormwater flow.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Ultra-Inlet Guard & Inlet Guard Plus
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 9170 | Oil & Sediment Model | 24 x 24 x 0 (609.6 x 609.6 x 0) | 3 (1.4) |
| 9160 | Oil & Sediment Plus Model | 24 x 24 x 0 (609.6 x 609.6 x 0) | 5 (2.3) |
| 9171 | Oil & Sediment Model | 36 x 24 x 0 (914.4 x 609.6 x 0) | 3 (1.4) |
| 9161 | Oil & Sediment Plus Model | 36 x 24 x 0 (914.4 x 609.6 x 0) | 5 (2.3) |
| 9172 | Oil & Sediment Model | 48 x 24 x 0 (1219.2 x 609.6 x 0) | 3 (1.4) |
| 9162 | Oil & Sediment Plus Model | 48 x 24 x 0 (1219.2 x 609.6 x 0) | 5 (2.3) |
Ultra-Inlet Guard & Inlet Guard Plus - Curb-Style
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| 9173 | Oil & Sediment Model, Curb Style | 24 x 24 x 0 (609.6 x 609.6 x 0) | 3 (1.4) |
| 9163 | Oil & Sediment Model, Curb Style | 24 x 24 x 0 (609.6 x 609.6 x 0) | 5 (2.3) |
| 9174 | Oil & Sediment Model, Curb Style | 36 x 24 x 0 (914.4 x 609.6 x 0) | 4 (1.8) |
| 9164 | Oil & Sediment Model, Curb Style | 36 x 24 x 0 (914.4 x 609.6 x 0) | 5 (2.3) |
| 9175 | Oil & Sediment Model, Curb Style | 48 x 24 x 0 (1219.2 x 609.6 x 0) | 4 (1.8) |
| 9165 | Oil & Sediment Model, Curb Style | 48 x 24 x 0 (1219.2 x 609.6 x 0) | 6 (2.7) |
Product Manuals
Frequently Asked Questions
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Why would I use the Ultra-Inlet Guard instead of one of your other stormwater management products?
The Ultra-Inlet Guard is one of, if not, the easiest stormwater management products to install. No grates to lift, no fabric to pinch, no cutting necessary. Simply line it up with the grating and lay it on top. The magnets do all the work.
In addition to the ease of installation, the fact that the unit lays on top of the drain means that clean up (dirt/sediment/trash/debris removal) is as simple as sweeping off the surface. The grate doesn't have to be lifted or removed because everything is kept at street level.
Why WOULDN'T I use the Ultra-Inlet Guard instead of one of your other stormwater management products?
The Ultra-Inlet Guard and Inlet Guard Plus are held in place by magnets. These are exceptionally strong magnets and more than enough to keep the unit in place under normal circumstances. However, unlike products that are installed under the grating, the Inlet Guard is more susceptible to damage from street sweepers and to theft/vandalism.
Also, because the units are held in place by magnets at each corner, the Ultra-Inlet Guard and Inlet Guard Plus are not a "one size fits all" type of product. Some of UltraTech's stormwater management products can be trimmed/cut to fit the drain but the Inlet Guard must match the drain dimensions very closely in order for it to be effective.
What's the difference between the Ultra-Inlet Guard and the Ultra-Inlet Guard Plus?
The only difference in the two models is that the Plus Models have an overflow port that will allow untreated water to pass through in the case of excessive rainfall in order to prevent flooding/ponding.
How many magnets are used in each Ultra-Inlet Guard?
The 24" x 24" and 24" x 36" size have four magnets each, one in each corner. The 24" x 48" size has six magnets, four in each corner and one centered on both of the 48" sides.
Are the magnets removable/replaceable?
No, the magnets are sewn into the material and cannot be removed without damaging the Inlet Guard.
