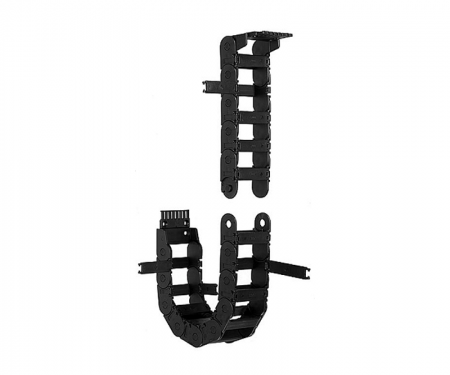

IGUS® E2 Medium 240/250 Series Cable Carrier
Available In Either Inner or Outer Opening For your Convenience
0.0 / 5

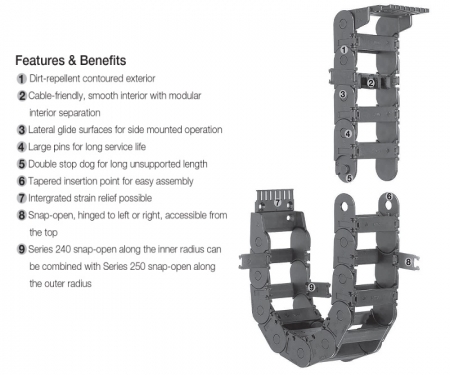

IGUS® E2 Medium 240/250 Series Cable Carrier Features

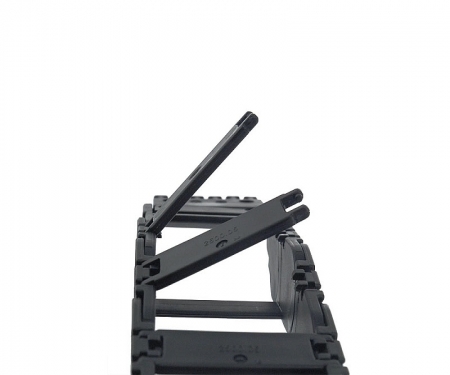

- Snap-open dual hinged to left or right for easy access
- Available with access through inner or outer radius for your convenience
- Tapered insertion point for easy assembly
- Smooth interior for long cable/hose life
- Limited bend radius protects cables for optimal performance
- Large pins for a long service life
- Dirt repelling outside material for durability
- Reinforced stop dog for a safe snap
- Integrated strain relief to extend cable quality
- 250 Series recommended for gliding applications
IGUS® introduces the E2 Medium 240/250 Series, an innovative step towards protection and accessibility. This easy-to-assemble line comes in seven different widths, each one with nine different bend radii. This cable track meets all of the requirements for a fast and effective cable or hose run; along with the guarantee of a long service life also comes the quality of the IGUS® brand.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Material Specifications
Material: igumid G
Permitted Temperature: 40°/+266°F (-40°/130°C)
Gliding Speed Maximum: 16.4 ft/s (5 m/s)
Unsupported V Maximum: 32.8 ft/s (10 m/s)
Flammability Class: VDE 0304 IIC UL94 1H
| 240 Series | 250 Series |
 |  |

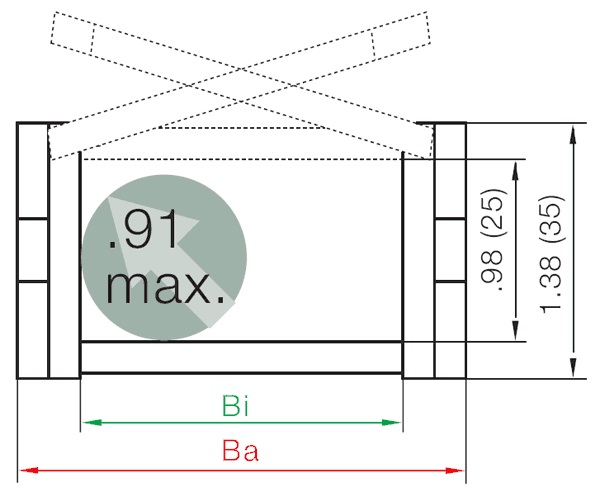

| SERIES 240 ENERGY CHAIN® PART # | SERIES 250 ENERGY CHAIN® PART # | INNER WIDTH BI [IN. (MM)] | OUTER WIDTH BA [IN. (MM)] |
| 240-02 | 250-02 | 0.98 (25) | 1.61 (41) |
| 240-03 | 250-03 | 1.50 (38) | 2.13 (54) |
| 240-05 | 250-05 | 2.24 (57) | 2.87 (73) |
| 240-07 | 250-07 | 3.03 (77) | 3.66 (93) |
| 240-09 | 250-09 | 3.54 (90) | 4.17 (106) |
| 240-10 | 250-10 | 4.06 (103) | 4.69 (119) |
| 240-12 | 250-12 | 4.92 (125) | 5.55 (141) |

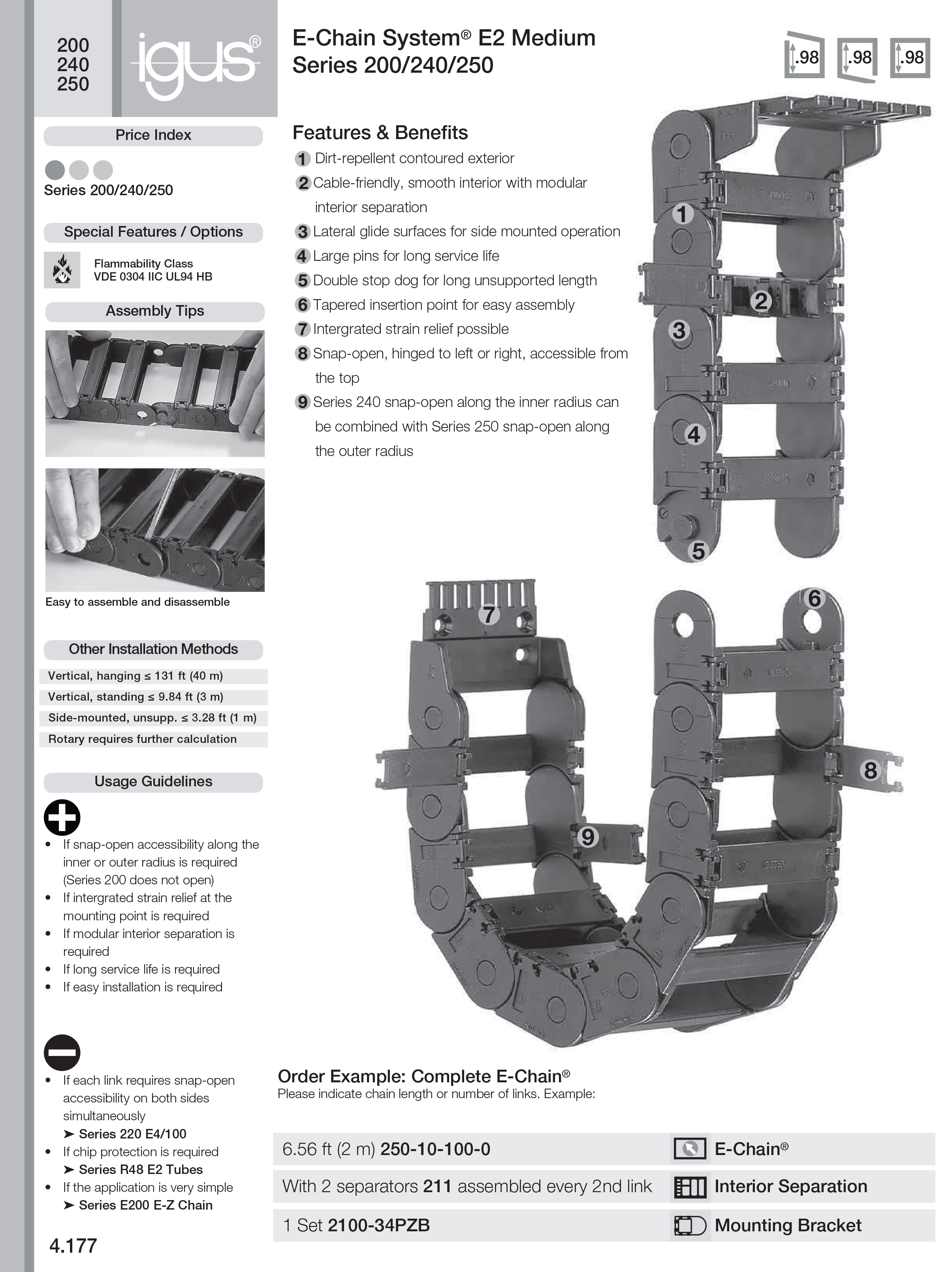

Click the image below for the full data sheet, including details like installation dimensions.
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
IGUS® introduces the E2 Medium 240/250 Series, an innovative step towards protection and accessibility. This easy-to-assemble line comes in seven different widths, each one with nine different bend radii. This cable track meets all of the requirements for a fast and effective cable or hose run; along with the guarantee of a long service life also comes the quality of the IGUS® brand.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
Material Specifications
Material: igumid G
Permitted Temperature: 40°/+266°F (-40°/130°C)
Gliding Speed Maximum: 16.4 ft/s (5 m/s)
Unsupported V Maximum: 32.8 ft/s (10 m/s)
Flammability Class: VDE 0304 IIC UL94 1H
| 240 Series | 250 Series |
| |
| SERIES 240 ENERGY CHAIN® PART # | SERIES 250 ENERGY CHAIN® PART # | INNER WIDTH BI [IN. (MM)] | OUTER WIDTH BA [IN. (MM)] |
| 240-02 | 250-02 | 0.98 (25) | 1.61 (41) |
| 240-03 | 250-03 | 1.50 (38) | 2.13 (54) |
| 240-05 | 250-05 | 2.24 (57) | 2.87 (73) |
| 240-07 | 250-07 | 3.03 (77) | 3.66 (93) |
| 240-09 | 250-09 | 3.54 (90) | 4.17 (106) |
| 240-10 | 250-10 | 4.06 (103) | 4.69 (119) |
| 240-12 | 250-12 | 4.92 (125) | 5.55 (141) |
Click the image below for the full data sheet, including details like installation dimensions.
