Techflex® Flexo® Halar® Braided Cable Sleeving
Low Outgassing & Self Extinguishing - UL-2024 / Plenum Rated
0.0 / 5
Halar Braided Sleeving Features
- Plenum Rated Material
- Very Low Outgassing
- Operating Temperature Range: -103° to 302°F (-75° to 150 °C.)
- Resists Common Chemicals & Solvents
- Expands Up to 150%
- UL-2024 & FAR 25 Approved
- Melt Temp: 464°F / 240°C.
- Cuts Easily With Hot Knife
- RoHS Compliant
Inside Diameters Are Measured as Round Not Flat

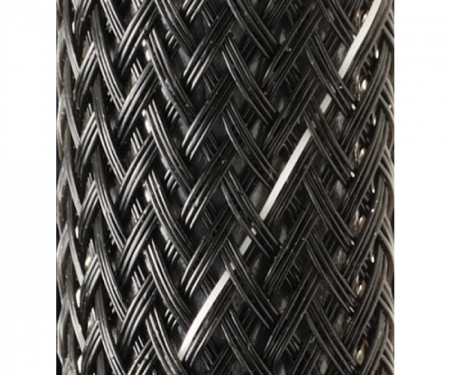

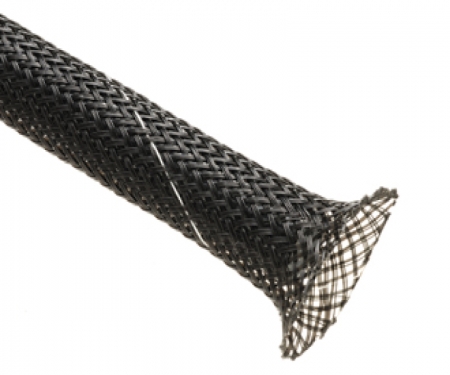

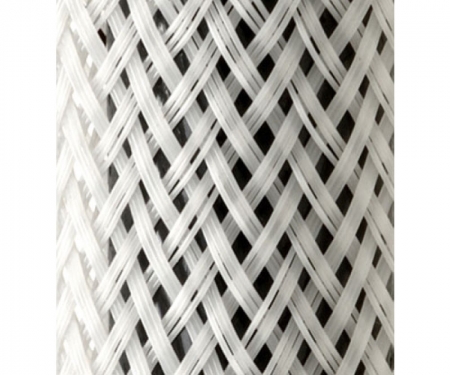

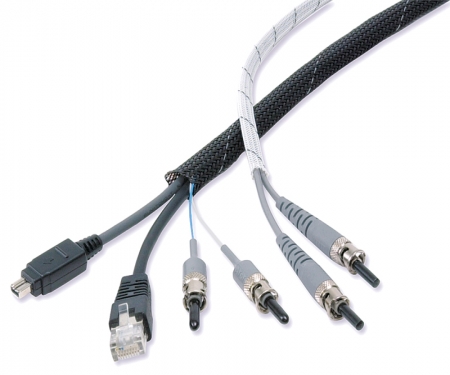

Halar® self-extinguishing braided sleeving is used where flammability, high temperature endurance and low outgassing are primary concerns. Halar® sleeving is braided from 11 mil ethylene chlorotrifluoroethylene (ECTFE) copolymer monofilament. Because of its low flame spread and smoke generation properties, this product meets UL 2024 and NFPA 262 plenum specifications, carries a UL flame resistance rating of VW-1 and exceeds automotive industry requirements of FMVSS 302, as well as aviation industry requirements of FAR 25. Halar® braided sleeving resists a wide range of corrosive chemicals and organic solvents, including strong acids, chlorine and aqueous caustics. Halar® sleeving ECTFE also maintains useful properties on exposure to cobalt 60 radiation at doses up to 200 megarads.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 3/4" 2" | HTN0.13 HTN0.25 HTN0.38 HTN0.50 HTN0.75 HTN1.00 HTN1.25 HTN1.75 HTN2.00 | 3/32" 1/8" 3/16" 1/4" 1/2" 5/8" 3/4" 1 1/4" 1 1/2" | 1/4" 7/16" 5/8" 3/4" 1 1/4" 1 5/8" 1 3/4" 2 3/4" 3 1/2" | 1,000' 1,000' 500' 500' 250' 250' 250' 200' 200' | 225' 200' 125' 100' 75' 65' 50' 30' 50' | 3 3 3 3 3 3 3 3 3 | 0.25 0.38 0.86 1.10 1.70 2.20 2.60 4.40 4.60 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .011 |
| Flammability Rating | VW-1, FAR 25 |
| Recommended Cutting | Hot Knife |
| Colors | 3 |
| Wall Thickness | .028 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 4.3 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.68 |
| Moisture Absorption % (ASTM D-570) | .02 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .18 |
| CVCM | .02 |
| WVR | .00 |
| Smoke D-Max (ASTM E-662) | 94 |
| Outgassing | Low |
| Oxygen Index (ASTM D-2863) | 64 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 1 |
| Strong Oxidants | 1 |
| Esters/Ketones | 2 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -103°F/-75°C |
| Maximum Continuous (MIL-I-23053) | 302°F/150°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | |
