Techflex® Gator Wrap Heavy Duty Braided Cable Sleeving
Highly Abrasion Resistant - Wrap Around Sleeving - Hook & Loop Closure
0.0 / 5
Gator Wrap Sleeving Features
- Proprietary Abrasion Fabric
- Extremely Secure Hook & Loop Closure
- Extreme Puncture & Tear Resistant
- Resistant To Water & Petroleum
- Sheds Surface Moisture
Require Splice Free? Please Call 1-877-284-7760
Inside Diameters Are Measured as Round Not Flat

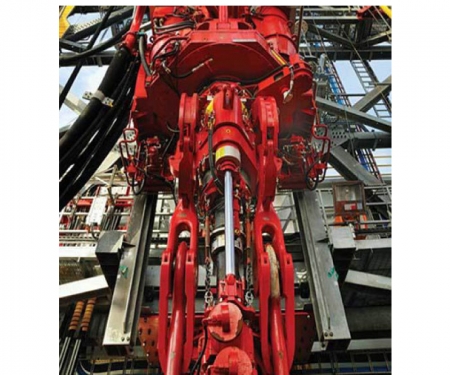

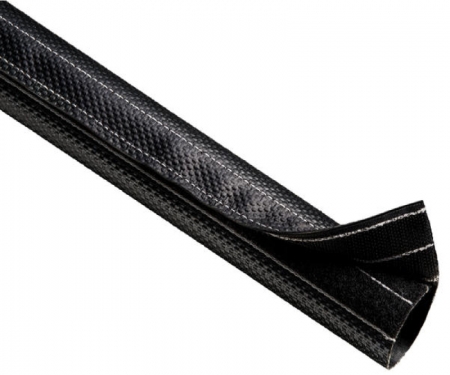

Gator Wrap is made of proprietary extreme abrasion fabric. This protection sleeve is used for bundling and wrapping hoses and cables. Gator Wrap is an excellent choice for heavy industrial areas that require extreme durability and extremely high abrasion resistance. This heavy duty abrasion sleeve is being used in the oil field industry on frac hoses and on drill rigs, and in the timber industry to replace spiral wrap. The reusable sleeve feature Mil-Spec extreme Hook & Loop closure which allows installation without disconnecting hoses and can reduce labor time by 70%.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Hook&Loop Width | Standard Spool Put-Ups | Colors | Lbs/ 100' | |
| Bulk | Shop | ||||||
| 1 3/8" 1 3/4" 2" 2 1/2" 3" 3 1/2" 4" 4 1/2" 5" 6" | DWG1.38BK DWG1.75BK DWG2.00BK DWG2.50BK DWG3.00BK DWG3.50BK DWG4.00BK DWG4.50BK DWG5.00BK DWG6.00BK | .05" .05" .05" .05" .05" .05" .05" .05" .05" .05" | 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" 1 1/4" | 75' 75' 75' 75' 75' 75' 75' 75' 75' 75' | 25' 25' 25' 25' 25' 25' 25' 25' 25' 25' | BK BK BK BK BK BK BK BK BK BK | 15.54 16.90 18.62 21.60 24.93 26.73 29.54 33.45 36.81 42.35 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | N/A |
| Flammability Rating | N/A |
| Recommended Cutting | Scissors |
| Colors | 1 |
| Wall Thickness | .05 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Extremely High! |
| Specific Gravity | N/A |
| Moisture Absorption % (ASTM D-570) | N/A |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | NA |
| CVCM | NA |
| WVR | NA |
| Smoke D-Max (ASTM E-662) | NA |
| Outgassing | NA |
| Oxygen Index (ASTM D-2863) | NA |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 1 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 4 |
| Strong Oxidants | 4 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -60°F/-51°C |
| Maximum Continuous (MIL-I-23053) | 250°F/121°C |
| Other Information | |
| Halogen Free | N/A |
| RoHS | Yes |
| UL/CSA | No |
