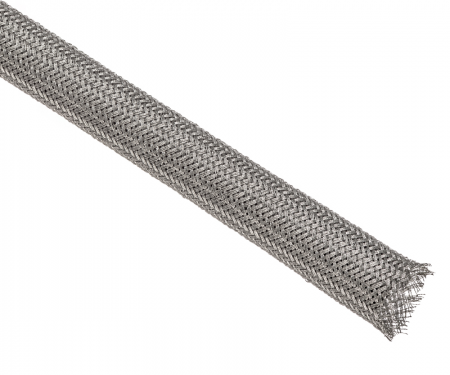

Techflex® Flexo® Stainless Steel XC Braided Cable Sleeving
Designed With Tighter Weave For Xtra Coverage - (1/8" - 1-1/2" Sizes)
0.0 / 5
Flexo Stainless Steel XC Sleeving Features
- Material: Type 304 Stainless Steel
- Virtually Indestructible SS-304
- Resists Common Chemicals & Solvents
- Will Not Rust or Discolor
- Resists UV Damage
- Cuts Easily with Shears
- Highly Abrasion & UV Resistant
- Provides Fuller Coverage
- Melt Temp: 2,650°F / 1,454°C
- Inside Diameters Are Measured as Round Not Flat

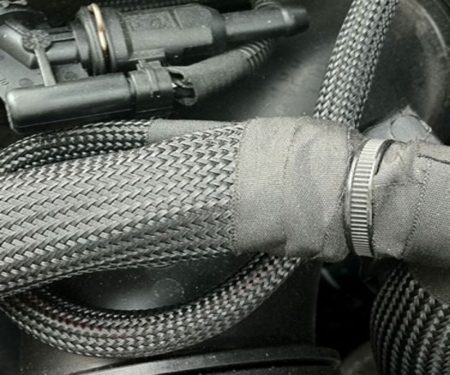

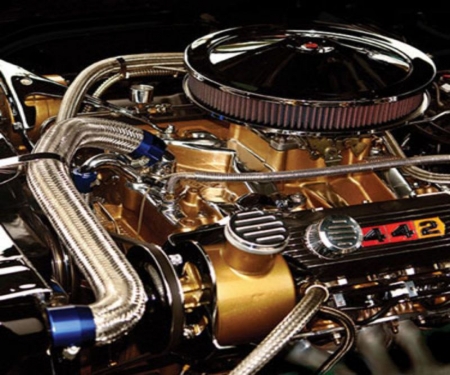

Flexo Stainless Steel XC Sleeving protects hoses from wear and blowout like nothing else. It looks great in any application and is strong and durable. The new full coverage Flexo Stainless XC sleeving provides the same look and protection as custom built Stainless Steel hoses at a fraction of the cost, saving time and money during the purchsing process. Braided from 304 Stainless Steel filaments. Flexo SS XC resists all common automotive chemicals, salt water and won't discolor or rust while providing an extreme level of abrasion protection on any application. If you absolutely Require Splice Free? Please Call 1877-284-7760 to Confirm.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nom. Size | Product Part # | Wall Thick. | Expansion Range | Standard Spool Put-Ups | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" | SSL0.06SV SSL0.13SV SSL0.25SV SSL0.38SV SSL0.50SV SSL0.75SV SSL1.00SV SSL1.25SV SSL1.50SV | .013" .013" .013" .013" .013" .013" .025" .025" .025" | - 1/16" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" | - 11/32" 13/32" 5/8" 3/4" 1 1/4" 1 5/16" 1 3/4" 2 1/8" | 250' 250' 250' 250' 100' 100' 100' 100' 100' | 100' 100' 100' 100' 50' 50' 50' 50' 50' | - 1.20 2.20 2.54 3.15 6.90 9.78 13.70 16.60 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .005 - .010 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .013 - .025 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .00 |
| CVCM | .00 |
| WVR | .00 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 2 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 2 |
| Operating Temperatures | |
| Melt (ASTM D-2117) | 2,650°F/1,454°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Flexo Stainless Steel XC Sleeving protects hoses from wear and blowout like nothing else. It looks great in any application and is strong and durable. The new full coverage Flexo Stainless XC sleeving provides the same look and protection as custom built Stainless Steel hoses at a fraction of the cost, saving time and money during the purchsing process. Braided from 304 Stainless Steel filaments. Flexo SS XC resists all common automotive chemicals, salt water and won't discolor or rust while providing an extreme level of abrasion protection on any application. If you absolutely Require Splice Free? Please Call 1877-284-7760 to Confirm.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nom. Size | Product Part # | Wall Thick. | Expansion Range | Standard Spool Put-Ups | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/16" 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" | SSL0.06SV SSL0.13SV SSL0.25SV SSL0.38SV SSL0.50SV SSL0.75SV SSL1.00SV SSL1.25SV SSL1.50SV | .013" .013" .013" .013" .013" .013" .025" .025" .025" | - 1/16" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" | - 11/32" 13/32" 5/8" 3/4" 1 1/4" 1 5/16" 1 3/4" 2 1/8" | 250' 250' 250' 250' 100' 100' 100' 100' 100' | 100' 100' 100' 100' 50' 50' 50' 50' 50' | - 1.20 2.20 2.54 3.15 6.90 9.78 13.70 16.60 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .005 - .010 |
| Flammability Rating | Non-Flammable |
| Recommended Cutting | Shears |
| Colors | 1 |
| Wall Thickness | .013 - .025 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .00 |
| CVCM | .00 |
| WVR | .00 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 1 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 1 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 2 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 2 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 2 |
| Operating Temperatures | |
| Melt (ASTM D-2117) | 2,650°F/1,454°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
