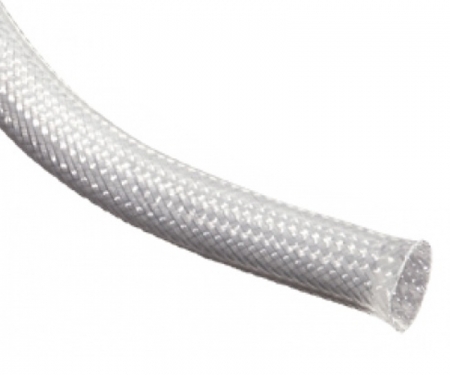

Techflex® Flexo® 6 mil Braided Cable Sleeving
High Density Fine Thread Sleeving - Can Be Used For Filtration
0.0 / 5
Flexo 6 Mil Sleeving Features
- Ultra Thin for Specialized Fiber Applications
- Economical, Long Lasting Filtration Solutions
- Recommended Cutting with Hot knife
- Operating Temperature Range: -94° to 257°F (-70° to 125°C.)
- Easy to Engineer to Unique Specifications
- Reduced Wall Thickness
- 482°F / 250°C. Melt Temp.
Inside Diameters Are Measured as Round Not Flat
One of the most unique applications for expandable braided sleeving is the filtration of small particles from flowing liquids. Our Flexo 6 Mil is a great off the shelf solution. Flexo 6 Mil uses chemical resistant PET fiber to create an ultra flexible sleeve. The small monofilaments bond easily when heated to create lasting shapes, or with one end sealed completely, a durable filtration sock. Flexo 6 Mil is densely braided to provide extraordinary filtration and can easily be backflushed for cleaning without losing its shape or properties.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/8" 1/4" 5/16" 3/8" 1/2" 5/8" | FFN0.13CL FFN0.25CL FFN0.31CL FFN0.38CL FFN0.50CL FFN0.63CL | 1/16" 3/16" 5/16" 5/16" 1/2" 1/2" | 1/2" 3/8" 7/16" 5/8" 3/4" 1" | 1,000' 1,000' 500' 500' 500' 250' | 225' 200' 150' 125' 100' 100' | CL CL CL CL CL CL | 0.18 0.33 0.43 0.53 0.82 1.00 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .006 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .013 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.3 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 3 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .14 |
| Smoke D-Max (ASTM E-662) | N/A |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | N/A |
| RoHS | Yes |
| UL/CSA | No |
| SVHC | None |
