Techflex® Flexo® Prismix Camo Braided Cable Sleeving
Dual Color Monofilament For Optimal Camouflage
0.0 / 5
Prismix Braided Sleeving Features
- Economical & Easy To Install
- Resists UV Damage
- Dual Colored Monofilament
- Cut & Abrasion Resistance
Require Splice Free? Please Call 1877-284-7760
Inside Diameters Are Measured as Round Not Flat

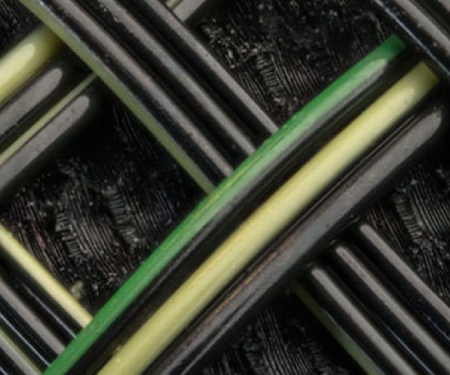

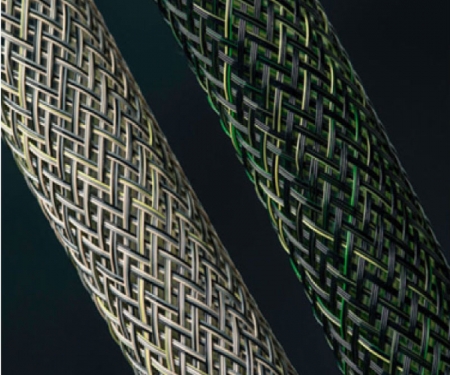

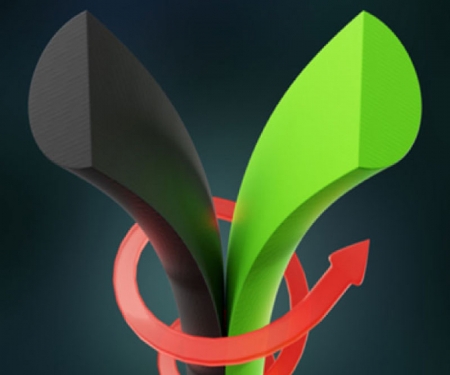

Prismix (PTD) utilizes a cutting-edge dual-colored monofilament to produce never before possible color combinations. This new technology creates and incredible random camouflage in our exclusive new Mix series of products. Be sure to utilize PrisMix on your next adventure for the best braided camo you have ever seen, or not seen! With 2 different colors, Expedition and Trail Mix, PrisMix is a great camouflage sleeving. The effect is a random distribution of colors throughout the entire length of the sleeving, and is visually exciting in use on any adventurous application.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" 1 1/2" 1 3/4" | PTD0.25 PTD0.38 PTD0.50 PTD0.63 PTD0.75 PTD1.00 PTD1.25 PTD1.50 PTD1.75 | 1/8" 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 1" 1 1/4" | 7/16" 1/2" 3/4" 1" 1 1/4" 1 5/8" 1 3/4" 2 1/8" 2 3/4" | 1000' 500' 500' 500' 250' 250' 250' 200' 200' | 200' 125' 100' 100' 75' 65' 50' 40' 30' | 2 2 2 2 2 2 2 2 2 | 0.30 0.57 0.77 0.95 1.20 1.34 1.60 1.96 2.45 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | UL94 |
| Recommended Cutting | Hot Knife |
| Colors | 2 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1-.2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | ||||
| Aromatic Solvents | 2 | |||
| Alipahtic Solvents | 1 | |||
| Chlorinated Solvents | 3 | |||
| Weak Bases | 1 | |||
| Strong Bases | 2 | |||
| Salt Water (O-S-1926) | 1 | |||
| Hydraulic Fluid (MIL-H-5606) | 1 | |||
| Lubricating Oil (MIL-L-7808) | 1 | |||
| De-Icing Fluid (MIL-A-8243) | 1 | |||
| Strong Acids | 3 | |||
| Strong Oxidants | 2 | |||
| Esters/Ketones | 1 | |||
| UV Light | 1 | |||
| Petroleum | 1 | |||
| Fungus (ASTM G-21) | 1 | |||
| Salts | ||||
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | ||||
| Halogen Free | Yes | |||
| RoHS | Yes | |||
| SVHC | None | |||
| UL/CSA | Yes | |||
