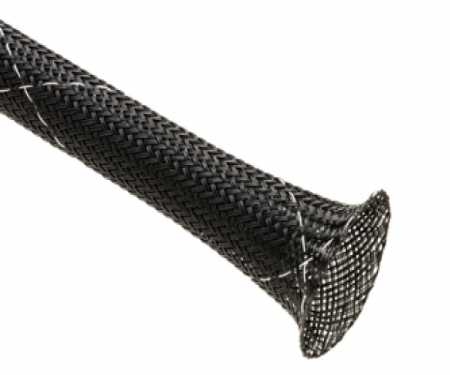

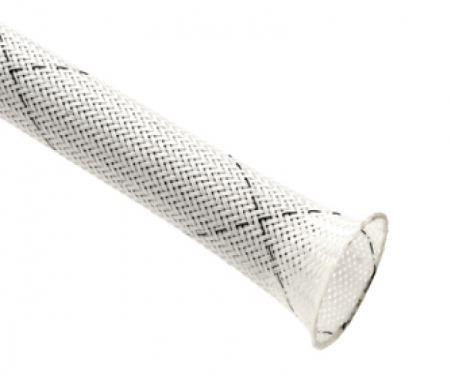

Techflex® Flame Retardant Clean Cut® Non-Fray Cable Sleeving
Non-Fray Expandable Sleeving - Cut With Scissors
0.0 / 5
Flame Retardant Clean Cut Sleeving Features
- Cuts Easily – Neatly and Maintains a Fray Resistant End
- Organic Flame Inhibitor
- VW-1, Mil-202 Approved
- Resists Common Chemicals & Solvents
- Melt Temp: 482°F / 250°C

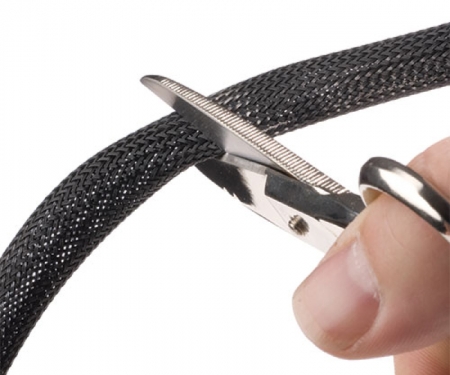

- Cuts Easily with Scissors
- Very High Abrasion Resistance
- Dense Braid for Fuller Coverage
- Operating Temps: -94°F to 257°F (-70°C to 125°C)
Require Splice Free? Please Call 1-877-284-7760
Inside Diameters Are Measured as Round Not Flat

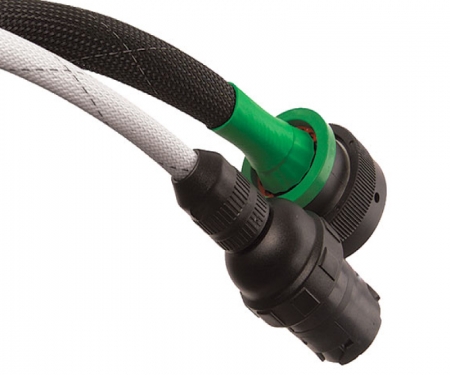

Flame Retardant Clean Cut Sleeving has all of the same qualities that make our standard Clean Cut so easy to cut and install, with the added advantage of a flame inhibitor to provide an extra level of safety in certain applications. Under normal conditions, Flame Retardant Clean Cut Sleeving will quickly self-extinguish and minimize flame spread and incidental damage to surrounding components. The combination of flame retardance, ease of installation and nearly complete coverage makes Flame Retardant Clean Cut Sleeving an ideal solution for many industrial and engineering applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nom. Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk | Shop | ||||
| 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" | CCF0.13 CCF0.25 CCF0.38 CCF0.50 CCF0.75 CCF1.00 CCF1.25 CCF1.50 | 1/8" 5/32" 3/16" 1/4" 5/8" 3/4" 1" 1 1/4" | 1/4" 7/16" 5/8" 3/4" 1" 1 3/16" 1 1/2" 2" | 1,000' 1,000' 500' 500' 250' 250' 250' 250' | 100' 100' 100' 100' 75' 50' 50' 50' | 2 2 2 2 2 2 2 2 | 0.40 0.46 0.74 0.82 1.11 1.24 1.56 1.85 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .008 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife/Scissors |
| Colors | 2 |
| Wall Thickness | .024 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 6 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1 - .2 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | Yes |
| SVHC | None |
