Fabric Heat Shrink Tubing 2:1
Braided Design offers Exceptional Flexibility and Softness
0.0 / 5

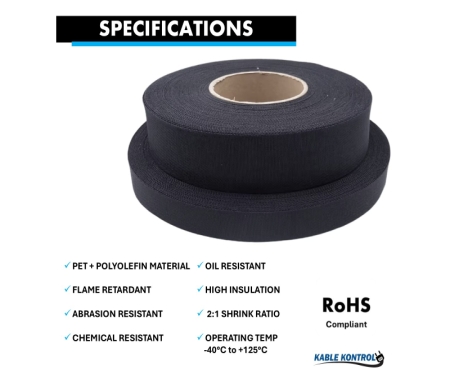

Kable Kontrol® Fabric Heat Shrink Tubing Features

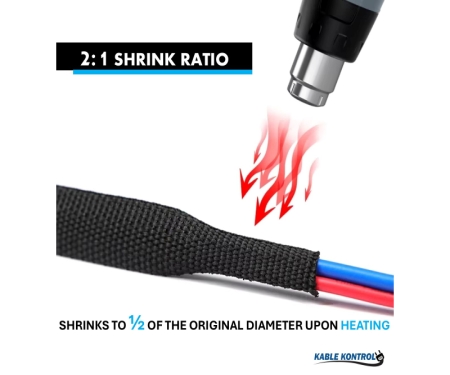

- Shrink Ratio: 2:1 – Shrinks to half its original diameter
- Initial Shrink Temperature: ≥ +80°C
- Fully Shrunk Temperature: ≥ +120°C
- Operating Temperature Range: -40°C to +125°C
- Flame Retardant: Self-extinguishing within 60 seconds
- Environmental Compliance: RoHS certified
- Material: Polyester and Polyolefin filament
- Color: Black
- Easy to Cut: Can be trimmed easily with sharp scissors
- Easy to Install: Quick and easy to install

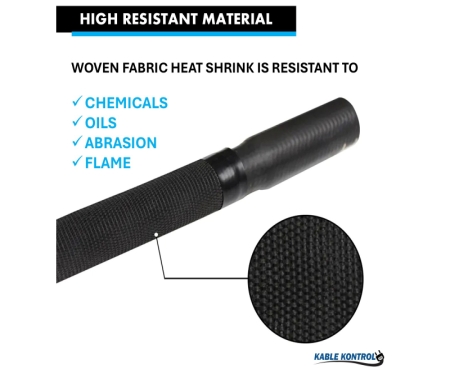

- Durability: Excellent wear resistance and noise reduction
Kable Kontrol® Fabric Heat Shrink Tubing is a versatile and durable wire management solution made from a blend of Polyester and polyolefin filaments. It has 2:1 shrink ratio, it shrinks to half its original diameter when heated, ensuring a tight and secure fit. The braided design offers exceptional flexibility and softness, making it easy to install around hoses and irregular surfaces. With an operating temperature range of -40°C to +125°C and flame retardant properties that self-extinguish within 60 seconds, this tubing is engineered for safety and performance. It also delivers excellent wear resistance and noise reduction, making it ideal for demanding environments. RoHS compliant and easy to trim with sharp scissors, this tubing is a reliable choice for both professional and industrial applications.

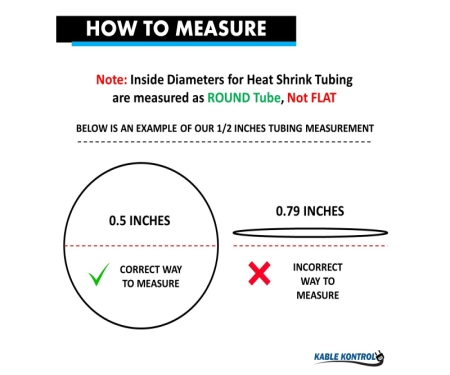

Note: All tubing diameters are measured as round tubes, not flat.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Physical Properties | |
| Operating Range | 40° C – 125° C |
| Initial shrinkage temperature | ≥80° C |
| Completely Shrinkage Temperature | ≥120° C |
| Flammability | Self-extinguishing time＜60s |
| Wear-resistant test | 25000 Circles, No Break |
| Environmental Protection Standard | RoHS |
| Material | Polyester + Polyolefin filament |

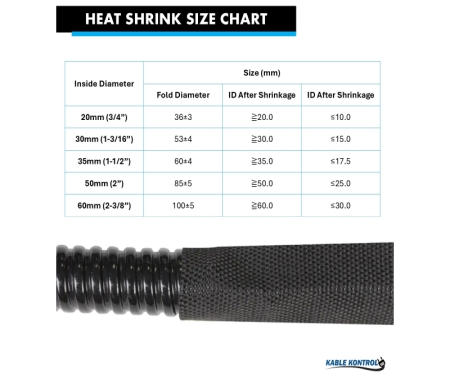

| Inside Diameter | Size (mm) | ||
| Fold Diameter | ID After Shrinkage | ID After Shrinkage | |
| 20mm (3/4”) | 36±3 | ≧20.0 | ≤10.0 |
| 30mm (1-3/16”) | 53±4 | ≧30.0 | ≤15.0 |
| 35mm (1-1/2”) | 60±4 | ≧35.0 | ≤17.5 |
| 50mm (2”) | 85±5 | ≧50.0 | ≤25.0 |
| 60mm (2-3/8”) | 100±5 | ≧60.0 | ≤30.0 |
25 Foot Custom Cut Lengths Are (FINAL SALE) Non-Returnable & Non-Cancellable Once Your Order Has Been Picked.
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Kable Kontrol® Fabric Heat Shrink Tubing is a versatile and durable wire management solution made from a blend of Polyester and polyolefin filaments. It has 2:1 shrink ratio, it shrinks to half its original diameter when heated, ensuring a tight and secure fit. The braided design offers exceptional flexibility and softness, making it easy to install around hoses and irregular surfaces. With an operating temperature range of -40°C to +125°C and flame retardant properties that self-extinguish within 60 seconds, this tubing is engineered for safety and performance. It also delivers excellent wear resistance and noise reduction, making it ideal for demanding environments. RoHS compliant and easy to trim with sharp scissors, this tubing is a reliable choice for both professional and industrial applications.
Note: All tubing diameters are measured as round tubes, not flat.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Physical Properties | |
| Operating Range | 40° C – 125° C |
| Initial shrinkage temperature | ≥80° C |
| Completely Shrinkage Temperature | ≥120° C |
| Flammability | Self-extinguishing time＜60s |
| Wear-resistant test | 25000 Circles, No Break |
| Environmental Protection Standard | RoHS |
| Material | Polyester + Polyolefin filament |
| Inside Diameter | Size (mm) | ||
| Fold Diameter | ID After Shrinkage | ID After Shrinkage | |
| 20mm (3/4”) | 36±3 | ≧20.0 | ≤10.0 |
| 30mm (1-3/16”) | 53±4 | ≧30.0 | ≤15.0 |
| 35mm (1-1/2”) | 60±4 | ≧35.0 | ≤17.5 |
| 50mm (2”) | 85±5 | ≧50.0 | ≤25.0 |
| 60mm (2-3/8”) | 100±5 | ≧60.0 | ≤30.0 |
