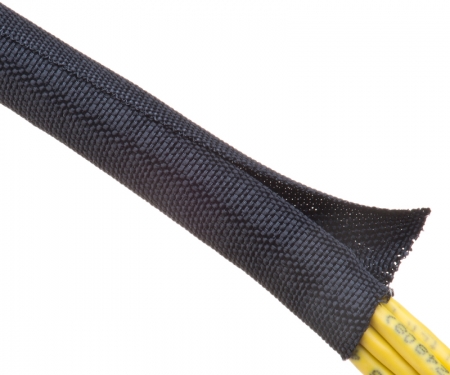

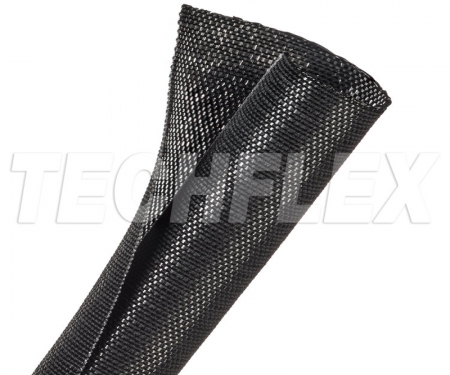

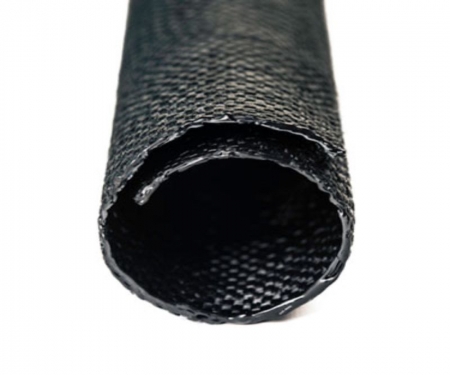

Techflex® F6® Woven Wrap Braided Cable Sleeving
Side Entry / Wrap Around - Extra Abrasion & Cut Durability
0.0 / 5
Techflex® F6 Woven Wrap Sleeving Features
- High Coverage, Self Wrapping Design
- Easy Side Entry / Wrap Around Installation
- More Flexible Than Split Convoluted or Spiral wrap

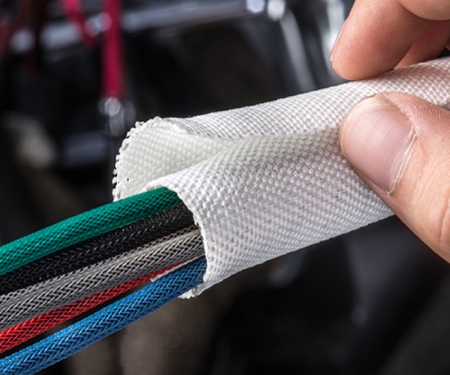

- Ideal for Protecting Components Without Disconnecting Them
- Melt Temp. 482°F
- 51% Overlap Coverage
Techflex® F6 Woven Wrap braided side entry wrap around sleeving is the ideal product for providing superior harness and cable bundle protection at a reasonable price. The wrap-around feature of the F6 Woven Wrap Sleeving allows you to protect your cables without having to disconnect them, making for a very easy installation. By allowing up to 51% overlap, the Techflex® F6 woven wrap has increased flexibility and keeps your cables safe around those sharp edges – fraying is not an issue with this product! Also, the F6 Woven Wrap cuts effortlessly with a hot knife, making it a great product to work with. Unlike its pricier competitors, the F6 woven wrap is available at a very reasonable price while remaining to be the same high caliber product. If you are on a budget and looking for a great quality product that is easy to install, order the F6 Woven Wrap Braided sleeving today! F6 Woven Wrap has been engineered from the ground up to meet the demanding specifications of today's modern wiring harness industry. F6 woven wrap utilizes many of the same characteristics as our original F6 split braided sleeving including the easy wrap-around design and the extra overlap to enclose around important wires in electronic communication and power systems. The new woven construction provides superior elastic flexibility with unbeatable coverage over any harness assembly. Wire harness professionals will also appreciate the increased abrasion resistance F6-Woven Wrap will provide to their cable assemblies.
Require Splice Free? Please Call 1877-284-7760
Inside Diameters Are Measured As Round Not Flat
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Wall Thick. | Standard Spool Put-Ups | Colors | Overlap | Lbs/ 100' | ||
| Bulk | A | B | ||||||
| 1/8" 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 3/4" 1" 1 1/2" 1 3/4" 2" | F6W0.13 F6W0.19 F6W0.25 F6W0.31 F6W0.38 F6W0.50 F6W0.63 F6W0.75 F6W1.00 F6W1.50 F6W1.75 F6W2.00 | .027" .027" .027" .027" .027" .027" .027" .027" .027" .027" .027" .027" | 1,800 1,200' 925' 650' 450' 300' 250' 150' 100' 50' 50' 40' | 900' 600' 450' 325' 225' 150' 125' 100' 75' 25' 10' 10' | 300' 200' 200' 125' 100' 75' 75' 50' 50' - - - | 3 3 3 3 3 3 3 3 3 3 3 3 | 40% 51% 44% 40% 41% 35% 30% 28% 26% 23% 23% 23% | 0.57 0.98 1.10 1.30 1.50 1.80 2.10 2.40 3.20 4.50 5.00 6.00 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .009 |
| Flammability Rating | UL-94 |
| Recommended Cutting | Hot Knife |
| Colors | 2 |
| Wall Thickness | .027 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | 7.5 |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.38 |
| Moisture Absorption % (ASTM D-570) | .1-.2 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 2 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-L-7808) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | 56 |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| SVHC | None |
| UL/CSA | Yes |
