Diamondback® Hose Protector Ramp Kits
3" H to 6.5" H Channel Sizes | Various Kit Options
0.0 / 5
Diamondback® Hose Protector Ramp Kits Features
- Protect Large Lines Up To 6.6” Outside Diameter
- Single Or Multiple Tunnel Configurability
- Multiple Tunnel Sizes For Various Hoses
- Eliminates Potential Hose Damage And Hazards
- Polyurethane construction is abrasion, impact, and weather resistant with a high load-bearing capacity
- Diamond-plate tread surface increases traction
- Yellow caution color for high visibility
- Modular interlocking design is lightweight, easy to transport, setup, disassemble, and store
- Built-in handholds allow for handling with ease and double as attachment points for mounting brackets
- WARNING: Vehicles crossing hose protection ramps must have a clearance of greater than bridge height
Warning: Always Consider Hose Expansion when deciding on Tunnel Diameter.
Hose Bridges Are For Rubber Tired Vehicles Only!

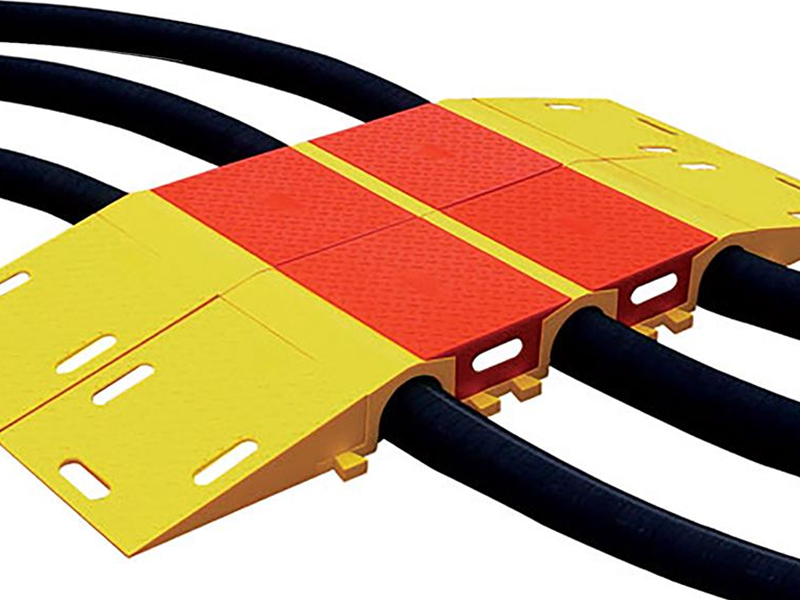

Diamond Back® Hose Protector Ramps provide protection for valuable cable and hose lines while ensuring a safer method of passage got vehicles. The hose protection ramps replace wooden and metal fabricated ramps and can be used to protect lines up to 6.5 inches in diameter. High density, all-weather polyurethane construction is protected from damage by physical pressure and reduces cable and hose maintenance and replacement costs. The lightweight, modular design of interlocking 16 inch wide sections provides multi-length flexibility. Diamond Back® Hose Bridge Systems are intended for temporary installations only.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

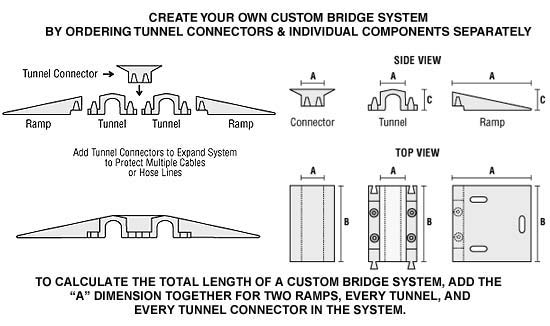

| PART # | DESCRIPTION | DIMENSIONS | COLOR | |||
|---|---|---|---|---|---|---|
| A - LENGTH | B - WIDTH | C - HEIGHT | ||||

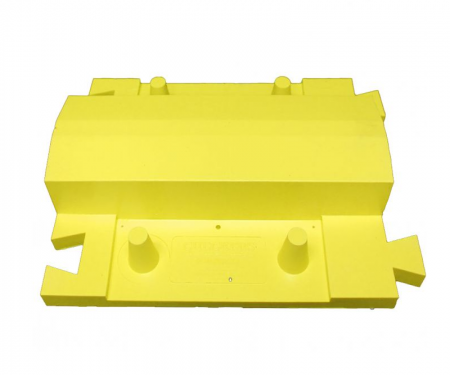

| UHB3035T | Tunnel Only for up to 3.5 inch Lines | 6.5" (166 mm) | 16" (406 mm) | 4.63" (118 mm) | Yellow | |

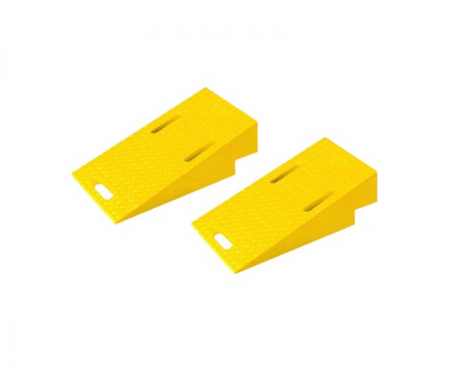

| UHB3035R | Ramps Only (pair) for 3.5 inch Tunnel | 16 in (406 mm) | 16" (406 mm) | 4.63" (118 mm) | Yellow | |

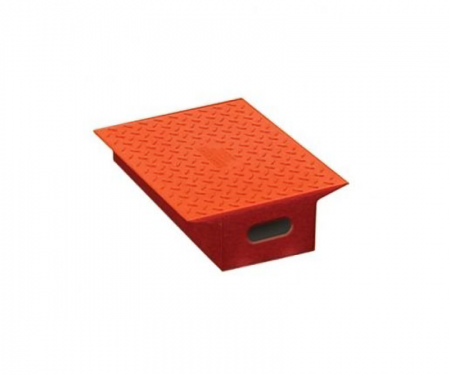

| UHB3035TC | Tunnel Connector Only for 3.5 inch Tunnel | 7.88" (201 mm) | 16" (406 mm) | 4.63" (118 mm) | Orange | |
| UHB4045T | Tunnel Only for up to 4.5 inch Lines | 7.75" (198 mm) | 16" (406 mm) | 5.5" (118 mm) | Yellow | |
| UHB4045R | Ramps Only (pair) for 4.5 inch Tunnel | 18.25" (466 mm) | 16" (406 mm) | 5.5" (118 mm) | Yellow | |
| UHB4045TC | Tunnel Connector Only for 4.5 inch Tunnel | 7.88" (201 mm) | 16" (406 mm) | 5.5" (118 mm) | Orange | |
| UHB5060T | Tunnel Only for up to 6.5 inch Lines | 9.13" (233 mm) | 16" (406 mm) | 8.13" (208 mm) | Yellow | |
| UHB5060R | Ramps Only (pair) for 6.5 inch Tunnel | 25.5" (651 mm) | 16" (406 mm) | 8.13" (208 mm) | Yellow | |
| UHB5060TC | Tunnel Connector Only for 6.5 inch Tunnel | 7.88" (201 mm) | 16" (406 mm) | 8.13" (208 mm) | Orange | |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
Diamond Back® Hose Protector Ramps provide protection for valuable cable and hose lines while ensuring a safer method of passage got vehicles. The hose protection ramps replace wooden and metal fabricated ramps and can be used to protect lines up to 6.5 inches in diameter. High density, all-weather polyurethane construction is protected from damage by physical pressure and reduces cable and hose maintenance and replacement costs. The lightweight, modular design of interlocking 16 inch wide sections provides multi-length flexibility. Diamond Back® Hose Bridge Systems are intended for temporary installations only.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| PART # | DESCRIPTION | DIMENSIONS | COLOR | |||
|---|---|---|---|---|---|---|
| A - LENGTH | B - WIDTH | C - HEIGHT | ||||
| UHB3035T | Tunnel Only for up to 3.5 inch Lines | 6.5" (166 mm) | 16" (406 mm) | 4.63" (118 mm) | Yellow | |
| UHB3035R | Ramps Only (pair) for 3.5 inch Tunnel | 16 in (406 mm) | 16" (406 mm) | 4.63" (118 mm) | Yellow | |
| UHB3035TC | Tunnel Connector Only for 3.5 inch Tunnel | 7.88" (201 mm) | 16" (406 mm) | 4.63" (118 mm) | Orange | |
| UHB4045T | Tunnel Only for up to 4.5 inch Lines | 7.75" (198 mm) | 16" (406 mm) | 5.5" (118 mm) | Yellow | |
| UHB4045R | Ramps Only (pair) for 4.5 inch Tunnel | 18.25" (466 mm) | 16" (406 mm) | 5.5" (118 mm) | Yellow | |
| UHB4045TC | Tunnel Connector Only for 4.5 inch Tunnel | 7.88" (201 mm) | 16" (406 mm) | 5.5" (118 mm) | Orange | |
| UHB5060T | Tunnel Only for up to 6.5 inch Lines | 9.13" (233 mm) | 16" (406 mm) | 8.13" (208 mm) | Yellow | |
| UHB5060R | Ramps Only (pair) for 6.5 inch Tunnel | 25.5" (651 mm) | 16" (406 mm) | 8.13" (208 mm) | Yellow | |
| UHB5060TC | Tunnel Connector Only for 6.5 inch Tunnel | 7.88" (201 mm) | 16" (406 mm) | 8.13" (208 mm) | Orange | |
