Techflex® Flexo® Chrome Braided Cable Sleeving
The Look & Appeal Of Stainless Steel Without The Hassle
0.0 / 5
Techflex® Chrome Braided Sleeving Features
- Resists Common Chemicals & Solvents
- Expands Up To 150%
- Loose Braid Allows Application to Show Through
- Conductive Mylar for Shielding Applications
- Cuts Easily With Hot Knife
- Temperature Range: -94° to 257°F (-70° to 125°C.)
- Halogen Free - RoHS Compliant
- Melt Temp: 482°F /250°C.

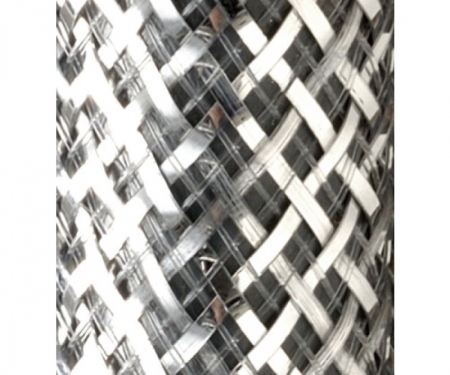

Flexo Chrome heavy duty expandable metallized mylar sleeve is ideal for dressing up any application with the look of braided stainless steel. Chrome braided sleeving has a more open look, with transparent PET braided together with the metallic strands to create an attractive glimmer when light strikes it and allows the color of the application to come through for a special effect. For more complete coverage and a different visual effect, take a look at our full coverage chrome XC. Made with full slit heavy duty Mylar, Flexo Chrome will provide years of attractive hose or wire covering
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Nominal Size | Product Part # | Expansion Range | Standard Spool Put-Ups | Colors | Lbs/ 100' | ||
| Min. | Max. | Bulk Spool | Shop Spool | ||||
| 1/4" 3/8" 1/2" | CHN0.25SV CHN0.38SV CHN0.50SV | 3/16" 1/4" 3/8" | 1/2" 5/8" 3/4" | 500' 250' 250' | 125' 100' 80' | SV SV SV | 0.33 0.39 0.47 |
| Physical Properties | |
| Monofilament Thickness (ASTM D-204) | .010 |
| Flammability Rating | N/A |
| Recommended Cutting | Hot Knife |
| Colors | 1 |
| Wall Thickness | .025 |
| Tensile Strength - Yarn (ASTM D-2265) lbs. | N/A |
| Abrasion Resistance | Medium |
| Specific Gravity | 1.3 |
| Chemical Resistance 1=No Effect 2=Little Effect 3=Affected 4=More Affected 5=Severely Affected | |
| Aromatic Solvents | 2 |
| Alipahtic Solvents | 1 |
| Chlorinated Solvents | 3 |
| Weak Bases | 1 |
| Strong Bases | 3 |
| Salt Water (O-S-1926) | 1 |
| Hydraulic Fluid (MIL-H-5606) | 1 |
| Lubricating Oil (MIL-A-8243) | 1 |
| De-Icing Fluid (MIL-A-8243) | 1 |
| Strong Acids | 3 |
| Strong Oxidants | 2 |
| Esters/Ketones | 1 |
| UV Light | 1 |
| Petroleum | 1 |
| Fungus (ASTM G-21) | 1 |
| Salts | 1 |
| Hard Vacuum Data (ASTM E-595 at 10-5 torr) | |
| TML | .19 |
| CVCM | .00 |
| WVR | .16 |
| Smoke D-Max (ASTM E-662) | N/A |
| Outgassing | Medium |
| Oxygen Index (ASTM D-2863) | 21 |
| Operating Temperatures | |
| Minimum Continuous | -94°F/-70°C |
| Maximum Continuous (MIL-I-23053) | 257°F/125°C |
| Melt (ASTM D-2117) | 482°F/250°C |
| Other Information | |
| Halogen Free | Yes |
| RoHS | Yes |
| UL/CSA | No |
| SVHC | None |
