Techflex® Braided Carbon Fiber Sleeving

Stronger & Lighter Than Virtually Any Other Sleeving Material Types

0.0 / 5

(0)

Carbon Fiber Braided Sleeving Features

  • Maximum Continuous Operating Temperature of 419ºF
  • Lighter Than Virtually All Other Sleeving
  • Ideal for Strong Lightweight Tubular Structures
  • Perfect When You Need Coverage, Strength & Can't Afford to Add Much Weight
  • Cuts Easily with Scissors
  • Insulates Delicate Wires & Components
  • Made From Polyacrylonitrile (PAN)
  • Non-Flammable
  • UV Resistant
See More Technical Specifications

Inside Diameters Are Measured as Round Not Flat

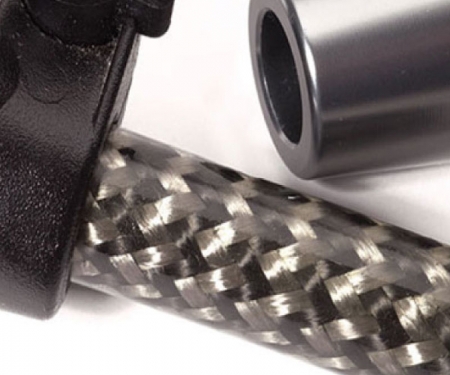

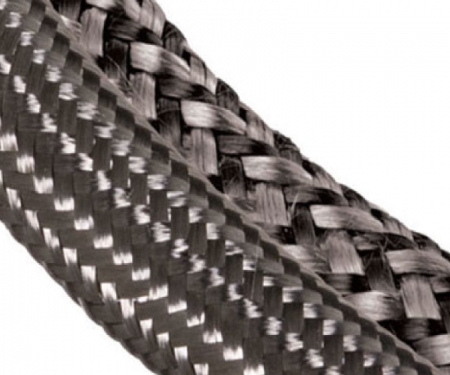

Carbon fiber braided sleeving provides a strong, biaxial carbon fiber matrix for stiff, lightweight tubular structures up to 3” in diameter without seams or overlap. The tightly braided thick flexible sleeving will form itself to accommodate elliptical or asymmetrical profiles and provide the full coverage required for radial stability and torsional strength. Fabricators know that resin-coated carbon fiber structures are stronger and lighter than virtually any other construction types. Carbon Fiber construction techniques are appearing in everything from state of the art military and aerospace airframes to hockey sticks, fishing rods and model cars. Carbon Fiber constructions can be cut, drilled, sanded and tooled with commonly available power or hand tools. Carbon Fiber Biaxial sleeves can be painted or left with the braid structure exposed.

Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760

Nominal
Size
Product
Part #
Wall Thick Expansion Range Standard Spool
Put-Ups
Lbs/
100'
Min. Max. Bulk Shop
CARBON LIGHT
1/4"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
CAL0.25
CAL0.50
CAL0.75
CAL1.00
CAL1.25
CAL1.50
CAL2.00
.013"
.013"
.013"
.013"
.013"
.013"
.013"
1/8"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
5/16"
5/8"
7/8"
1 1/16"
1 1/2"
1 3/4"
2 3/16"
500'
250'
250'
200'
125'
100'
100'
100'
50'
50'
50'
25'
25'
25'
0.38
0.75
1.21
1.51
1.81
2.26
2.72



Physical Properties
Recommended Cutting Scissor
Colors 1
Wall Thickness .013 - .030
Abrasion Resistance Medium
Specific Gravity 1.75 - 1.85



Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .00
WVR .14
Outgassing Medium
Oxygen Index (ASTM D-2863) 21



Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Esters/Ketones 1
UV Light 1



Other Information
UL/CSA No
