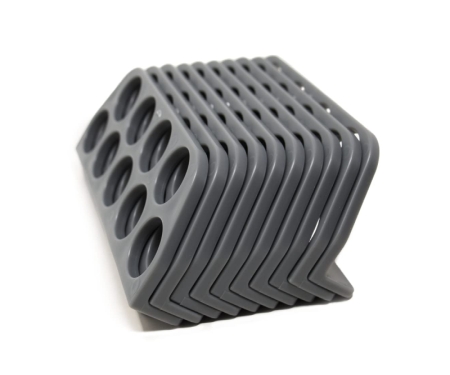

Cable Chase - Wire Support Bracket
Screw-On Multi-Hole Cable Bracket | Reduce Friction & Stress On Wires
0.0 / 5
Cable Chase - Wire Support Bracket Features
- Proudly Made In USA

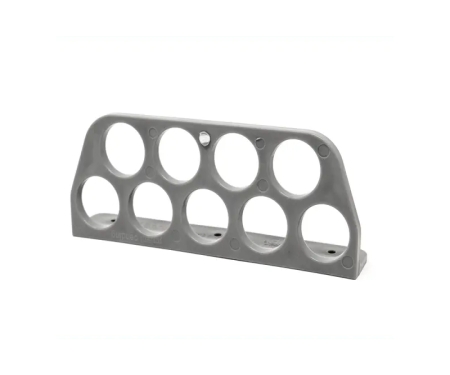

- Hole Diameter: 1”
- Main Body: 2-1/2” x 6-3/8”
- Plate: 1-1/8” x 6-3/8”
- Patented design
- Accepted by IEAI
- Follows the same guidelines as typical wire fill calculation
- Leaves room for future expansion
- Maximum distance between each CC under floor joists is 16″ (when using under floor joists, the maximum distance, on one side from any wall, joist, pipe or ductwork is 12″)
- Maximum distance between each CC along floor joists is 30″
- Maximum distance between each CC above ceiling joists is 24″
- ETL Listed #5016895

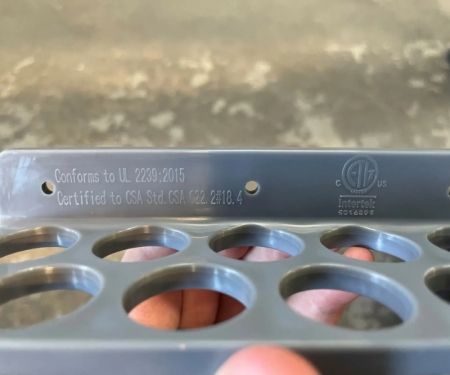

- Conforms to UL STD 2239
- Certified to CSA STD C22.2 No. 18.4
- Wire fill per hole:
- No more than (3) of 14-2, 14-3, 12-2, 12-3 romex
- No more than (2) of 10-2, 10-3, 8-2, 6-2 romex
- No more than (1) of 8-3, 6-3 romex and any SER up to #2.
- Unlimited low voltage, data, phone, cable

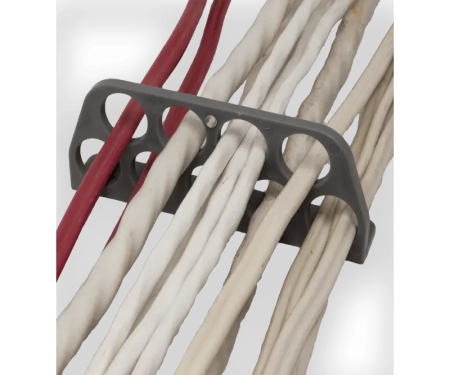

The Cable Chase is designed to provide a straight, clean path for wires with no obstructions. The brackets allow you to greatly reduce friction and stress on wires being pulled through the holes due to the hole design.
Using the Cable Chase instead of drilling holes will greatly reduce the damage to floor joists, LVL’s and manufactured wood. It will also provide less opportunity for the wire to become damaged because of crookedly drilled holes, sharp wooden edges or wooden splinters.
The easiest and safest way to route wire and cable. Reduces labor, equipment and is expandable upon in the future.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
- Hole Diameter: 1”
- Main Body: 2-1/2” x 6-3/8”
- Plate: 1-1/8” x 6-3/8”
- Wire fill per hole:
- No more than (3) of 14-2, 14-3, 12-2, 12-3 romex
- No more than (2) of 10-2, 10-3, 8-2, 6-2 romex
- No more than (1) of 8-3, 6-3 romex and any SER up to #2.
- Unlimited low voltage, data, phone, cable
