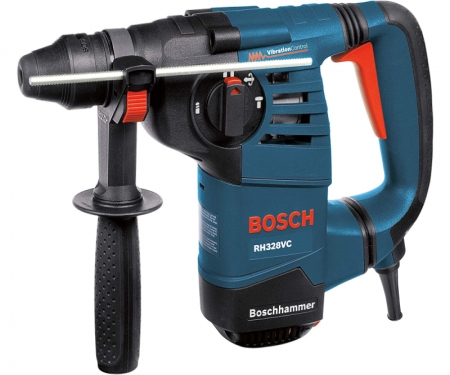

BOSCH® SDS-plus® 1-1/8 In. Rotary Hammer - RH328VC
SDS-plus® rotary hammer, works harder, lasts longer, & vibrates less
0.0 / 5
BOSCH® SDS-plus® 1-1/8 In. Rotary Hammer - RH328VC

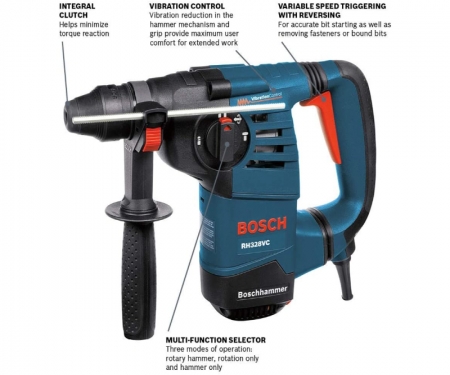

- Powerful 8.0-amp motor – drives 2.6 Ft.-Lbs. of impact energy for professional results
- Vibration Control in the hammer mechanism and the grip area – maximum user comfort for extended periods of work
- SDS-plus® shank system — for use with bits up to 1-1/8 In. diameter
- Multifunction selector — rotary hammer, rotation-only and hammer-only mode
- Vario-Lock system with reversing — for accurate bit starting as well as removing fasteners or bound bits
- Integral clutch — disengages torque transmission if the bit gets into a bind situation
- Variable-speed trigger – for better operator control and accurate bit starting
- Bosch impact system – maximizes impact force and minimizes vibration
- 360° rotation auxiliary handle – for convenient operator control
- First-rate power-to-size ratio – hammer weighs only 7.7 Lbs.
Bosch is the home of the world's best selling hammers. Bosch hammers have reduced vibration without any reduction in performance. The SDS-plus® rotary hammer, works harder, lasts longer, and vibrates less. It has the fastest chiseling and drilling in its class. In. addition, it provides the longest life, with lowest vibration levels.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL DATA
| Amperage | 8.0 |
| Chuck Design | Keyless |
| Chuck Size | 1-1/8 in |
| Height | 9.0" |
| Impact Energy/EPTA (ft. lbs.) | 2.4 Ft.-Lbs. EPTA |
| Length | 12.5" |
| Material | Metal, Plastic |
| Max. Hole Dia. - Core Bit | 3-1/8" |
| Max. Hole Diameter in Concrete | 1-1/8" |
| No Load BPM | 0-4,000 |
| No Load RPM | 0-900 |
| Rating | 120V |
| Voltage | 120V |
| Weight | 7.7lb |
| Width | 3.0" |
| Works With | Dust Extraction/Collection Hoods Right Angle Attachment Keyless 3-Jaw Chuck with SDS-plus® Shank |
| Includes | (1) RH328VC SDS-plus® 1-1/8 In. Rotary Hammer, (1) Auxiliary Handle, (1) Depth Gauge, (1) Carrying Case |
