BOSCH® 2.3 HP Electronic Modular Router System - MRC23EVSK
Advanced set-up that provides a fixed base & a plunge base for router
0.0 / 5
BOSCH® 2.3 HP Electronic Modular Router System - MRC23EVSK Features
- Trigger-control system – trigger power switch located in handle for enhanced control
- Powerful 15 Amp motor – produces 10,000 to 25,000 RPM and 2.3 hp
- Precision-centering design – makes it easy to keep bit on cutline
- Afterlock plunge-base depth adjustment – easy, precise adjustments at any plunge setting
- Versatile fixed-base depth adjustment – features 1-5/8 In. continuous microfine adjustment range
- Above-table depth adjustment when fixed base is installed in router table
- Constant Response circuitry – maintains constant speed under load
- Soft-start function – reduces start-up torque
- Always-on LED lighting – for enhanced visibility in bit area
- Two-stage quick clamp system – for fast tool-free conversion
- Variable speed dial – for matching speed to workpiece and task
- Contoured soft grip handles – for enhanced control and comfort
- Fixed base has threaded holes for mounting to router table positioned in common three-hole pattern
- Cord swivel – for added mobility
- Rugged carrying case has compartments for all included items
- Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides

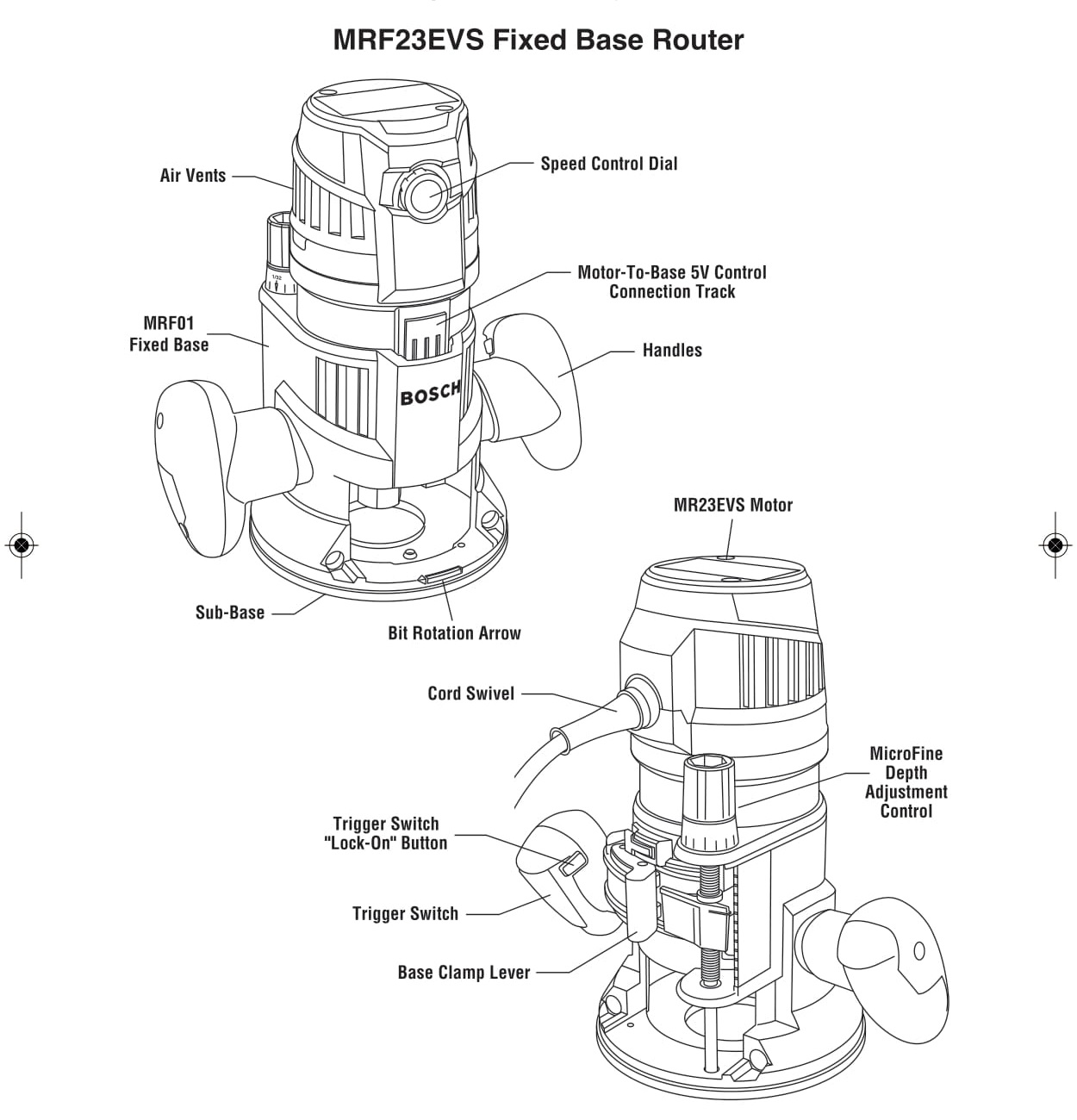

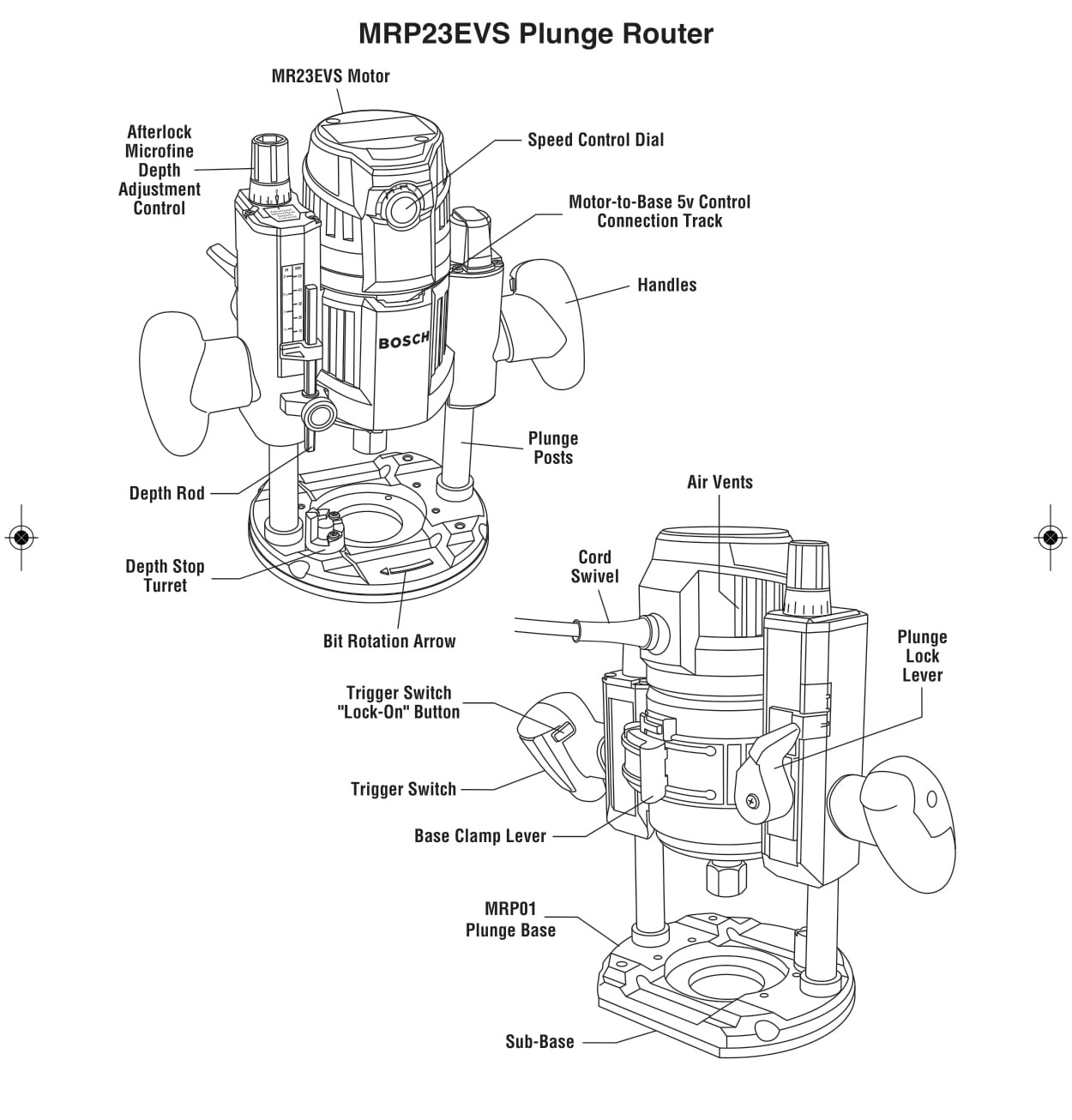

The Bosch MRC23EVSK 2.3 HP Electronic Modular Router System is an advanced set-up that provides a fixed base and a plunge base for the MR23EVS router. This system allows for outstanding operator control, with the trigger-control system that has a power switch in both the plunge-base's and the fixed-base's handle. The plunge base's Afterlock microfine bit-depth adjustment at any plunge setting allows for precision, with an adjustable turret stop makes it easy to set any cumulative depth. With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results. The fixed base has microfine bit-depth adjustment, with a continuous depth range of 1-5/8 in., allowing for accurate and fast changes, while its precision-centering design allows the bit to be centered with the sub-base or optional template guides. The router has a 15 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to match the speed to the material. Constant Response circuitry delivers a constant speed throughout the cut. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL DATA
| Amperage | 15.0 |
| Base Diameter | 6" Fixed/ 7" Plunge |
| Case Type | Hard plastic |
| Collet Capacity | 1/4", 3/8", 1/2", 8 mm |
| Dust Collection | No |
| Fixed-Base Depth Range | 1-5/8" |
| Height | 9.5" |
| Length | 6.75" |
| No Load RPM | 10,000-25,000 |
| Plunge Depth | 3" (75mm) |
| Rating | 120V AC |
| Subbase Opening | 2" |
| Voltage | 120V |
| Weight | 12.6lb |
| Width | 12.6" |
| Works With | Router Tables Router Guide Template Guide System Centering Device for Subbases and Attached Template Guides Dust Collection Attachments |
| Includes | Motor, Fixed Base (MRF01), Plunge base (MRP01), 1/4" Self-Releasing Collet Chuck - 2 610 906 283, 1/2" Self-Releasing Collet Chuck - 2 610 906 284, 16mm Shaft Wrench - 2 610 991 388, 24mm Collet Nut Wrench - 2 610 992 417, T-Handle Hex Height Adjustment Wrench - 2610923193, Carrying Case - 2 610 004 484, Pack of 3 M4 Screws for table mounting - 2610005966 |
