BOSCH® 7.2 Amp Barrel-Grip Jig Saw Kit - JS572EBK
Provides a tool with an upgraded upfront soft-grip area
0.0 / 5
BOSCH® 7.2 Amp Barrel-Grip Jig Saw Kit Manual

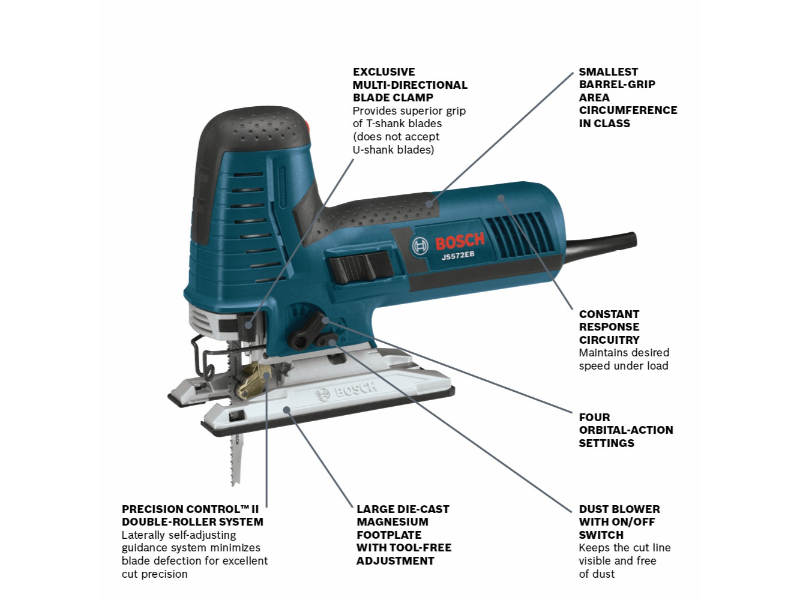

- Upgraded soft-grip area upfront – provides additional user comfort
- Smallest barrel-grip area circumference in class – for maximum user control
- Precision Control II™ double-roller system – minimizes blade deflection for excellent cut precision
- Bright LED lighting with on/off switch – for enhanced visibility of cutting area
- Large die-cast aluminum footplate with tool-free adjustment – fast bevel adjustments
- Powerful jig saw with 7.2 Amp rating – easily handles heavy loads
- Variable-speed control – includes a dial for setting operating speed
- Constant Response circuitry – for consistent performance under load
- Multi-directional blade clamp – superior grip of T-shank blades (does not accept U-shank blades)
- One-Touch blade-change system – fast blade insertion and ejection lever; no need to touch hot blade
- Aluminum gearbox with insulated cover – provides outstanding tool durability
- Four orbital-action settings – varied blade strokes
- Fully counterbalanced low-vibration mechanism – for smooth operation
- Dust blower with on/off switch – keeps the cut line visible and free of dust
The Bosch JS572EBK Barrel-Grip Jig Saw Kit provides a tool with an upgraded upfront soft-grip area; it has the smallest circumference in its class. Thanks to the innovative Precision Control™ II double-roller system, it has outstanding cut accuracy, which minimizes blade deflection. Woodworkers and kitchen and bath installers are among the many user groups will appreciate the best-in-class 7.2 Amp motor and variable-speed control. Built with an aluminum gearbox with an insulated cover, this jig saw comes with a counterbalancing mechanism for low vibration and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate with tool-free adjustment for fast and easy bevel adjustments. It also has LED lighting and a dust blower for max cut-line visibility and a toolless blade-change system. The multidirectional blade clamp provides superior grip of T-shank blades. (Bosch jig saws do not accept U-shank blades.)
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
TECHNICAL DATA
| Amperage | 7.2 |
| Bevel Angle Range | 45° |
| Case Type | Heavy-duty plastic |
| Cutting Capacity- Soft Wood | 5-1/2" |
| Cutting Capacity-Aluminum | 0.875 |
| Cutting Capacity-Mild Steel | 0.375 |
| Dust Blower | Yes |
| Dust Collection | No |
| Height | 7.2" |
| Hertz | 60 |
| Jig Saw Blade Type | Jig Saw T-Shank |
| Length | 9.9375" |
| Max. Bevel Capacity (°) | 45.0 |
| Max. Bevel Cut | 45° |
| No Load SPM | 800-3,000 |
| Rating | 120V |
| Stroke Length | 1.0 |
| Voltage | 120V |
| Weight | 4.85lb |
| Width | 4.0" |
| Works With | Jig Saw Guide Dust Collection Attachment Steel Overshoe for Footplate Anti-Splinter Insert |
| Includes | (1) JS572EB 7.2 Amp Barrel-Grip Jig Saw, (1) Plastic Shoe (2601099225), (1) Anti-Splinter Insert (JA1013), (3) Assorted T-Shank Jig Saw Blades, (1) Carrying Case |
