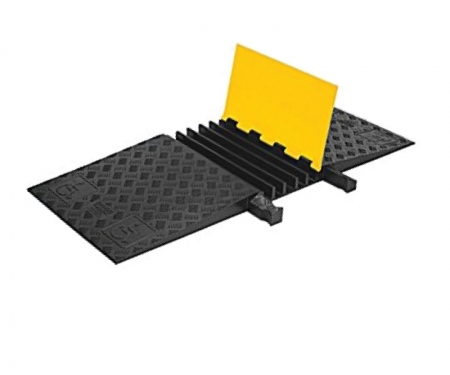

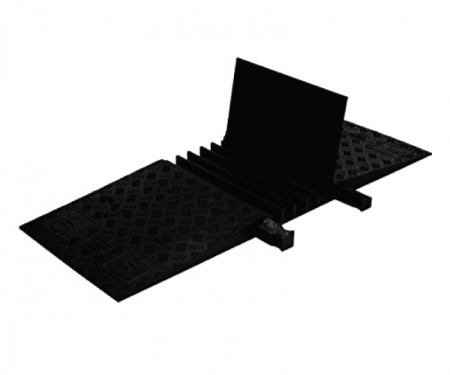

Yellow Jacket® 5 Channel ADA Cable Ramps
1.325” H Channel Size | Low Gradient | 3 Color Options
0.0 / 5
Yellow Jacket® 5 Channel ADA Cable Ramps Features
- Max Weight Capacity: 21,000 Lbs Per Axle
- Channel Size: 1.339” W x 1.325” H
- Length: 18” x Width: 50” x Height: 1.875”
- Protects Cables & Hoses Up to 1.325”
- ADA/DDA Accessibility Ramps Built In
- Interconnects With Standard 5 Channel Yellow Jacket Protector
- Dog Bone Connectors to Extend to Any Length
- Reinforced Hinged Lid
Compatible With Standard Yellow Jacket 5 Channel Protector.

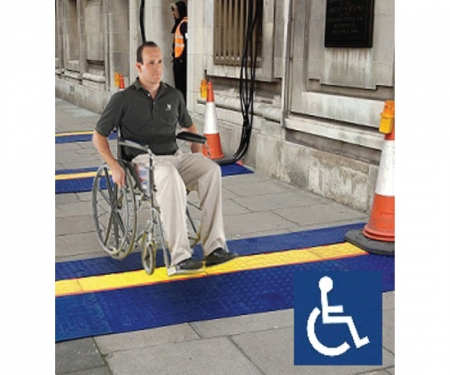

YELLOW JACKET® 5-CHANNEL ADA CABLE PROTECTOR has built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors. Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Yellow Jacket cable protector. This modular interlocking design is available in lightweight 18″ sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Load Capacity | Length | Width | Height | Channel Width | Channel Height | Weight |
| 10500 lb/Tire(4763 kg) 21000 lb/Axle (9526 kg) | 18” (45.7cm) | 50” (127.0cm) | 1.87” (4.76cm) | 1.339” (3.4cm) | 1.325” (3.37cm) | 21lbs (9.6kg) |
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must be in the same condition that you received it, and in its original packaging. You’ll also need the receipt or proof of purchase.
To start a return, you can fill out the ORDER RETURN FORM HERE. If your return is accepted, we’ll send you the instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted.
Damages and issues
Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.
Exceptions / non-returnable items
Certain types of items cannot be returned, like custom products (such as special orders or personalized items). Please get in touch if you have questions or concerns about your specific item. Certain Items will Carry restocking fees for us to take back into our stock, This is due to items being made to order or for being an oversized item.
Exchanges
The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item.
Refunds
We will notify you once we’ve received and inspected your return, and let you know if the refund was approved or not. If approved, you’ll be automatically refunded on your original payment method. Please remember it can take some time for your bank or credit card company to process and post the refund too.
Have a question that is not answered here? Please go to our Contact Us page and submit your question to us.
Looking for a quotation ? We would be happy to help by providing a quick response, inventory status, and Volume Level pricing, when available. Please fill out the form below and a representative will be in touch with you within hours to one business day to answer any questions and quote your request.
Product Details
YELLOW JACKET® 5-CHANNEL ADA CABLE PROTECTOR has built-in ADA accessibility ramps to provide a safe crossing for vehicle and pedestrian traffic while protecting valuable electrical cables and hose lines. Because the ramps are built-in, there is no need for separate connectors. Another unique feature of this product is that it interconnects directly to a 5-channel standard ramp Yellow Jacket cable protector. This modular interlocking design is available in lightweight 18″ sections and it includes a recessed carrying handle on the underside of the protector. Ideal for use in amusement parks, entertainment venues, sporting events, and most public, commercial, industrial, construction, and utility applications.
Product Specifications
Are we missing the specification you need? Please go to our Contact Us page and submit your question to us, or call 1-877-284-7760
| Load Capacity | Length | Width | Height | Channel Width | Channel Height | Weight |
| 10500 lb/Tire(4763 kg) 21000 lb/Axle (9526 kg) | 18” (45.7cm) | 50” (127.0cm) | 1.87” (4.76cm) | 1.339” (3.4cm) | 1.325” (3.37cm) | 21lbs (9.6kg) |
